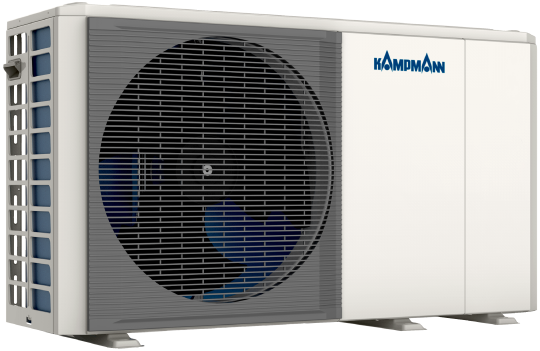

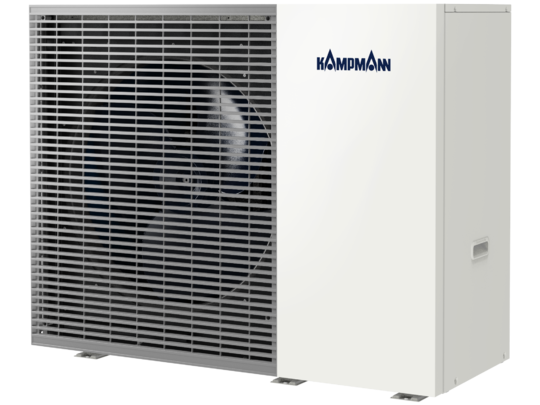

KaClima S
Climate solution for 4 - 30 kW output range.
Overview
KaClima units are designed to handle energy more efficiently, thereby reducing energy costs. They meet the requirements of EU Directive 811/2013 and are classified as energy efficiency classes A++ to A+++, thereby guaranteeing extremely economical operation. This helps to reduce power bills and protect the environment.
The space-saving arrangement of the components provides for an extremely compact design with minimal unit dimensions. Yet there is no need to forgo features or output.
The heating or cooling function adapts automatically to the outside temperatures measured and regulates its output to keep the room comfortably warm or cool. This helps to achieve an ideal room temperature. There is no need for you to do anything – everything happens automatically.
- Continuously variable output adjustment of 30 to 100% thanks to the fan speed-controlled inverter-compressor
- Continuously variable EC fan
- Integrated Modbus RTU interface
- Water outlet temperature control for efficient heat or cooling distribution
- Outside temperature-based supply temperature, adjustable control (heating curve with heat pump function or cooling curve as a chiller)
- Noise-reduced operation can be adjusted between different stages
- Separates the cooling circuit from the water/glycol circuit
- Provides for the efficient transfer of heat or cooling energy for optimum energy efficiency
- High heat transfer capacity
- Stainless steel (AISI 316) with low refrigerant content and a large exchange surface
- Factory-fitted efficient circulation pump, user interface, cascade control, safety valve, expansion vessel and flow monitor
- Dirt trap is supplied loose for installation on site
- Extensive additional accessories can be selected
- On-demand defrost control ensures proper operation and efficiency
- Hydrophilic "Blue Fin" aluminium slats facilitate the removal of condensate and improve defrosting
- Any ice that is formed is reliably removed
- A modular construction in a cascade is possible with up to six KaClima S units
