Katherm HK E

Article no.: 14332631114500

4,116.00 EUR

no VAT.

Details
Description
Technical data
Acoustic data
EPD
Dimensions
Accessories
BIM
Downloads

basic unit

Kampmann Katherm HK trench heater, ready-to-install floor trench, either for installation in raised or screeded floors, convector-based for heating and cooling with tangential fan convection. Measurement of the heat output characteristic curve according to DIN EN 60335, Part 1, Parts 2-30 and 40. Hygiene-certified in line with VDI 6022.
Trench chassis made of sendzimir galvanised sheet steel, coated in graphite gray on both sides. Height-adjustable on the sides using mounting aids, with impact sound insulation; features a sturdy height-adjustment mechanism with impact sound insulation, for secure mounting of the duct. With pre-punched openings for water supply and return as well as electrical connections, on the room side. Trench chassis prepared for condensate pump mounting kit. Segmented sheets serving as both finger protection for the tangential fan and a mounting frame for the filter fleece, air-guidance sheet, grate support, and cross-brace for reinforcing the duct. Center wall serving as both an air-guidance sheet and a mounting plate for the tangential fan.
Life Cycle Assessment (LCA) data is published in the form of an EPD according to EN 15804 and is available to download from the International EPD System. Registered in the building products platform DGNB Navigator. GWP (phase A1-A3), kg CO2 Äq.1,51E+02. Further calculations possible online.

Heat exchanger

High-performance 2-pipe water heat exchanger for heating and cooling, with an integrated, steplessly adjustable electric heating element, for additional, individually adjustable heating in electric mode as a functional 4-pipe system. Made of circular pipes with aluminum fins and Eurocone valve connections, coated in graphite gray. With anti-rotation device. Collector with integral bleed option.

System		2-pipe electric heating element
Max. operating pressure	bar	10
Max. entering water temperature	°C	95
Min. entering water temperature	°C	5
Max. air inlet temp.	°C	40
Max. glycol volume	%	50

Condensate tray

Condensate tray has a flow-optimised design, for the simultaneous discharge of condensate and air guidance below the convector. Condensate tray designed as an independent component that can be removed for cleaning and maintenance in accordance with VDI 6022.

Fan

Tangential fan with safety guard. Energy-saving EC fan with 0-10 V input for continuously variable speed control with sound-optimised commutation electronics. Valve controlled via 24 V DC control contacts. All rotating parts have low-noise and maintenance-free bearings. Motor monitoring with internal fault processing.
Even flow through the convector, low power consumption for effective, energy-saving consumption, also sound-optimised for low sound values. Easily removable for cleaning and maintenance due to combined coupling/ball joint system with simultaneous acoustic decoupling. With sound-optimised commutation electronics Factory-wired ready for connection. Valve controlled via 24 V DC control contacts.

Control

230 V electromechanical control version
Electrical connection unit factory-fitted and wired in the unit. Connection options for on-site signals or Kampmann room thermostats for control of the fan, actuator and electric heating element, including 230 V/24 V power supply unit. Potential-free collective fault signal wired to a terminal. Fan and electric heating element can be controlled continuously variably. Switch-over between summer (CHW) and winter mode (LPHW) via on-site contact.
Functions:

Summer mode: cooling with CHW or heating by electric heating element
Winter mode: heating with LPHW
Integrated safety switch, consisting of:
Safety: 2 temperature limiters with locking shutdown, factory wired.

Grille

With frame insert profile, colour-coordinated to the grille. With protective installation cover and frame trim. With cover panels for connection areas. With double T-profile grille. Connections made of corrosion-proof steel springs with matching spacers.

Configuration

Grille design		Roll-up grille
Grille finish		Aluminium, natural anodised
Connection		Eurocone, single-sided, heating/cooling connection side on the left
Length	mm	2500
Width	mm	320
Height	mm	130
Bar height	mm	18
Bar depth	mm	5
Bar spacing	mm	12
Free area, approx.	%	70
Weight	kg	49.4

Details
Description
Technical data
Acoustic data
EPD
Dimensions
Accessories
BIM
Downloads

basic unit

Heat exchanger

System		2-pipe electric heating element
Max. operating pressure	bar	10
Max. entering water temperature	°C	95
Min. entering water temperature	°C	5
Max. air inlet temp.	°C	40
Max. glycol volume	%	50

Condensate tray

Fan

Control

Summer mode: cooling with CHW or heating by electric heating element
Winter mode: heating with LPHW
Integrated safety switch, consisting of:
Safety: 2 temperature limiters with locking shutdown, factory wired.

Grille

Configuration

Grille design		Roll-up grille
Grille finish		Aluminium, natural anodised
Connection		Eurocone, single-sided, heating/cooling connection side on the left
Length	mm	2500
Width	mm	320
Height	mm	130
Bar height	mm	18
Bar depth	mm	5
Bar spacing	mm	12
Free area, approx.	%	70
Weight	kg	49.4

We consider the environmental impact of our products throughout their entire life cycle! The result is Environmental Product Declarations (EPDs). The EPDs can be easily submitted to all common building sustainability certification systems, such as DGNB, BREEAM, or LEED, and are available in the download area or directly here via the download button. In addition, the product is registered on the DGNB Navigator building products platform.

Basic data

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
GWP - Total Climate change - total	kg CO2 eq	1.43E+02	5.55E+00	2.36E+00	1.51E+02	9.20E+00	3.82E+00	3.82E-01	1.07E-01	2.08E+00	5.41E+02	0.00E+00	2.60E-01	6.16E+00	1.30E-01	-1.13E+02
GWP - fossil Climate change - fossil	kg CO2 eq	1.42E+02	5.55E+00	4.86E+00	1.53E+02	9.20E+00	7.76E-01	3.73E-01	8.40E-02	2.06E+00	5.41E+02	0.00E+00	2.60E-01	6.16E+00	1.30E-01	-1.11E+02
GWP - Biogenic Climate change - biogenic	kg CO2 eq	-1.38E-01	0.00E+00	-2.51E+00	-2.65E+00	1.51E-03	3.04E+00	1.88E-03	1.73E-04	6.63E-03	3.25E-01	0.00E+00	8.73E-05	1.44E-04	3.68E-04	-2.97E-01
GWP - Luluc Climate change - land use and land use change	kg CO2 eq	8.97E-01	2.68E-03	1.16E-02	9.11E-01	1.75E-03	5.33E-04	7.13E-03	2.25E-02	9.53E-03	6.40E-01	0.00E+00	1.27E-04	9.41E-05	9.46E-05	-1.23E+00
ODP Ozone Depletion	kg CFC-11 eq	1.11E-06	1.26E-07	4.71E-08	1.29E-06	1.60E-07	7.76E-09	1.25E-08	2.88E-09	2.83E-08	2.76E-05	0.00E+00	5.92E-09	2.60E-08	3.07E-09	-2.95E-06
AP Acidification	mol H+ eq	2.14E+00	1.38E-02	1.17E-02	2.17E+00	3.99E-02	3.26E-03	2.06E-03	6.46E-04	9.01E-02	1.38E+00	0.00E+00	6.44E-04	1.04E-03	9.25E-04	-1.55E+00
EP - fresh water Eutrophication aquatic freshwater	kg P eq	1.74E-01	4.06E-04	6.83E-03	1.81E-01	2.78E-04	2.43E-04	2.95E-04	2.88E-05	7.17E-03	5.36E-02	0.00E+00	1.92E-05	2.76E-05	3.40E-05	-1.30E-01
EP - marine Eutrophication aquatic marine	kg P eq	1.91E-01	3.80E-03	3.88E-03	1.99E-01	1.53E-02	7.38E-04	4.39E-04	1.47E-04	5.33E-03	3.82E-01	0.00E+00	1.76E-04	4.29E-04	3.47E-04	-1.38E-01
EP - country Eutrophication terrestrial	mol N eq	2.20E+00	3.91E-02	3.03E-02	2.27E+00	1.64E-01	6.80E-03	3.56E-03	9.63E-04	6.87E-02	4.34E+00	0.00E+00	1.80E-03	4.44E-03	3.70E-03	-1.56E+00
POCP Photochemical ozone formation	kg NMVOC	8.43E-01	2.25E-02	9.29E-03	8.74E-01	5.50E-02	2.85E-03	1.10E-03	3.80E-04	2.05E-02	1.26E+00	0.00E+00	1.05E-03	1.19E-03	1.25E-03	-6.23E-01
ADPE Depletion of abiotic resources - minerals and metals	kg Sb eq	1.93E-02	1.54E-05	8.60E-06	1.93E-02	8.02E-06	3.04E-06	1.53E-06	8.85E-07	1.15E-03	1.30E-03	0.00E+00	7.29E-07	4.88E-07	2.64E-07	-1.40E-02
ADPF Abiotic resource depletion - fossil fuels	MJ	1.85E+03	8.41E+01	7.36E+01	2.01E+03	1.26E+02	1.63E+01	8.02E+00	1.11E+00	2.74E+01	1.41E+04	0.00E+00	3.96E+00	1.03E+00	2.81E+00	-1.46E+03
WDP Water use	m³ depriv.	6.60E+01	3.99E-01	2.07E-01	6.67E+01	3.21E-01	3.89E-01	1.62E-01	3.30E-02	1.02E+00	2.27E+01	0.00E+00	1.89E-02	6.58E-02	1.19E-01	-2.17E+01
GWP-GHG Global Warming Potential total excl. biogenic carbon following IPCC AR5 methodology	kg CO2 eq	1.45E+02	5.57E+00	4.94E+00	1.55E+02	9.23E+00	7.79E-01	3.82E-01	1.07E-01	2.08E+00	5.41E+02	0.00E+00	2.62E-01	6.16E+00	1.31E-01	-1.13E+02
PM Particulate Matter emissions	disease inc.	1.12E-05	5.44E-07	1.17E-07	1.19E-05	2.93E-07	5.95E-08	1.15E-08	6.84E-09	2.76E-07	8.74E-06	0.00E+00	2.57E-08	7.27E-09	1.99E-08	-9.20E-06
IR Ionizing radiation, human health	kBq U-235 eq	1.04E+01	1.05E-01	1.16E+00	1.16E+01	7.67E-02	3.85E-02	1.92E-01	3.11E-03	2.50E-01	4.84E+02	0.00E+00	4.98E-03	6.91E-03	3.70E-03	-1.57E+01
ETP - FW Ecotoxicity (fresh water)	CTUe	1.45E+03	4.05E+01	1.66E+01	1.50E+03	6.13E+01	5.99E+00	2.33E+00	2.35E+00	1.22E+02	9.05E+02	0.00E+00	1.90E+00	1.36E+01	1.23E+00	-1.62E+03
HTP - C Human toxicity, cancer effects	CTUh	7.60E-07	2.45E-09	1.31E-09	7.64E-07	1.76E-09	7.50E-09	1.62E-10	5.73E-11	2.27E-08	1.44E-07	0.00E+00	1.16E-10	5.24E-10	7.27E-11	-5.59E-07
HTP - NC Human toxicity, non-cancer effects	CTUh	1.97E-05	6.02E-08	3.39E-08	1.98E-05	9.84E-08	3.52E-08	4.03E-09	1.42E-09	1.19E-06	3.25E-06	0.00E+00	2.83E-09	4.91E-09	8.14E-10	-1.57E-05
SQP Land use related impacts/Soil quality	-	1.13E+03	8.47E+01	3.51E+02	1.56E+03	4.11E+01	1.69E+00	2.18E+00	1.36E+00	2.95E+01	6.09E+03	0.00E+00	4.01E+00	3.21E-01	6.44E+00	-4.77E+02

Resource use

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
PERE Use of renewable primary energy excluding resources used as raw materials	MJ	4.66E+02	1.22E+00	7.74E+01	5.44E+02	8.56E-01	5.36E-01	1.74E+00	2.81E-01	6.02E+00	3.15E+03	0.00E+00	5.78E-02	9.01E-02	4.84E-02	-3.68E+02
PERM Use of renewable primary energy resources used as raw materials	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
PERT Total use of renewable primary energy	MJ	4.66E+02	1.22E+00	7.74E+01	5.44E+02	8.56E-01	5.36E-01	1.74E+00	2.81E-01	6.02E+00	3.15E+03	0.00E+00	5.78E-02	9.01E-02	4.84E-02	-3.68E+02
PENRE Use of non-renewable primary energy excluding resources used as raw materials	MJ	1.85E+03	8.41E+01	7.36E+01	2.01E+03	1.26E+02	1.63E+01	8.02E+00	1.13E+00	2.74E+01	1.41E+04	0.00E+00	3.96E+00	1.03E+00	2.81E+00	-1.46E+03
PENRM Use of non-renewable primary energy resources used as raw materials	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
PENRT Total use of non-renewable primary energy	MJ	1.85E+03	8.41E+01	7.36E+01	2.01E+03	1.26E+02	1.63E+01	8.02E+00	1.13E+00	2.74E+01	1.41E+04	0.00E+00	3.96E+00	1.03E+00	2.81E+00	-1.46E+03
SM Secondary material	kg	1.07E-01	0.00E+00	0.00E+00	1.07E-01	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
RSF Renewable secondary fuels	MJ	7.26E-04	0.00E+00	0.00E+00	7.26E-04	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
NRSF Non-renewable secondary fuels	MJ	4.67E-02	0.00E+00	0.00E+00	4.67E-02	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
FW Net use of fresh water	m³	1.78E+00	1.66E-02	2.87E-02	1.82E+00	1.39E-02	1.91E-02	6.32E-03	1.38E-03	6.94E-02	3.51E+00	0.00E+00	7.86E-04	5.38E-03	3.09E-03	-8.42E-01

Waste & Output Flows

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
HWD Hazardous waste disposed	kg	5.66E+00	0.00E+00	0.00E+00	5.66E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
NHWD Non-hazardous waste disposed	kg	3.68E+00	0.00E+00	1.18E+01	1.54E+01	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
RWD Radioactive waste disposed	kg	4.69E-03	0.00E+00	0.00E+00	4.69E-03	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
CRU Components for reuse	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
MFR Material for recycling	kg	1.83E-03	0.00E+00	0.00E+00	1.83E-03	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	3.52E+01	0.00E+00	0.00E+00
MER Materials for energy recovery	kg	8.05E-06	0.00E+00	0.00E+00	8.05E-06	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	2.57E+00	0.00E+00	0.00E+00
EE (Electrical) Exported energy electrical	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
EE (Thermal) Exported energy thermal	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00

Basic data

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
GWP - Total Climate change - total	kg CO2 eq	1.43E+02	5.55E+00	2.36E+00	1.51E+02	9.20E+00	3.82E+00	3.82E-01	1.07E-01	2.08E+00	5.41E+02	0.00E+00	2.60E-01	6.16E+00	1.30E-01	-1.13E+02
GWP - fossil Climate change - fossil	kg CO2 eq	1.42E+02	5.55E+00	4.86E+00	1.53E+02	9.20E+00	7.76E-01	3.73E-01	8.40E-02	2.06E+00	5.41E+02	0.00E+00	2.60E-01	6.16E+00	1.30E-01	-1.11E+02
GWP - Biogenic Climate change - biogenic	kg CO2 eq	-1.38E-01	0.00E+00	-2.51E+00	-2.65E+00	1.51E-03	3.04E+00	1.88E-03	1.73E-04	6.63E-03	3.25E-01	0.00E+00	8.73E-05	1.44E-04	3.68E-04	-2.97E-01
GWP - Luluc Climate change - land use and land use change	kg CO2 eq	8.97E-01	2.68E-03	1.16E-02	9.11E-01	1.75E-03	5.33E-04	7.13E-03	2.25E-02	9.53E-03	6.40E-01	0.00E+00	1.27E-04	9.41E-05	9.46E-05	-1.23E+00
ODP Ozone Depletion	kg CFC-11 eq	1.11E-06	1.26E-07	4.71E-08	1.29E-06	1.60E-07	7.76E-09	1.25E-08	2.88E-09	2.83E-08	2.76E-05	0.00E+00	5.92E-09	2.60E-08	3.07E-09	-2.95E-06
AP Acidification	mol H+ eq	2.14E+00	1.38E-02	1.17E-02	2.17E+00	3.99E-02	3.26E-03	2.06E-03	6.46E-04	9.01E-02	1.38E+00	0.00E+00	6.44E-04	1.04E-03	9.25E-04	-1.55E+00
EP - fresh water Eutrophication aquatic freshwater	kg P eq	1.74E-01	4.06E-04	6.83E-03	1.81E-01	2.78E-04	2.43E-04	2.95E-04	2.88E-05	7.17E-03	5.36E-02	0.00E+00	1.92E-05	2.76E-05	3.40E-05	-1.30E-01
EP - marine Eutrophication aquatic marine	kg P eq	1.91E-01	3.80E-03	3.88E-03	1.99E-01	1.53E-02	7.38E-04	4.39E-04	1.47E-04	5.33E-03	3.82E-01	0.00E+00	1.76E-04	4.29E-04	3.47E-04	-1.38E-01
EP - country Eutrophication terrestrial	mol N eq	2.20E+00	3.91E-02	3.03E-02	2.27E+00	1.64E-01	6.80E-03	3.56E-03	9.63E-04	6.87E-02	4.34E+00	0.00E+00	1.80E-03	4.44E-03	3.70E-03	-1.56E+00
POCP Photochemical ozone formation	kg NMVOC	8.43E-01	2.25E-02	9.29E-03	8.74E-01	5.50E-02	2.85E-03	1.10E-03	3.80E-04	2.05E-02	1.26E+00	0.00E+00	1.05E-03	1.19E-03	1.25E-03	-6.23E-01
ADPE Depletion of abiotic resources - minerals and metals	kg Sb eq	1.93E-02	1.54E-05	8.60E-06	1.93E-02	8.02E-06	3.04E-06	1.53E-06	8.85E-07	1.15E-03	1.30E-03	0.00E+00	7.29E-07	4.88E-07	2.64E-07	-1.40E-02
ADPF Abiotic resource depletion - fossil fuels	MJ	1.85E+03	8.41E+01	7.36E+01	2.01E+03	1.26E+02	1.63E+01	8.02E+00	1.11E+00	2.74E+01	1.41E+04	0.00E+00	3.96E+00	1.03E+00	2.81E+00	-1.46E+03
WDP Water use	m³ depriv.	6.60E+01	3.99E-01	2.07E-01	6.67E+01	3.21E-01	3.89E-01	1.62E-01	3.30E-02	1.02E+00	2.27E+01	0.00E+00	1.89E-02	6.58E-02	1.19E-01	-2.17E+01
GWP-GHG Global Warming Potential total excl. biogenic carbon following IPCC AR5 methodology	kg CO2 eq	1.45E+02	5.57E+00	4.94E+00	1.55E+02	9.23E+00	7.79E-01	3.82E-01	1.07E-01	2.08E+00	5.41E+02	0.00E+00	2.62E-01	6.16E+00	1.31E-01	-1.13E+02
PM Particulate Matter emissions	disease inc.	1.12E-05	5.44E-07	1.17E-07	1.19E-05	2.93E-07	5.95E-08	1.15E-08	6.84E-09	2.76E-07	8.74E-06	0.00E+00	2.57E-08	7.27E-09	1.99E-08	-9.20E-06
IR Ionizing radiation, human health	kBq U-235 eq	1.04E+01	1.05E-01	1.16E+00	1.16E+01	7.67E-02	3.85E-02	1.92E-01	3.11E-03	2.50E-01	4.84E+02	0.00E+00	4.98E-03	6.91E-03	3.70E-03	-1.57E+01
ETP - FW Ecotoxicity (fresh water)	CTUe	1.45E+03	4.05E+01	1.66E+01	1.50E+03	6.13E+01	5.99E+00	2.33E+00	2.35E+00	1.22E+02	9.05E+02	0.00E+00	1.90E+00	1.36E+01	1.23E+00	-1.62E+03
HTP - C Human toxicity, cancer effects	CTUh	7.60E-07	2.45E-09	1.31E-09	7.64E-07	1.76E-09	7.50E-09	1.62E-10	5.73E-11	2.27E-08	1.44E-07	0.00E+00	1.16E-10	5.24E-10	7.27E-11	-5.59E-07
HTP - NC Human toxicity, non-cancer effects	CTUh	1.97E-05	6.02E-08	3.39E-08	1.98E-05	9.84E-08	3.52E-08	4.03E-09	1.42E-09	1.19E-06	3.25E-06	0.00E+00	2.83E-09	4.91E-09	8.14E-10	-1.57E-05
SQP Land use related impacts/Soil quality	-	1.13E+03	8.47E+01	3.51E+02	1.56E+03	4.11E+01	1.69E+00	2.18E+00	1.36E+00	2.95E+01	6.09E+03	0.00E+00	4.01E+00	3.21E-01	6.44E+00	-4.77E+02

Resource use

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
PERE Use of renewable primary energy excluding resources used as raw materials	MJ	4.66E+02	1.22E+00	7.74E+01	5.44E+02	8.56E-01	5.36E-01	1.74E+00	2.81E-01	6.02E+00	3.15E+03	0.00E+00	5.78E-02	9.01E-02	4.84E-02	-3.68E+02
PERM Use of renewable primary energy resources used as raw materials	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
PERT Total use of renewable primary energy	MJ	4.66E+02	1.22E+00	7.74E+01	5.44E+02	8.56E-01	5.36E-01	1.74E+00	2.81E-01	6.02E+00	3.15E+03	0.00E+00	5.78E-02	9.01E-02	4.84E-02	-3.68E+02
PENRE Use of non-renewable primary energy excluding resources used as raw materials	MJ	1.85E+03	8.41E+01	7.36E+01	2.01E+03	1.26E+02	1.63E+01	8.02E+00	1.13E+00	2.74E+01	1.41E+04	0.00E+00	3.96E+00	1.03E+00	2.81E+00	-1.46E+03
PENRM Use of non-renewable primary energy resources used as raw materials	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
PENRT Total use of non-renewable primary energy	MJ	1.85E+03	8.41E+01	7.36E+01	2.01E+03	1.26E+02	1.63E+01	8.02E+00	1.13E+00	2.74E+01	1.41E+04	0.00E+00	3.96E+00	1.03E+00	2.81E+00	-1.46E+03
SM Secondary material	kg	1.07E-01	0.00E+00	0.00E+00	1.07E-01	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
RSF Renewable secondary fuels	MJ	7.26E-04	0.00E+00	0.00E+00	7.26E-04	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
NRSF Non-renewable secondary fuels	MJ	4.67E-02	0.00E+00	0.00E+00	4.67E-02	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
FW Net use of fresh water	m³	1.78E+00	1.66E-02	2.87E-02	1.82E+00	1.39E-02	1.91E-02	6.32E-03	1.38E-03	6.94E-02	3.51E+00	0.00E+00	7.86E-04	5.38E-03	3.09E-03	-8.42E-01

Waste & Output Flows

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
HWD Hazardous waste disposed	kg	5.66E+00	0.00E+00	0.00E+00	5.66E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
NHWD Non-hazardous waste disposed	kg	3.68E+00	0.00E+00	1.18E+01	1.54E+01	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
RWD Radioactive waste disposed	kg	4.69E-03	0.00E+00	0.00E+00	4.69E-03	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
CRU Components for reuse	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
MFR Material for recycling	kg	1.83E-03	0.00E+00	0.00E+00	1.83E-03	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	3.52E+01	0.00E+00	0.00E+00
MER Materials for energy recovery	kg	8.05E-06	0.00E+00	0.00E+00	8.05E-06	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	2.57E+00	0.00E+00	0.00E+00
EE (Electrical) Exported energy electrical	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
EE (Thermal) Exported energy thermal	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00

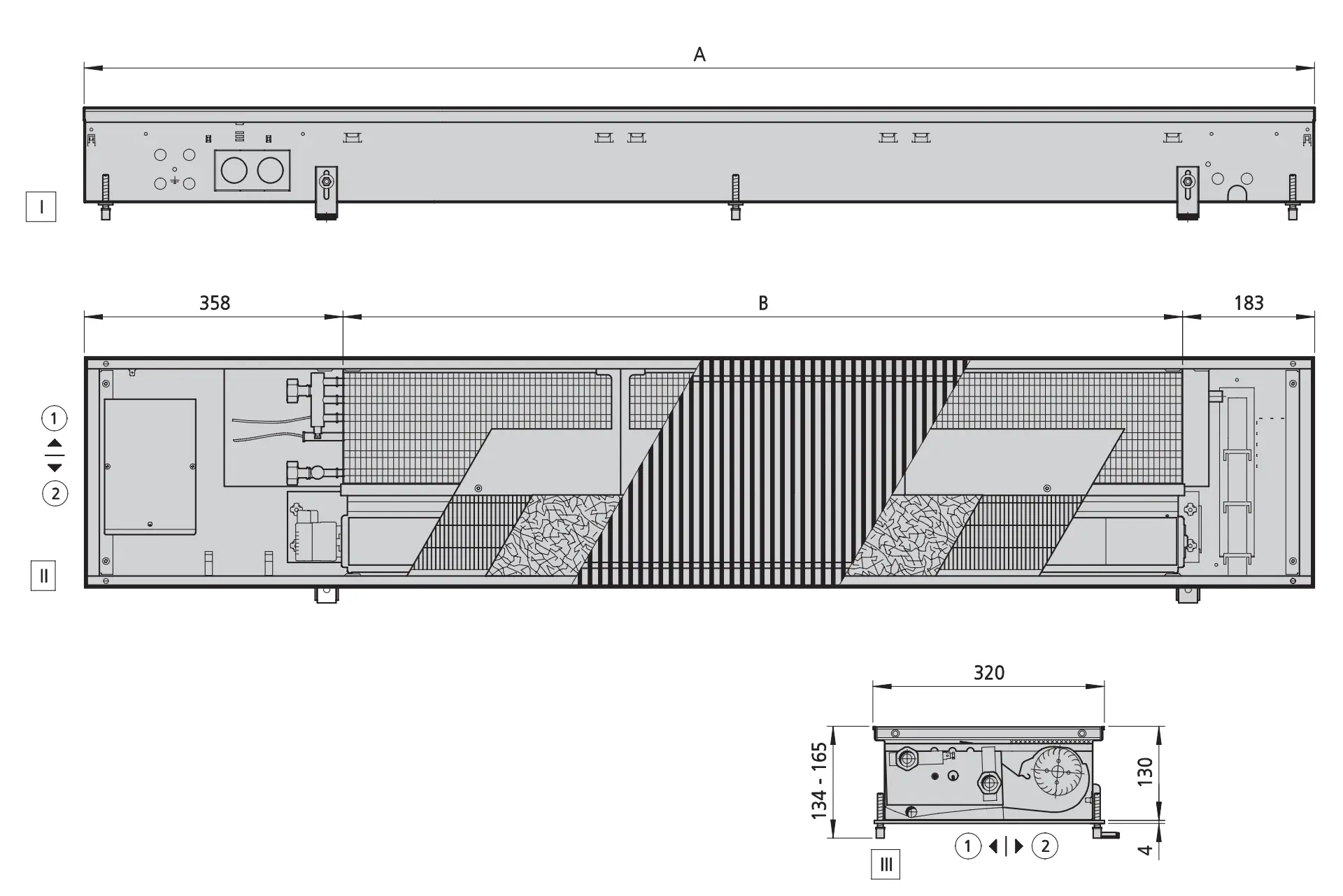

Length (A)	2,500 mm
finned length (B)	1,960 mm
Weight	49.4 kg

Length (A)	2,500 mm
finned length (B)	1,960 mm
Weight	49.4 kg
