Basic unit
Kampmann Ultra unit heater, extremely slimline and appealing design, suitable for heating high-end interiors, even with low ceiling height. Ceiling-mounted, hexagonal with rounded edges. Identical appearance and height of heating and cooling models.
Heating or cooling design with LPHW or PCW featuring circular heat exchanger. Plastic housing, white RAL 9016, with hexagonal air outlet through 6 outlet fields, through profiles 45 mm wide louvres pre-adjustable in 6 defined adjustment angles. Base can be easily removable for maintenance, complete with motor guard and brackets for quick installation. Standard with easily assembled 6-section intake crown. Mounting option for optional filter Life Cycle Assessment (LCA) data is published in the form of an EPD according to EN 15804 and is available to download from the International EPD System. Registered in the building products platform DGNB Navigator. GWP (phase A1-A3), kg CO2 Äq.1,75E+02. Further calculations possible online.
Heat exchanger
High-output heat exchanger, consisting of round copper tubes with aluminium slats, suitable for use with refrigerant.
| Max. operating pressure | bar | 16 |
| Max. entering water temperature | °C | 90 |
| Min. entering water temperature | °C | 6 |
| Max. air inlet temp. | °C | 40 |
| Max. glycol volume | % | 50 |
Condensation

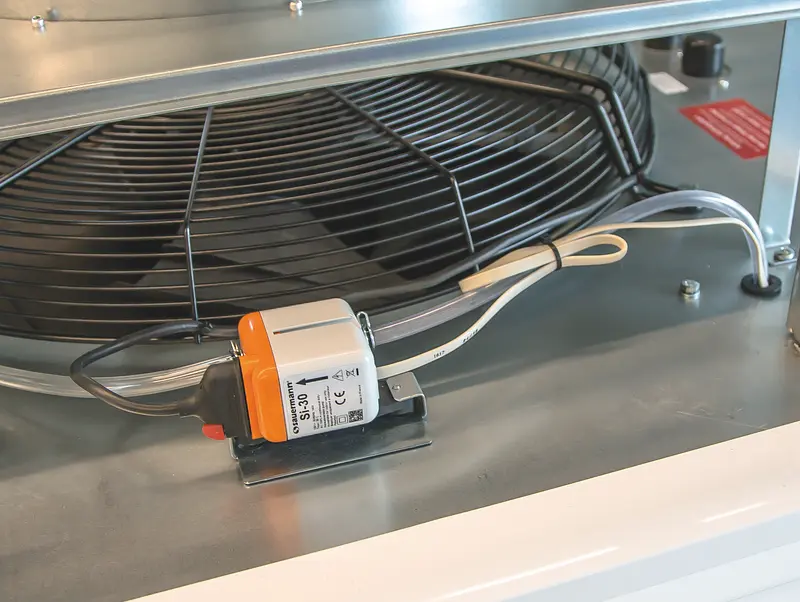

Plastic condensate tray. Condensate tray designed as an independent component that can be removed for cleaning and maintenance in accordance with VDI 6022. Factory-fitted condensate pump including alarm contact for shut-down and notification.
| max. delivery height | m | 8 |
| max. delivery volume | l/h | 4 |
| hose length | m | 10 |
| condensate discharge line DN | mm | 6 |
Fan
Energy-saving EC fan with 0-10 V input for continuously variable speed control. All rotating parts have low-noise and maintenance-free bearings. Factory-wired. Overtemperature protection of the fan by active temperature management. Integrated motor protection.
Control
- Built-in KaControl MC controller for continuous fan control with motor monitoring.
- For the control of 24 V DC actuators (Open/Closed) for heating and cooling operation.
- With connection option for 5 multifunctional inputs (room temperature, window contact, supply and return temperature, heating/cooling changeover, condensate alarm, sequential control via a 0-10 V signal etc.), unit-specific control and regulation algorithms with the core functions of room temperature control (heating/cooling).
- Timer program with battery-backed real-time clock for four operating modes (Day/Eco/Extra/Off), commissioning function.
- Grouping of up to 10 units and a display to create a control zone using CAN-bus, automatic addressing and communication monitoring of all bus subscribers, continuous synchronisation of all statuses and parameters within the group.
- CAN bus interface and galvanically isolated RS485 interface, each with two terminal blocks for separate connection with daisy chain cabling with a switchable terminal resistor.
- connection of central functions, such as heating cooling changeover to a freely selectable unit within the group.
- Ethernet interface with two RJ45 sockets with built-in switching function.
- KNX-TP interface with socket terminal, all terminals are designed as plugs, wireless communication via Wi-Fi web server for user-friendly operation and for complete password-protected parametrisation.
- protocols can be unlocked via licences: BACnet/IP, Modbus TCP, Modbus RTU, KNX.
- Repair switch which can be locked off using a lock on site.
- With an external connection box.
Configuration

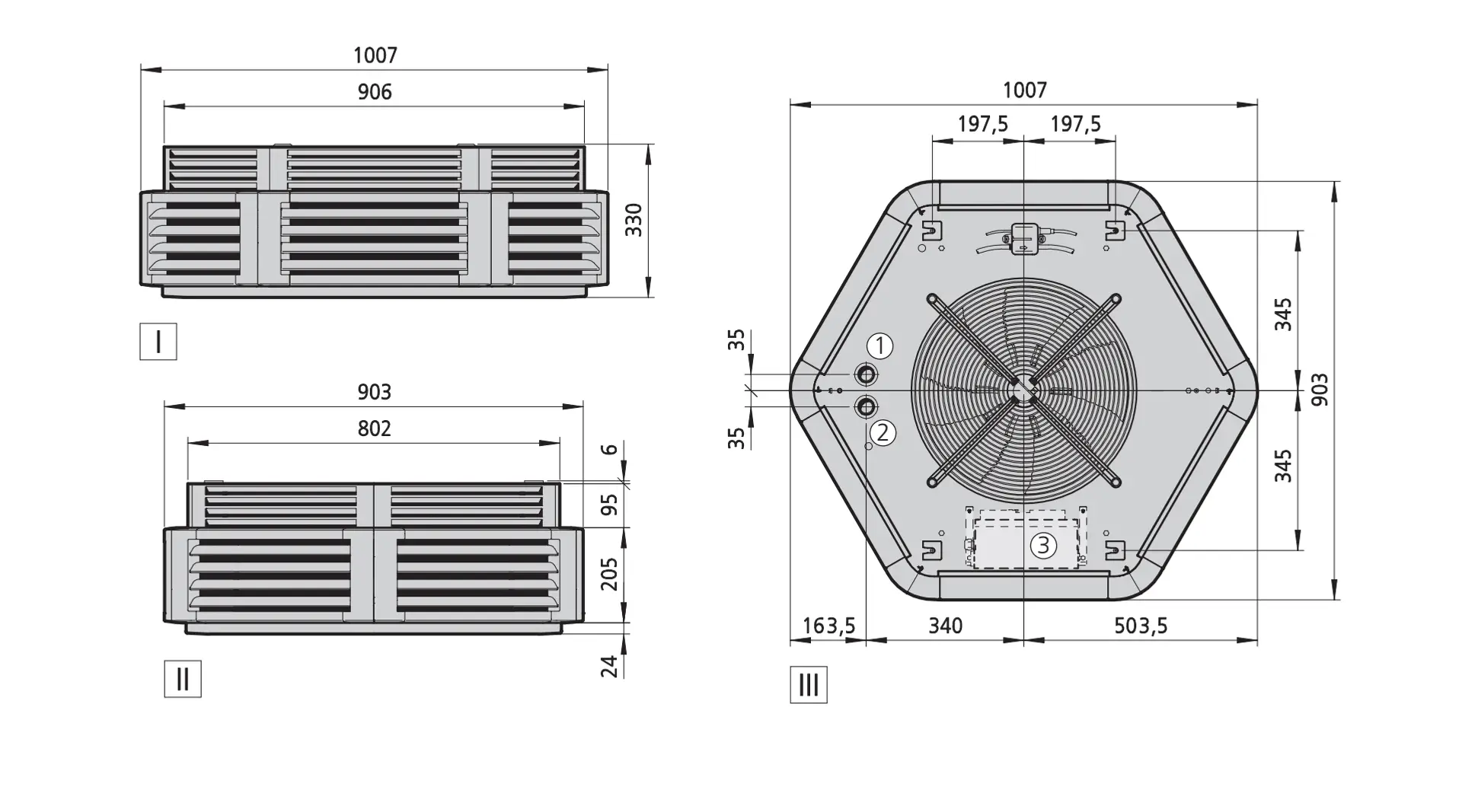

| Model size | | 85 |
| Width | mm | 1004 |
| Height | mm | 330 |
| Length | mm | 900 |
| Weight | kg | 39.8 |
| Water content | l | 3.8 |
| Connection | | 1'' |
