Basic unit
Kampmann Ultra unit heater, extremely slimline and appealing design, suitable for heating high-end interiors, even with low ceiling height. Ceiling-mounted, hexagonal with rounded edges. Identical appearance and height of heating and cooling models.
Heating unit design with LPHW featuring circular heat exchanger. Plastic housing, white RAL 9016, with hexagonal air outlet through 6 outlet fields, through profiles 45 mm wide louvres pre-adjustable in 6 defined adjustment angles. Base can be easily removable for maintenance, complete with motor guard and brackets for quick installation. Standard with easily assembled 6-section intake crown. Mounting option for optional filter Life Cycle Assessment (LCA) data is published in the form of an EPD according to EN 15804 and is available to download from the International EPD System. Registered in the building products platform DGNB Navigator. GWP (phase A1-A3), kg CO2 Äq.2,15E+02. Further calculations possible online.
Heat exchanger
High-efficiency heat exchanger, consisting of round copper tubes with aluminium fins, suitable for use with LPHW.
| Max. operating pressure | bar | 16 |
| Max. entering water temperature | °C | 90 |
| Min. entering water temperature | °C | 35 |
| Max. air inlet temp. | °C | 40 |
| Max. glycol volume | % | 50 |
Fan
Energy-saving EC fan with 0-10 V input for continuously variable speed control. All rotating parts have low-noise and maintenance-free bearings. Factory-wired. Overtemperature protection of the fan by active temperature management. Integrated motor protection.
Control
- With an external connection box.

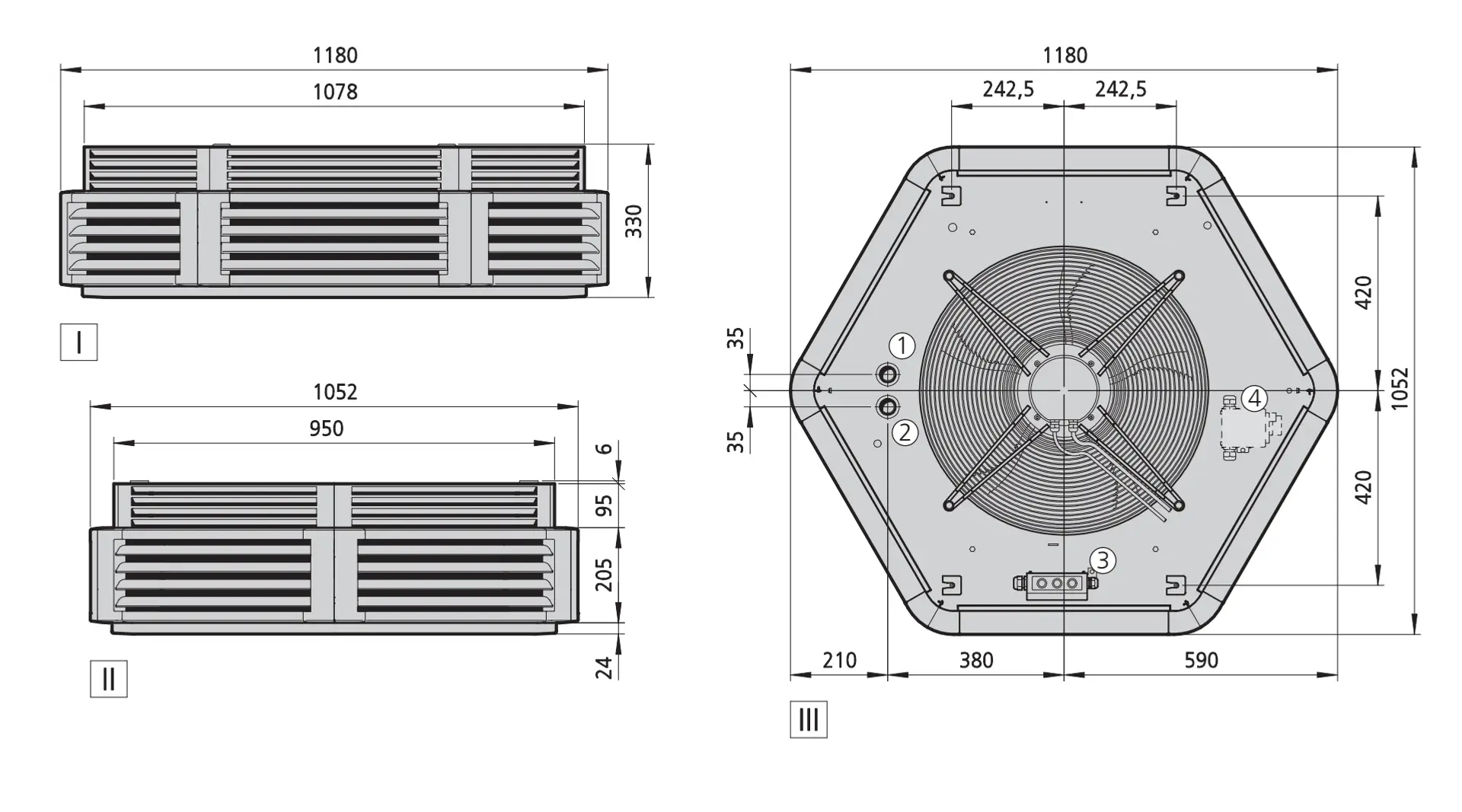

Configuration
| Model size | | 96 |
| Width | mm | 1177 |
| Height | mm | 330 |
| Length | mm | 1050 |
| Weight | kg | 44.8 |
| Water content | l | 2.2 |
| Connection | | 1'' |
