basic unit
Kampmann Ultra unit heater, extremely slimline and appealing design, suitable for heating high-end interiors, even with low ceiling height. Ceiling-mounted, hexagonal with rounded edges. Identical appearance and height of heating and cooling models.
Plastic housing, white RAL 9016, with hexagonal air outlet through 6 outlet fields, through profiles 45 mm wide louvres pre-adjustable in 6 defined adjustment angles. Base can be easily removable for maintenance, complete with motor guard and brackets for quick installation. Standard with easily assembled 6-section intake crown. Mounting option for optional filter. Life Cycle Assessment (LCA) data is published in the form of an EPD according to EN 15804 and is available to download from the International EPD System. Registered in the building products platform DGNB Navigator. GWP (phase A1-A3), kg CO2 Äq.1,70E+02. Further calculations possible online.
Heat exchanger
Heating or cooling design with LPHW or PCW featuring circular heat exchanger. High-output heat exchanger, consisting of round copper tubes with aluminium slats, suitable for use with refrigerant.
| Max. operating pressure | bar | 16 |
| Max. entering water temperature | °C | 90 |
| Min. entering water temperature | °C | 6 |
| Max. air inlet temp. | °C | 40 |
| Max. glycol volume | % | 50 |
Condensation
Plastic condensate tray. Condensate tray designed as an independent component that can be removed for cleaning and maintenance in accordance with VDI 6022. Factory-fitted condensate pump including alarm contact for shut-down and notification.
| max. delivery height | m | 8 |
| max. delivery volume | l/h | 4 |
| hose length | m | 10 |
| condensate discharge line DN | mm | 6 |
Fan
Energy-saving EC fan with 0-10 V input for continuously variable speed control. All rotating parts have low-noise and maintenance-free bearings. Factory-wired. Overtemperature protection of the fan by active temperature management. Integrated motor protection.
Control
KaControl recirculation air module
factory-fitted and wired.
Aluminium housing, IP 21-rated Dimensions WxHxD 260 x 100 x 110 mm.
Continuously variable speed control including repair switch and KaControl PCB with the following functions:
- Room control of up to 6 units via a tLAN interface
- Extendible by up to 30 units via a CANbus interface (CANbus card required).
- Slot for optional interfaces:
- Temperature measurement optionally via sensor in the room control unit or external room temperature sensor
- 2 digital inputs, parametrisable
- 3 analogue inputs for room temperature, clip-on temperature, coil sensor
- 2 digital outputs, parametrisable
- Valve control 0-10 V DC
- Heating/cooling changeover in the 2-pipe system via digital input or in automatic mode via a coil sensor
- Night mode (energy-saving mode) that can be activated via a timer program or digital input
- Five-stage fan control 0-1-2-3-4-5 in manual mode
- Demand-led continuously variable (0-100%) valve actuation in Automatic mode
- Unit shut-down in the event of a fault with message via the control unit
- Sequential control of valve (Open/Close) and fan (continuously variable) via a data point 0-10 V DC
- Interface for service tool to upload and download parameters
- With an external connection box.
Configuration

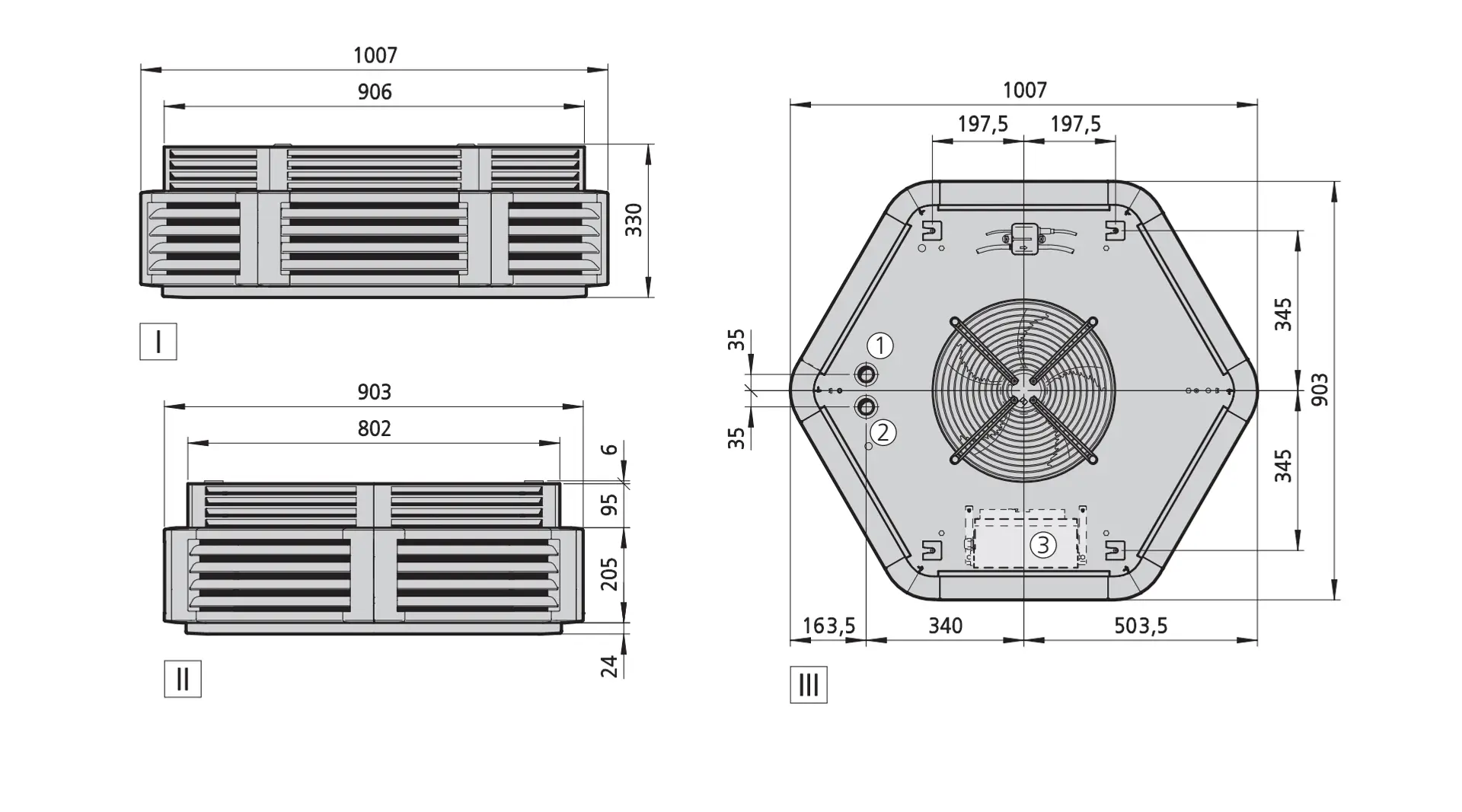

| Model size | | 84 |
| Width | mm | 1004 |
| Height | mm | 330 |
| Length | mm | 900 |
| Weight | kg | 39.8 |
| Water content | l | 2.9 |
| Connection | | 1'' |
