Basic unit

Kampmann PowerKon nano convector, free-standing, with tangential fan convection. Heat outputs tested in accordance with DIN EN 16430, part 1 and 2. Casing made from steel, with long-lasting corrosion protection by phosphating, very smooth surface, easy to clean, powdercoated in DB703, all parts easily removable. With cover plate over the connection area. With openings for heating supply and return and electric connections, to the bottom. Optional valve and thermoelectric actuator can be housed in the support feet.

Heat exchanger

High-performance convector made from round copper pipes with aluminium fins, coated graphite-grey. With air guide Panel. With integral bleed option.

System		2-pipe
Max. operating pressure	bar	10
Max. entering water temperature	°C	95
Min. entering water temperature	°C	15

Fan

Tangential fan with safety guard. Energy-saving EC fan with 0-10 V signal for continuously variable speed control. All rotating parts are silent and mounted on maintenance-free bearings. Motor monitoring with internal fault processing. Factory-wired.

Control

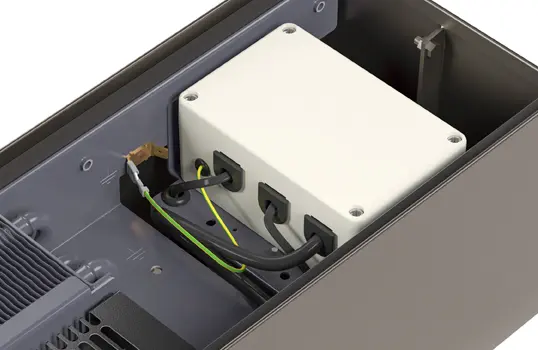

230 V electromechanical control version
Electrical connection unit factory-fitted and wired. Connection options for on-site signals to control the fan (continuously variable) and actuators, including 230V/ 24V power unit. Continuously variable speed control via an external 0-10 VDC signal..

Grille

With FineLine grille made from solid triangular profiles with support profiles, rigid construction.

Configuration

Grille design		Linear grille
Grille finish		Steel, coated RAL 9005
Bar height	mm	4.5
Bar depth	mm	2.2
Bar spacing	mm	4.8
Free area, approx.	%	70
Length	mm	1400
Width	mm	160
Height	mm	160
Weight	kg	14.8
Connection		1/2 inch
connection description		One-sided
Water connections		left
