Venkon XL

Article no.: 34821W0L425E01

2,452.00 EUR

no VAT.

Details
Description
Technical data
Acoustic data
EPD
Dimensions
Accessories
BIM
Downloads

Details
Description
Technical data
Acoustic data
EPD
Dimensions
Accessories
BIM
Downloads

Basic unit

Kampmann Venkon XL fan coil for cooling and/or heating. Designed for recirculation air applications with particularly high cooling and external pressure requirements. Designed as a recirculating air version with rectangular duct connection on the intake and discharge side. Hygiene-certified in line with VDI 6022. Sendzimir galvanised sheet steel housing. Wall-mounted unit (also suitable for ceiling mounting)
Filter classFilter ePM10>50% (M5).
Life Cycle Assessment (LCA) data is published in the form of an EPD according to EN 15804 and is available to download from the International EPD System. Registered in the building products platform DGNB Navigator. GWP (phase A1-A3), kg CO2 Äq.1,87E+02. Further calculations possible online.

Heat exchanger

High-efficiency heat exchanger made of round copper tubes with aluminium fins, including anti-torsion device to prevent damage to the coil.

System		4-pipe
Max. operating pressure	bar	10
Max. entering water temperature	°C	90
Min. entering water temperature	°C	5
Max. air inlet temp.	°C	25
Max. glycol volume	%	50

Condensate tray

Condensate tray, galvanised sheet steel, powder-coated and glued on all sides with thick insulation. Condensate tray designed as an independent component that can be removed for cleaning and maintenance in accordance with VDI 6022.

Insulation thickness

Fan

Double-sided suction radial fan. Energy-saving EC fan with 0-10 V input for continuously variable speed control. All rotating parts have low-noise and maintenance-free bearings. Factory-wired. Integrated motor protection. Insulation class F.

Control

Electromechanical control version.
electrical connection unit factory-fitted and wired

With connection options for on-site signals for
fan speed and actuator control.
Potential-free fault message wired to a terminal. Automatic motor shut-down in the event of a fault.

Connection

includes factory-fitted adapters to 3/4 inch R-thread Female NPT thread cooling

Connection Cooling

3/4''

Female NPT thread heating

Connection Heating

3/4''

Configuration

System		4-pipe
Water connections		left
Nominal voltage	V	230
Model size		2
Length	mm	262
Width	mm	916
Height	mm	650
Weight	kg	31.3

We consider the environmental impact of our products throughout their entire life cycle! The result is Environmental Product Declarations (EPDs). The EPDs can be easily submitted to all common building sustainability certification systems, such as DGNB, BREEAM, or LEED, and are available in the download area or directly here via the download button. In addition, the product is registered on the DGNB Navigator building products platform.

Basic data

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
GWP - Total Climate change - total	kg CO2 eq	1.84E+02	2.82E+00	3.29E-01	1.87E+02	6.16E+00	4.22E+00	6.39E-02	0.00E+00	3.44E+00	3.81E+01	0.00E+00	3.85E-01	1.42E+00	3.47E-01	-7.61E+01
GWP - fossil Climate change - fossil	kg CO2 eq	1.83E+02	2.82E+00	3.25E+00	1.89E+02	6.16E+00	1.29E+00	6.13E-02	0.00E+00	3.44E+00	3.80E+01	0.00E+00	3.85E-01	1.42E+00	2.99E-01	-7.55E+01
GWP - Biogenic Climate change - biogenic	kg CO2 eq	3.42E-01	4.75E-04	-2.92E+00	-2.58E+00	1.14E-03	2.92E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	7.15E-05	7.52E-05	4.78E-02	-4.57E-02
GWP - Luluc Climate change - land use and land use change	kg CO2 eq	1.26E+00	1.30E-03	3.99E-03	1.26E+00	2.57E-03	6.22E-04	2.56E-03	0.00E+00	6.26E-03	1.91E-02	0.00E+00	1.61E-04	7.54E-06	8.57E-05	-5.57E-01
ODP Ozone Depletion	kg CFC-11 eq	2.83E-06	4.45E-08	3.17E-08	2.90E-06	9.91E-08	1.65E-08	9.95E-10	0.00E+00	9.02E-08	2.48E-07	0.00E+00	6.19E-09	3.82E-10	2.49E-09	-4.40E-07
AP Acidification	mol H+ eq	2.57E+00	4.24E-02	7.90E-03	2.62E+00	1.57E-02	5.06E-03	3.05E-04	0.00E+00	6.00E-02	1.06E-01	0.00E+00	9.81E-04	2.19E-04	6.90E-04	-7.05E-01
EP - fresh water Eutrophication aquatic freshwater	kg P eq	1.59E-02	1.88E-05	1.73E-04	1.61E-02	5.80E-05	4.20E-05	4.20E-06	0.00E+00	4.48E-04	2.55E-03	0.00E+00	3.62E-06	3.11E-07	1.59E-06	-2.55E-03
EP - marine Eutrophication aquatic marine	kg P eq	4.24E-01	1.06E-02	1.70E-03	4.37E-01	3.89E-03	1.03E-03	7.91E-05	0.00E+00	1.59E-02	1.64E-02	0.00E+00	2.43E-04	9.80E-05	3.23E-04	-6.95E-02
EP - country Eutrophication terrestrial	mol N eq	2.62E+00	1.17E-01	1.96E-02	2.76E+00	4.31E-02	1.13E-02	6.19E-04	0.00E+00	6.38E-02	1.88E-01	0.00E+00	2.70E-03	1.06E-03	2.76E-03	-8.16E-01
POCP Photochemical ozone formation	kg NMVOC	8.98E-01	3.48E-02	8.76E-03	9.42E-01	2.38E-02	4.64E-03	2.00E-04	0.00E+00	2.18E-02	7.48E-02	0.00E+00	1.48E-03	2.68E-04	9.91E-04	-2.92E-01
ADPE Depletion of abiotic resources - minerals and metals	kg Sb eq	3.08E-02	5.51E-06	4.10E-06	3.08E-02	1.74E-05	7.62E-06	4.17E-07	0.00E+00	9.65E-04	5.07E-05	0.00E+00	1.09E-06	5.79E-08	2.25E-07	-2.98E-03
ADPF Abiotic resource depletion - fossil fuels	MJ	2.45E+03	3.87E+01	6.16E+01	2.55E+03	9.27E+01	1.97E+01	1.06E+00	0.00E+00	5.19E+01	7.02E+02	0.00E+00	5.79E+00	2.06E-01	2.18E+00	-7.07E+02
WDP Water use	m³ depriv.	-8.26E+01	1.51E-01	4.85E-01	-8.20E+01	4.73E-01	1.10E-01	3.80E-02	0.00E+00	1.42E+00	8.26E+00	0.00E+00	2.96E-02	3.85E-02	-5.57E-01	-1.88E+01
GWP-GHG Global Warming Potential total excl. biogenic carbon following IPCC AR5 methodology	kg CO2 eq	1.84E+02	2.83E+00	3.26E+00	1.90E+02	6.18E+00	1.38E+00	6.40E-02	0.00E+00	3.45E+00	3.81E+01	0.00E+00	3.86E-01	1.42E+00	3.10E-01	-7.61E+01
PM Particulate Matter emissions	disease inc.	1.31E-05	1.86E-07	9.61E-08	1.34E-05	6.03E-07	8.68E-08	2.76E-09	0.00E+00	2.49E-07	4.97E-07	0.00E+00	3.77E-08	1.17E-09	1.44E-08	-9.09E-06
IR Ionizing radiation, human health	kBq U-235 eq	3.46E+02	1.11E-02	4.51E-01	3.47E+02	3.18E-02	1.76E-02	5.25E-03	0.00E+00	3.43E-01	6.02E+00	0.00E+00	1.99E-03	1.53E-04	1.04E-03	-4.26E-01
ETP - FW Ecotoxicity (fresh water)	CTUe	4.40E+03	8.17E+00	7.11E+00	4.41E+03	2.23E+01	2.30E+01	5.52E-01	0.00E+00	1.49E+02	8.89E+01	0.00E+00	1.39E+00	2.31E+00	2.91E+02	-1.45E+03
HTP - C Human toxicity, cancer effects	CTUh	2.53E-06	1.36E-08	4.72E-09	2.55E-06	3.17E-08	5.10E-08	2.31E-10	0.00E+00	5.10E-08	6.13E-08	0.00E+00	1.98E-09	2.29E-10	8.12E-10	-3.45E-06
HTP - NC Human toxicity, non-cancer effects	CTUh	2.10E-05	1.84E-08	1.36E-08	2.10E-05	5.93E-08	9.98E-09	5.21E-10	0.00E+00	5.29E-07	1.84E-07	0.00E+00	3.71E-09	2.39E-09	2.04E-08	-3.37E-06
SQP Land use related impacts/Soil quality	-	1.12E+03	2.40E+01	3.39E+02	1.48E+03	9.32E+01	5.17E+00	6.07E-01	0.00E+00	3.69E+01	1.01E+02	0.00E+00	5.82E+00	6.63E-02	4.43E+00	5.22E+01

Resource use

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
PERE Use of renewable primary energy excluding resources used as raw materials	MJ	4.74E+02	4.14E-01	5.43E+01	5.29E+02	1.18E+00	1.09E+00	2.23E-01	0.00E+00	5.82E+00	7.57E+01	0.00E+00	7.36E-02	8.50E-03	3.70E-02	-3.08E+02
PERM Use of renewable primary energy resources used as raw materials	MJ	1.63E+00	0.00E+00	2.26E+01	2.42E+01	0.00E+00	-2.26E+01	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	-1.63E+00	0.00E+00	0.00E+00
PERT Total use of renewable primary energy	MJ	4.76E+02	4.14E-01	7.69E+01	5.53E+02	1.18E+00	-2.15E+01	2.23E-01	0.00E+00	5.82E+00	7.57E+01	0.00E+00	7.36E-02	-1.62E+00	3.70E-02	-3.08E+02
PENRE Use of non-renewable primary energy excluding resources used as raw materials	MJ	2.45E+03	3.87E+01	6.16E+01	2.55E+03	9.27E+01	1.97E+01	1.06E+00	0.00E+00	5.19E+01	7.02E+02	0.00E+00	5.79E+00	2.06E-01	2.18E+00	-7.07E+02
PENRM Use of non-renewable primary energy resources used as raw materials	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
PENRT Total use of non-renewable primary energy	MJ	2.45E+03	3.87E+01	6.16E+01	2.55E+03	9.27E+01	1.97E+01	1.06E+00	0.00E+00	5.19E+01	7.02E+02	0.00E+00	5.79E+00	2.06E-01	2.18E+00	-7.07E+02
SM Secondary material	kg	4.61E+00	0.00E+00	0.00E+00	4.61E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
RSF Renewable secondary fuels	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
NRSF Non-renewable secondary fuels	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
FW Net use of fresh water	m³	-8.06E+01	1.52E-01	4.78E-01	-8.00E+01	4.76E-01	1.26E-01	3.75E-02	0.00E+00	1.43E+00	8.00E+00	0.00E+00	2.97E-02	3.82E-02	-5.57E-01	-9.74E+00

Waste & Output Flows

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
HWD Hazardous waste disposed	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
NHWD Non-hazardous waste disposed	kg	0.00E+00	0.00E+00	2.81E+00	2.81E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
RWD Radioactive waste disposed	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
CRU Components for reuse	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
MFR Material for recycling	kg	0.00E+00	0.00E+00	5.57E+00	5.57E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	2.52E+01	0.00E+00	0.00E+00
MER Materials for energy recovery	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	1.70E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	5.32E-01	0.00E+00	0.00E+00
EE (Electrical) Exported energy electrical	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	9.58E-01
EE (Thermal) Exported energy thermal	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	3.28E+00

Basic unit

Heat exchanger

High-efficiency heat exchanger made of round copper tubes with aluminium fins, including anti-torsion device to prevent damage to the coil.

System		4-pipe
Max. operating pressure	bar	10
Max. entering water temperature	°C	90
Min. entering water temperature	°C	5
Max. air inlet temp.	°C	25
Max. glycol volume	%	50

Condensate tray

Insulation thickness

Fan

Control

Electromechanical control version.
electrical connection unit factory-fitted and wired

With connection options for on-site signals for
fan speed and actuator control.
Potential-free fault message wired to a terminal. Automatic motor shut-down in the event of a fault.

Connection

includes factory-fitted adapters to 3/4 inch R-thread Female NPT thread cooling

Connection Cooling

3/4''

Female NPT thread heating

Connection Heating

3/4''

Configuration

System		4-pipe
Water connections		left
Nominal voltage	V	230
Model size		2
Length	mm	262
Width	mm	916
Height	mm	650
Weight	kg	31.3

Basic data

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
GWP - Total Climate change - total	kg CO2 eq	1.84E+02	2.82E+00	3.29E-01	1.87E+02	6.16E+00	4.22E+00	6.39E-02	0.00E+00	3.44E+00	3.81E+01	0.00E+00	3.85E-01	1.42E+00	3.47E-01	-7.61E+01
GWP - fossil Climate change - fossil	kg CO2 eq	1.83E+02	2.82E+00	3.25E+00	1.89E+02	6.16E+00	1.29E+00	6.13E-02	0.00E+00	3.44E+00	3.80E+01	0.00E+00	3.85E-01	1.42E+00	2.99E-01	-7.55E+01
GWP - Biogenic Climate change - biogenic	kg CO2 eq	3.42E-01	4.75E-04	-2.92E+00	-2.58E+00	1.14E-03	2.92E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	7.15E-05	7.52E-05	4.78E-02	-4.57E-02
GWP - Luluc Climate change - land use and land use change	kg CO2 eq	1.26E+00	1.30E-03	3.99E-03	1.26E+00	2.57E-03	6.22E-04	2.56E-03	0.00E+00	6.26E-03	1.91E-02	0.00E+00	1.61E-04	7.54E-06	8.57E-05	-5.57E-01
ODP Ozone Depletion	kg CFC-11 eq	2.83E-06	4.45E-08	3.17E-08	2.90E-06	9.91E-08	1.65E-08	9.95E-10	0.00E+00	9.02E-08	2.48E-07	0.00E+00	6.19E-09	3.82E-10	2.49E-09	-4.40E-07
AP Acidification	mol H+ eq	2.57E+00	4.24E-02	7.90E-03	2.62E+00	1.57E-02	5.06E-03	3.05E-04	0.00E+00	6.00E-02	1.06E-01	0.00E+00	9.81E-04	2.19E-04	6.90E-04	-7.05E-01
EP - fresh water Eutrophication aquatic freshwater	kg P eq	1.59E-02	1.88E-05	1.73E-04	1.61E-02	5.80E-05	4.20E-05	4.20E-06	0.00E+00	4.48E-04	2.55E-03	0.00E+00	3.62E-06	3.11E-07	1.59E-06	-2.55E-03
EP - marine Eutrophication aquatic marine	kg P eq	4.24E-01	1.06E-02	1.70E-03	4.37E-01	3.89E-03	1.03E-03	7.91E-05	0.00E+00	1.59E-02	1.64E-02	0.00E+00	2.43E-04	9.80E-05	3.23E-04	-6.95E-02
EP - country Eutrophication terrestrial	mol N eq	2.62E+00	1.17E-01	1.96E-02	2.76E+00	4.31E-02	1.13E-02	6.19E-04	0.00E+00	6.38E-02	1.88E-01	0.00E+00	2.70E-03	1.06E-03	2.76E-03	-8.16E-01
POCP Photochemical ozone formation	kg NMVOC	8.98E-01	3.48E-02	8.76E-03	9.42E-01	2.38E-02	4.64E-03	2.00E-04	0.00E+00	2.18E-02	7.48E-02	0.00E+00	1.48E-03	2.68E-04	9.91E-04	-2.92E-01
ADPE Depletion of abiotic resources - minerals and metals	kg Sb eq	3.08E-02	5.51E-06	4.10E-06	3.08E-02	1.74E-05	7.62E-06	4.17E-07	0.00E+00	9.65E-04	5.07E-05	0.00E+00	1.09E-06	5.79E-08	2.25E-07	-2.98E-03
ADPF Abiotic resource depletion - fossil fuels	MJ	2.45E+03	3.87E+01	6.16E+01	2.55E+03	9.27E+01	1.97E+01	1.06E+00	0.00E+00	5.19E+01	7.02E+02	0.00E+00	5.79E+00	2.06E-01	2.18E+00	-7.07E+02
WDP Water use	m³ depriv.	-8.26E+01	1.51E-01	4.85E-01	-8.20E+01	4.73E-01	1.10E-01	3.80E-02	0.00E+00	1.42E+00	8.26E+00	0.00E+00	2.96E-02	3.85E-02	-5.57E-01	-1.88E+01
GWP-GHG Global Warming Potential total excl. biogenic carbon following IPCC AR5 methodology	kg CO2 eq	1.84E+02	2.83E+00	3.26E+00	1.90E+02	6.18E+00	1.38E+00	6.40E-02	0.00E+00	3.45E+00	3.81E+01	0.00E+00	3.86E-01	1.42E+00	3.10E-01	-7.61E+01
PM Particulate Matter emissions	disease inc.	1.31E-05	1.86E-07	9.61E-08	1.34E-05	6.03E-07	8.68E-08	2.76E-09	0.00E+00	2.49E-07	4.97E-07	0.00E+00	3.77E-08	1.17E-09	1.44E-08	-9.09E-06
IR Ionizing radiation, human health	kBq U-235 eq	3.46E+02	1.11E-02	4.51E-01	3.47E+02	3.18E-02	1.76E-02	5.25E-03	0.00E+00	3.43E-01	6.02E+00	0.00E+00	1.99E-03	1.53E-04	1.04E-03	-4.26E-01
ETP - FW Ecotoxicity (fresh water)	CTUe	4.40E+03	8.17E+00	7.11E+00	4.41E+03	2.23E+01	2.30E+01	5.52E-01	0.00E+00	1.49E+02	8.89E+01	0.00E+00	1.39E+00	2.31E+00	2.91E+02	-1.45E+03
HTP - C Human toxicity, cancer effects	CTUh	2.53E-06	1.36E-08	4.72E-09	2.55E-06	3.17E-08	5.10E-08	2.31E-10	0.00E+00	5.10E-08	6.13E-08	0.00E+00	1.98E-09	2.29E-10	8.12E-10	-3.45E-06
HTP - NC Human toxicity, non-cancer effects	CTUh	2.10E-05	1.84E-08	1.36E-08	2.10E-05	5.93E-08	9.98E-09	5.21E-10	0.00E+00	5.29E-07	1.84E-07	0.00E+00	3.71E-09	2.39E-09	2.04E-08	-3.37E-06
SQP Land use related impacts/Soil quality	-	1.12E+03	2.40E+01	3.39E+02	1.48E+03	9.32E+01	5.17E+00	6.07E-01	0.00E+00	3.69E+01	1.01E+02	0.00E+00	5.82E+00	6.63E-02	4.43E+00	5.22E+01

Resource use

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
PERE Use of renewable primary energy excluding resources used as raw materials	MJ	4.74E+02	4.14E-01	5.43E+01	5.29E+02	1.18E+00	1.09E+00	2.23E-01	0.00E+00	5.82E+00	7.57E+01	0.00E+00	7.36E-02	8.50E-03	3.70E-02	-3.08E+02
PERM Use of renewable primary energy resources used as raw materials	MJ	1.63E+00	0.00E+00	2.26E+01	2.42E+01	0.00E+00	-2.26E+01	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	-1.63E+00	0.00E+00	0.00E+00
PERT Total use of renewable primary energy	MJ	4.76E+02	4.14E-01	7.69E+01	5.53E+02	1.18E+00	-2.15E+01	2.23E-01	0.00E+00	5.82E+00	7.57E+01	0.00E+00	7.36E-02	-1.62E+00	3.70E-02	-3.08E+02
PENRE Use of non-renewable primary energy excluding resources used as raw materials	MJ	2.45E+03	3.87E+01	6.16E+01	2.55E+03	9.27E+01	1.97E+01	1.06E+00	0.00E+00	5.19E+01	7.02E+02	0.00E+00	5.79E+00	2.06E-01	2.18E+00	-7.07E+02
PENRM Use of non-renewable primary energy resources used as raw materials	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
PENRT Total use of non-renewable primary energy	MJ	2.45E+03	3.87E+01	6.16E+01	2.55E+03	9.27E+01	1.97E+01	1.06E+00	0.00E+00	5.19E+01	7.02E+02	0.00E+00	5.79E+00	2.06E-01	2.18E+00	-7.07E+02
SM Secondary material	kg	4.61E+00	0.00E+00	0.00E+00	4.61E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
RSF Renewable secondary fuels	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
NRSF Non-renewable secondary fuels	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
FW Net use of fresh water	m³	-8.06E+01	1.52E-01	4.78E-01	-8.00E+01	4.76E-01	1.26E-01	3.75E-02	0.00E+00	1.43E+00	8.00E+00	0.00E+00	2.97E-02	3.82E-02	-5.57E-01	-9.74E+00

Waste & Output Flows

Impact category	Unit	A1	A2	A3	A1-A3	A4	A5	B2	B3	B4	B6	C1	C2	C3	C4	D
HWD Hazardous waste disposed	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
NHWD Non-hazardous waste disposed	kg	0.00E+00	0.00E+00	2.81E+00	2.81E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
RWD Radioactive waste disposed	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
CRU Components for reuse	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00
MFR Material for recycling	kg	0.00E+00	0.00E+00	5.57E+00	5.57E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	2.52E+01	0.00E+00	0.00E+00
MER Materials for energy recovery	kg	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	1.70E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	5.32E-01	0.00E+00	0.00E+00
EE (Electrical) Exported energy electrical	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	9.58E-01
EE (Thermal) Exported energy thermal	MJ	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	0.00E+00	3.28E+00

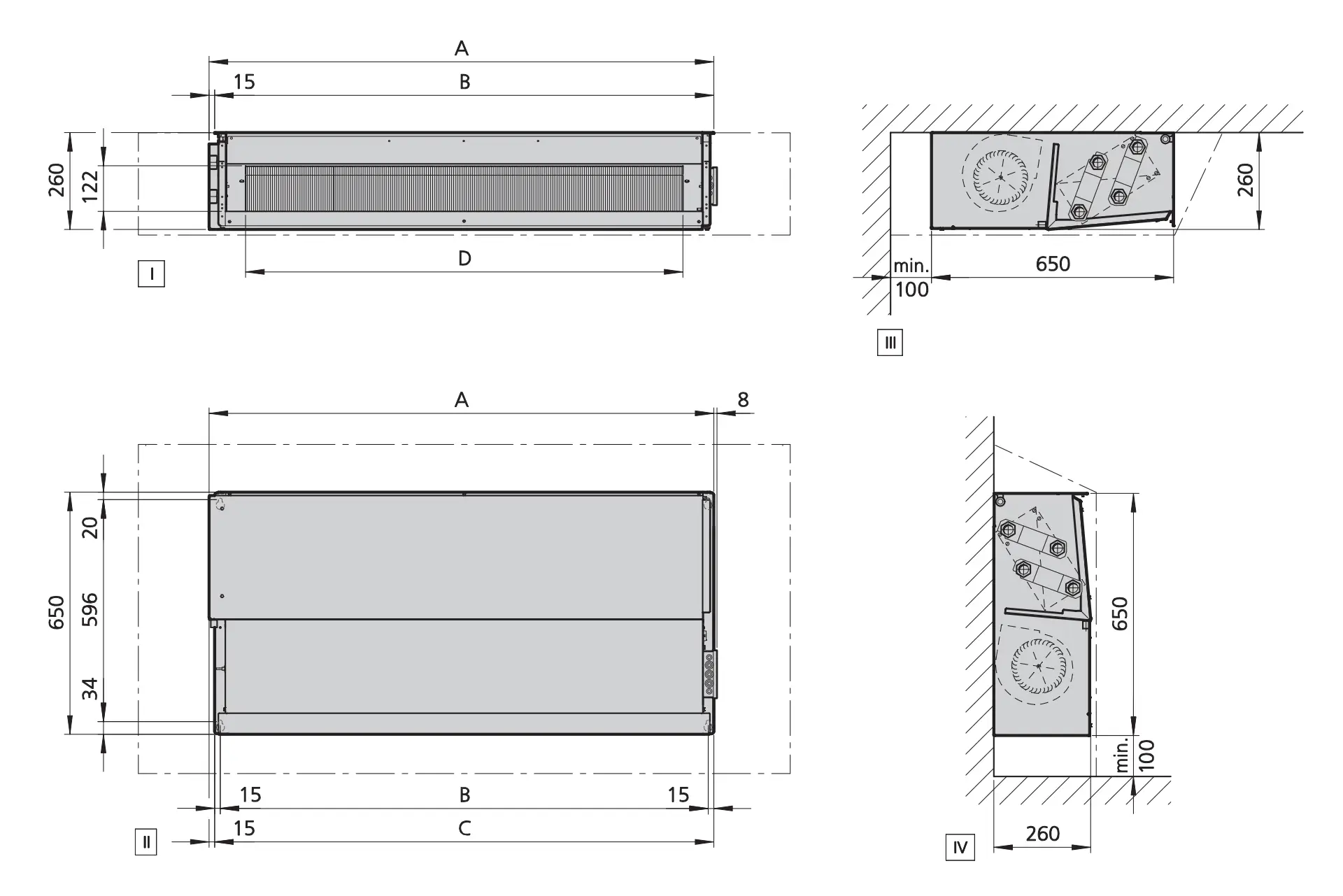

unit width (A)	905 mm
Spacing of suspension points (B)	860 mm
Rear wall (C)	890 mm
Air discharge opening (D)	731 mm
Filter class	Filter ePM10>50% (M5)
Weight	31.3 kg
System	4-pipe
Connection Heating	3/4''
Connection Cooling	3/4''

Venkon XL

Radial fan

High-output heat exchanger

Condensate tray

Connection unit for circular pipe

Venkon XL

Radial fan

High-output heat exchanger

Condensate tray

Connection unit for circular pipe
