Schauinsland Reisen, Duisburg

Innovative extension for the best working climate

Building owner: Schauinsland Reisen GmbH

Town/City: Duisburg 47051

The travel company schauinsland-reisen not only has a wonderfully old-fashioned sounding name (due to its long history dating back to 1918) but also enjoys great success. The family-run company is expanding steadily and has become one of the largest tour operators and travel agents in Germany. However, despite (or perhaps because of) the company’s ambitious goals, a good working climate is very important to the management. This is abundantly clear by the extension of the Duisburg company site, where employees enjoy an outstanding working environment measuring some 6,600 square metres. It is with good reason that an independent study has confirmed that schauinsland travel has the best working climate and the best work-life balance in the travel industry.

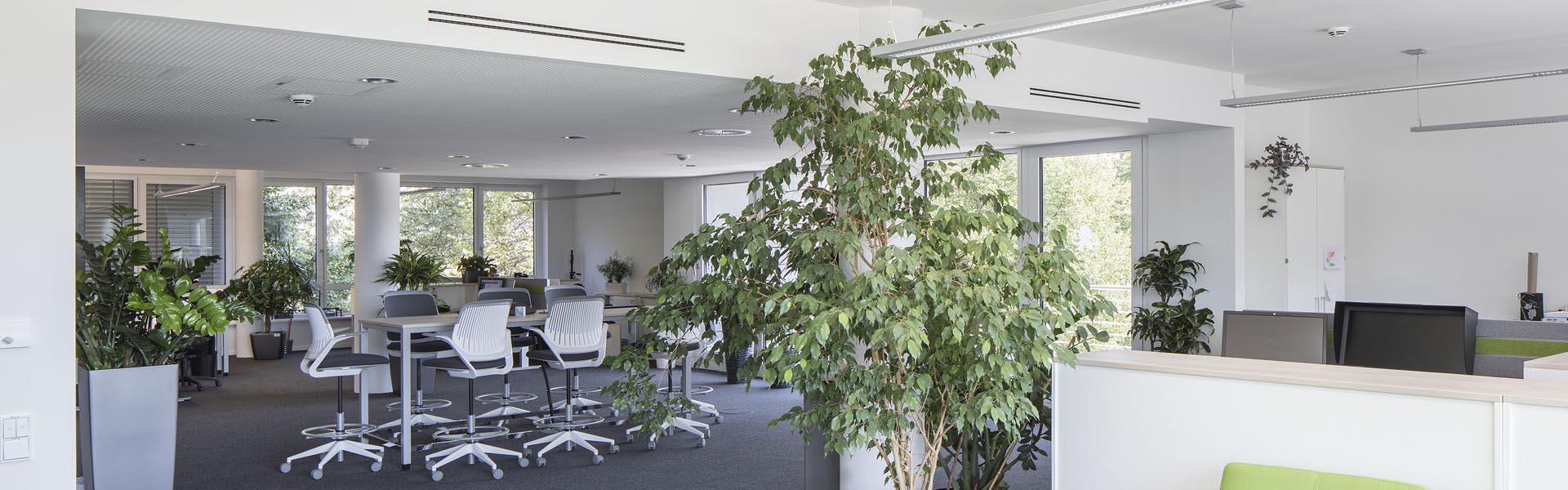

Rooms flooded with natural light, bright offices, a waterfall, a wealth of plants, stylish relaxation and leisure facilities including table football transform the new building into a working environment you can only dream about. The indoor climate is also exceptional to match the working climate. Supply air and exhaust air is organised by emcoair combined and slot air outlets.

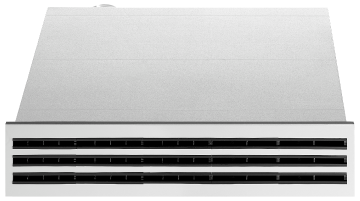

There are only narrow slots in the walls, which are scarcely noticeable – but are in fact everywhere: the 150 KSW, as it is known. The emcoair KSW is a combined air outlet for supply air and exhaust air in a single unit and is specifically designed for installation in lightweight walls. It is the optimum air outlet for comfort areas with medium ceiling heights for heating and cooling. The low sound power level and rapid temperature and speed reduction along the air flow axis ensure exceptional levels of comfort.

The emcoair KSW features telephonic attenuation integrated in the junction box and fixings for cross beams. It can be supplied in variable lengths for installation between the framework on site. The connection is via the spigot mounted on the rear.

SAL35 slot outlets are another element of good indoor climate. This opening stands out on account of the continuously variable controllability of the discharge speed and the air flows by changing the cross-section on the air guide roller. Depending on the application, the SAL35 is supplied either with one slot or multiple slots and can be arranged end to end to form slot bands of any length.

Products used

KSH

KSH

Manually adjustable combination diffuser for installation behind lightweight walls, e.g. dry construction.
KS

KS

Manually adjustable combined slot diffuser for installation in a ceiling box.
KSW

KSW

Manually adjustable combination slot diffuser for installation in lightweight walls, e.g. dry construction.
