Unit Heaters
Ultra Allround
Article no.:
354000174258C1
List price
5,719.00 €
plus VAT
Overview
- Organic shape for optimum air flow
- Lightweight materials for ease of assembly

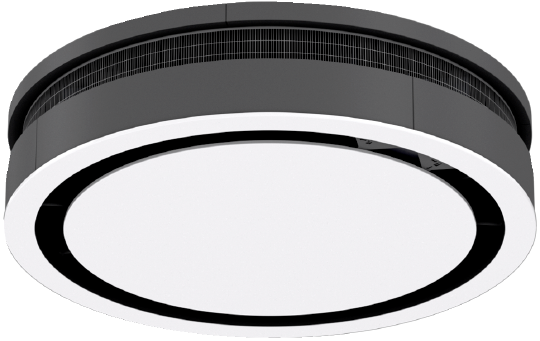

The Ultra Allround is available in two casing versions, powder-coated in a colour of your choice:
- Fully cased in a metal housing for a visually striking air conditioning unit
- Partially encased and integrated into modern black ceiling constructions for an unobtrusive but modern industrial look
- Heating: low-temperature version for operation with very low supply water temperatures
- Cooling: maximum possible cooling output, thanks to large-surface circular heat exchanger
Durable, noise-optimised EC radial fan
- Continuously variable control for optimum control of the air volume
- Easy maintenance through the base of the unit
- Motor protection class IP 54
- Tool-free access for maintenance of the condensate tray and fan etc.
- Base cover with safety mechanism
- Plastic condensate tray
- Disinfectant-resistant
- Can be cleaned from the top of the unit (tool-free access)
- The condensate tray can be removed from the underside of the unit
- Compact design, without separate float, prevents possible leaks at connections
- Extremely quiet pump, lower than 20 dB(A) sound pressure level
- Condensate level determined by a capacitive sensor
- Delivery height up to 20 m
- Alarm contact in the event of a malfunction or too high a water level in the condensate tray
- Accessible from the top of the unit (without tools)
Whether simply electromechanical or via KaControl MC (KNX, Modbus, BACnet): the Ultra Allround can be integrated into any building automation system of your choice.
Calculate performance data
Sound power octave spectrum
The sound power is determined dependent on the use according to DIN EN ISO 3741 (in the echo chamber), according to DIN EN ISO 3744 (in the low-reflective half-space) or according to DIN EN ISO 9614 (intensity method).
The sound pressure level was calculated with an assumed room insulation of 8 dB. This corresponds to a distance of 2 m, a room volume of 100 m², a reverberation time of 0.5 s, and installation above a reflecting surfaces (in accordance with VDI 2081).
Oktave Spektrum
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| A | B | C | D | |
|---|---|---|---|---|
| GWP - Total kg CO2 eq | 2.56E+02 | 1.87E+02 | 1.42E+01 | -7.59E+01 |
| GWP - fossil kg CO2 eq | 2.55E+02 | 1.86E+02 | 1.38E+01 | -7.56E+01 |
| GWP - Biogenic kg CO2 eq | 3.01E-01 | 1.04E+00 | 3.78E-01 | -5.76E-02 |
| GWP - Luluc kg CO2 eq | 5.42E-01 | 4.02E-01 | 1.88E-04 | -2.77E-01 |
| ODP kg CFC-11 eq | 4.24E-06 | 2.03E-06 | 1.29E-08 | -7.07E-07 |
| AP mol H+ eq | 1.61E+00 | 4.52E-01 | 3.35E-03 | -3.42E-01 |
| EP - fresh water kg P eq | 1.42E-02 | 2.67E-02 | 6.86E-06 | -3.62E-03 |
| EP - marine kg P eq | 2.22E-01 | 8.12E-02 | 1.93E-03 | -5.45E-02 |
| EP - country mol N eq | 2.58E+00 | 9.50E-01 | 1.45E-02 | -6.46E-01 |
| POCP kg NMVOC | 1.05E+00 | 3.10E-01 | 5.08E-03 | -2.36E-01 |
| ADPE kg Sb eq | 1.53E-02 | 1.66E-03 | 1.44E-06 | -9.81E-04 |
| ADPF MJ | 3.74E+03 | 2.94E+03 | 8.93E+00 | -8.83E+02 |
| WDP m³ depriv. | -1.34E+01 | 1.02E+01 | 1.44E-01 | -5.68E+00 |
| GWP-GHG kg CO2 eq | 2.57E+02 | 1.87E+02 | 1.42E+01 | -7.61E+01 |
| PM disease inc. | 1.41E-05 | 1.95E-06 | 5.82E-08 | -4.83E-06 |
| IR kBq U-235 eq | 2.29E+02 | 1.08E+01 | 5.03E-03 | -1.36E+00 |
| ETP - FW CTUe | 6.22E+03 | 7.72E+02 | 5.00E+01 | -4.89E+03 |
| HTP - C CTUh | 1.70E-05 | 3.91E-07 | 4.22E-09 | -1.82E-05 |
| HTP - NC CTUh | 9.31E-06 | 1.78E-06 | 2.22E-08 | -1.28E-06 |
| SQP - | 3.44E+03 | 5.11E+02 | 1.17E+01 | -1.48E+02 |
| PERE MJ | 7.32E+02 | 6.97E+02 | 2.12E-01 | -8.71E+01 |
| PERM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT MJ | 7.32E+02 | 6.97E+02 | 2.12E-01 | -8.71E+01 |
| PENRE MJ | 3.74E+03 | 2.94E+03 | 8.93E+00 | -8.83E+02 |
| PENRM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT MJ | 3.74E+03 | 2.94E+03 | 8.93E+00 | -8.83E+02 |
| SM kg | 8.33E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW m³ | -1.23E+01 | 1.01E+01 | 1.51E-01 | -5.79E+00 |
| HWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD kg | 4.44E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR kg | 8.81E+00 | 0.00E+00 | 3.52E+01 | 0.00E+00 |
| MER kg | 1.43E+01 | 0.00E+00 | 4.70E+00 | 0.00E+00 |
| EE (Electrical) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 3.30E+00 |
| EE (Thermal) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 8.83E+01 |
Accessories
Control accessories KaControl
KaController
with one-button operation, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210001
Suitable for: All units with control configuration KaControl C1
Suitable for: All units with control configuration KaControl C1
Article no.:
196003210001
List price
222.00 €
plus VAT
KaController
with one-button operation, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9017 traffic black, made of resistant PVC, Type 3210006
Suitable for: All units with control configuration KaControl C1
Suitable for: All units with control configuration KaControl C1
Article no.:
196003210006
List price
222.00 €
plus VAT
KaController
with side operating keys, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210002
Suitable for: All units with control configuration KaControl C1
Suitable for: All units with control configuration KaControl C1
Article no.:
196003210002
List price
222.00 €
plus VAT
Industry KaController
industrial housing with hinged transparent cover, lockable, with side operating keys, Surface-mounted, Protection class IP 65, Colour grey, made of plastic, Type 3214002
Suitable for: All units with control configuration KaControl C1, ProtecTor and Door Air Curtains
Suitable for: All units with control configuration KaControl C1, ProtecTor and Door Air Curtains
Article no.:
196003214002
List price
800.00 €
plus VAT
room temperature sensor
Wall-mounted, Surface-mounted, Protection class IP 30, Colour similar to RAL 9010 pure white, made of plastic, Type 3250110
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250110
List price
58.00 €
plus VAT
Outside temperature sensor/industrial temperature sensor
Surface-mounted, Protection class IP 65, Colour similar to RAL 9010 pure white, Type 3250112
Suitable for: All units with control configuration KaControl C1, ProtecTor and Door Air Curtains
Suitable for: All units with control configuration KaControl C1, ProtecTor and Door Air Curtains
Article no.:
196003250112
List price
58.00 €
plus VAT
Clip-on pipe sensor
to detect the medium temperature, Protection class IP 67, Temperature setting range -20 - 70 °C, Colour black, Type 3250115
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250115
List price
56.00 €
plus VAT
KaControl Tableau SEL4.0
with touch terminal, to monitor and control up to 60 Kampmann secondary air units (maximum 25 groups, maximum 6 units per group), 230 V AC, 30 W, Wall-mounted, Protection class IP 54, Colour RAL 7035 grey, Type 3232223
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101
Article no.:
196003232223
List price
2,463.00 €
plus VAT
Serial KNX card
for integration into a KNX/EIB network, interface PCOS00KXN0, Type 3260702
The communication card slots into the free interface on the PCB.
Suitable for: All units with control configuration KaControl C1
The communication card slots into the free interface on the PCB.
Suitable for: All units with control configuration KaControl C1
Article no.:
196003260702
List price
362.00 €
plus VAT
Serial CANbus card
to increase the number of units in a single-circuit system from 7 to a maximum of 30 units, one required per unit, Extension of the cable length from the first to the last unit from 30 m to 500 m, Can only be used with the KaControl -C1 control version!The room temperature cannot be recorded by a room sensor when using CanBus cards., Type 3260301
Suitable for: All units with control configuration KaControl C1
Suitable for: All units with control configuration KaControl C1
Article no.:
196003260301
List price
125.00 €
plus VAT
Serial Modbus card
Type 3260101
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: All units with control configuration KaControl C1
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: All units with control configuration KaControl C1
Article no.:
196003260101
List price
117.00 €
plus VAT
KaControl visualisation
for the central monitoring and control of air handling units, Type 3210701
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101, 100, Units
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101, 100, Units
Article no.:
196003210701
List price
7,896.00 €
plus VAT
KaControl visualisation
for the central monitoring and control of air handling units, Type 3210702
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101, 300, Units
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101, 300, Units
Article no.:
196003210702
List price
8,852.00 €
plus VAT
Valve kits
2-way valve kit
as a straight valve body, Connection 1'', kvs value 3.3 m³/h, Type 31911
Suitable for: all unit heaters
Suitable for: all unit heaters
Article no.:
153000031911
List price
97.00 €
plus VAT
Control shut-off valve
for automatic flow and temperature control, Connection 1'', kvs value 3.1 m³/h, Type 31950
Suitable for: Model size 4 - 5, TOP, Ultra and Unit Heaters, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20
Suitable for: Model size 4 - 5, TOP, Ultra and Unit Heaters, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20
Article no.:
153000031950
List price
187.00 €
plus VAT
Control shut-off valve
for automatic flow and temperature control, Connection 1'', kvs value 4.1 m³/h, Type 31951
Suitable for: Model size 4 - 6, TOP, Ultra and Unit Heaters, Min. Flow volume 400 l/h, max. Flow volume 2500 l/h, DN 25
Suitable for: Model size 4 - 6, TOP, Ultra and Unit Heaters, Min. Flow volume 400 l/h, max. Flow volume 2500 l/h, DN 25
Article no.:
153000031951
List price
290.00 €
plus VAT
Valve actuators, supplied loose
valve actuator
Drive T, 24 V AC/DC, 2-point, normally closed, 1.5m connecting line-AEH, PVC, VA10N, 1 W, Protection class III, Protection class IP 54 Cable length 0.12 m, supplied separately, made of Polyamide
Article no.:
1960TS8P04050010B
List price
65.00 €
plus VAT
Filter
Recirculating air filter element
for direct mounting on the unit inlet with recirculation air units, ISO Coarse 45% (G3) filter
Suitable for: Model size 1 - 2
Suitable for: Model size 1 - 2
Article no.:
354000070003
List price
104.00 €
plus VAT
Galvanised steel components

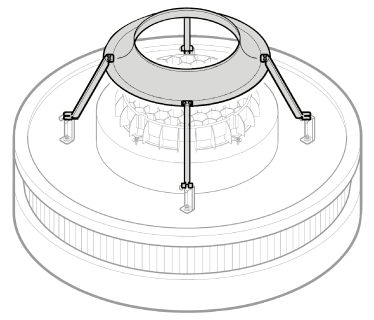

Primary air-pipe connector
round, for the suction-side connection of the Ultra Allround to a round primary air pipe, sendzimir galvanised
Suitable for: Model size 1 - 2
Suitable for: Model size 1 - 2
Article no.:
354000070004
List price
157.00 €
plus VAT
Additional colours
Surcharge for RAL standard colour
Price per unit.
Suitable for: Ultra Allround and Unit Heaters, partially cased
Suitable for: Ultra Allround and Unit Heaters, partially cased
Article no.:
354007010011
List price
33.00 €
plus VAT
Surcharge for RAL colour of your choice
Minimum quantity = 7 units per order and colour, The number of units below the minimum quantity must be requested and calculated separately.
Price per unit.
Suitable for: Ultra Allround and Unit Heaters, partially cased
Price per unit.
Suitable for: Ultra Allround and Unit Heaters, partially cased
Article no.:
354007010021
List price
147.00 €
plus VAT
Surcharge for change of colour
of the powder-coating to the colour version quoted., The surcharge includes the conversion and cleaning of the powder-coating to the requested colour and will be charged once per project and call-off order.
Suitable for: Ultra Allround and Unit Heaters
Suitable for: Ultra Allround and Unit Heaters
Article no.:
354007010010
List price
415.00 €
plus VAT
Downloads
Declarations/Certificates
Certificate ISO 50001:2018
PDF
(116 kB)
EU Declaration of Conformity for unit heaters
PDF
(369 kB)
ErP 2016-2281 Data Sheet for Ultra Allround
PDF
(205 kB)
Digital EPD database for Ultra Allround size 2 partially encased
EPD Ultra Allround size 2 partially cased
PDF
(937 kB)
Manuals
System Manual KaControl MC
PDF
(4.6 MB)
KaControl MC - Multi Connect
PDF
(1.3 MB)
Ultra Allround unit heaters
PDF
(8.2 MB)
Ultra Allround unit heaters, brief instructions
PDF
(6.2 MB)
Technical catalogues
Ultra Allround
PDF
(5 MB)
KaControl MC - Multi Connect
PDF
(2.2 MB)
CAD-Drawings
Ultra Allround Lufterhitzer, Heizen oder Kuehlen [mm]
PDF
(701 kB)
Ultra Allround Lufterhitzer, Heizen oder Kuehlen [Inch]
PDF
(700 kB)
Ultra Allround Lufterhitzer, Heizen oder Kuehlen [mm]
DWG
(2.4 MB)
Ultra Allround Lufterhitzer, Heizen oder Kuehlen [Inch]
DWG
(2.4 MB)
BIM data (Building Information Modeling)
Kampmann Group BIM data
