basic unit

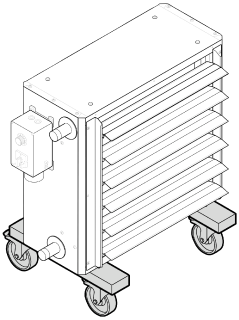

Kampmann site heater for wall or ceiling mounting with standard threaded suspensions or installation on a mobile frame on site. Sendzimir-galvanised housing, complete with motor guard as per DIN EN 294, fitted with single-row louvre.
Heat exchanger
High-output heat exchanger, consisting of round copper tubes with aluminium fins, suitable for use with LPHW.
| System | | 2-pipe |
| Max. operating pressure | bar | 16.0 |
| Max. entering water temperature | °C | 120 |
| Min. entering water temperature | °C | 35 |
| Max. air inlet temp. | °C | 40 |
| Max. glycol volume | % | 50 |
Fan
Energy-saving EC fan with 0-10 V input for continuously variable speed control. All rotating parts have low-noise and maintenance-free bearings. Factory-wired. Overtemperature protection of the fan by active temperature management.
- Axial fan
- Integrated motor protection.
Control
- With an external connection box.
Configuration
| Model size | | 6 |
| Width | mm | 740 |
| Height | mm | 700 |
| Length | mm | 320 |
| Weight | kg | 41.6 |
| Water content | l | 4.5 |
| Connection | | 1 1/4'' |
