basic unit

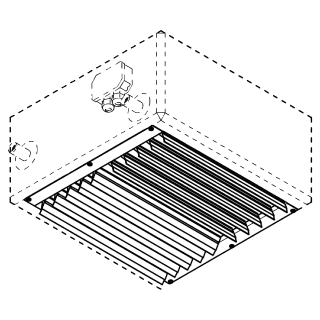

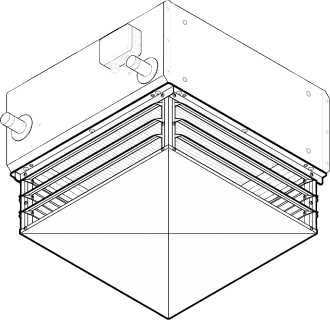

Kampmann Resistent unit heater for wall- or ceiling-mounting. Housing made of stainless steel, V4A, neutral colour, resistant. Attractive design form, thanks to 45-degree bevels on all sides. Additional outlet air and inlet aid components can be screwed on. LABS compliant according to VDMA 24364, category A1/B1/B2/C1/C2-L and B1/C1/C2-W.
Heat exchanger
High-output heat exchanger, hot-dip galvanised steel with ellipse-shaped core pipe with steel fins, permanently connected by hot-dip galvanising, suitable for LPHW and thermal oil.
| System | | 2-pipe |
| Max. operating pressure | bar | 16 |
| Max. entering water temperature | °C | 120 |
| Min. entering water temperature | °C | 35 |
| Max. air inlet temp. | °C | 40 |
| Max. glycol volume | % | 50 |
Fan
Energy-saving EC fan with 0-10 V input for continuously variable speed control. All rotating parts have low-noise and maintenance-free bearings. Factory-wired. Overtemperature protection of the fan by active temperature management. Integrated motor protection.
Protection class IP 54
Control
With an external connection box.
Configuration
| Model size | | 4 |
| Width | mm | 540 |
| Height | mm | 540 |
| Length | mm | 320 |
| Weight | kg | 57.9 |
| Water content | l | 2.1 |
| Connection | | 1'' |
