Venkon XL

Fan coils, recirculating air. Heating, cooling, for raised external pressure.
Venkon XL

Overview

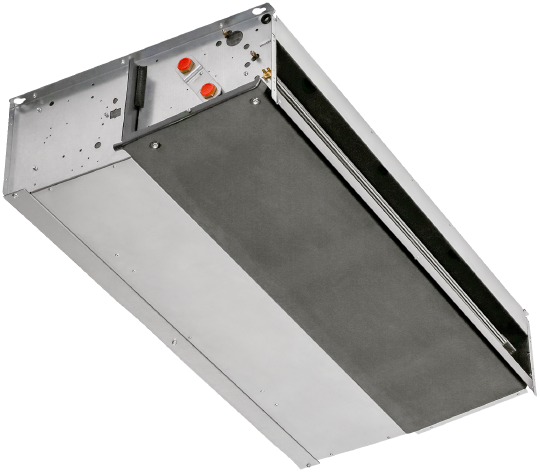

This fan coil guarantees XL outputs – even with high air-side pressure loss requirements. The EC fans used can be continuously variably controlled by a 0-10 V DC signal.
The sheet-steel housing helps to reduce noise and is also insulated against thermal losses, thanks to its integral insulation.
The Venkon XL fan coil is ideal for installation in suspended ceilings on account of its slimline design. It can be flexible combined with a connection unit for round pipes to route treated air to targeted ventilation terminal components.
The large removable service hatch provides for quick and easy maintenance.
You have the choice of four models for each application and building of any kind that needs to be cooled and/or heated.
The generously dimensioned heat exchanger ensures the highest possible output.
The Venkon XL is fitted as standard with the ISO Coarse filter. Optionally, you can opt for the fan coil with ePM10>50% (M5) filter.
  • Optionally available
  • Max. delivery height: 8 m at 4.5 l/h
  • Max. pump volume: 18 l/h at 0.5 m
The suspension and connecting bracket for ceiling suspension also ensures an airtight connection of the Venkon XL unit to the round pipe connection unit.
Water and electricity connections are routed out of the unit at the same end for the simplest possible connection.
  • The Venkon XL fan coil is equipped with electromechanical control as standard, with optional differential pressure switch and KaControl.
  • The optional Modbus interface allows units with KaControl configuration to be networked into systems individually or in groups with factory-programmed higher-level Kampmann system controllers.
The condensation tray continues as far as the heat exchanger connection area to collect any condensation produced by the valves.

References

AMERON Alpsee Resort & Spa, Hohenschwangau

AMERON Alpsee Resort & Spa, Hohenschwangau

continue
Hotel Star Inn, Heidelberg

Hotel Star Inn, Heidelberg

continue
Hotel Ross, Meissen

Hotel Ross, Meissen

continue
Hotel Looken Inn, Lingen

Hotel Looken Inn, Lingen

continue
Hotel Roomers, Baden-Baden

Hotel Roomers, Baden-Baden

continue

Kampmann Today

Product Selection

Your selection     4-pipe ISO Coarse filter electromechanical Left Reset all

Your search resulted in 14 hits

Model size Version Number of connecting pieces System Filter version

Cooling output1)

(kW)

Heat output2)

(kW)

 Control option Water connections Calculation
1 Basic unit 4-pipe ISO Coarse filter 0.7 – 3.4 1.5 – 4.7 electromechanical Left Calculate
1 Basic unit with circular duct connecting unit 2 4-pipe ISO Coarse filter 0.7 – 3.4 1.5 – 4.7 electromechanical Left Calculate
2 Basic unit 4-pipe ISO Coarse filter 2.8 – 7.9 4 – 9.9 electromechanical Left Calculate
2 Basic unit with circular duct connecting unit 3 4-pipe ISO Coarse filter 2.8 – 7.9 4 – 9.9 electromechanical Left Calculate
2 Basic unit with circular duct connecting unit 4 4-pipe ISO Coarse filter 2.8 – 7.9 4 – 9.9 electromechanical Left Calculate
2 Basic unit with circular duct connecting unit 5 4-pipe ISO Coarse filter 2.8 – 7.9 4 – 9.9 electromechanical Left Calculate
3 Basic unit 4-pipe ISO Coarse filter 2.7 – 11.1 4.5 – 16.2 electromechanical Left Calculate
3 Basic unit with circular duct connecting unit 4 4-pipe ISO Coarse filter 2.7 – 11.1 4.5 – 16.2 electromechanical Left Calculate
3 Basic unit with circular duct connecting unit 5 4-pipe ISO Coarse filter 2.7 – 11.1 4.5 – 16.2 electromechanical Left Calculate
3 Basic unit with circular duct connecting unit 6 4-pipe ISO Coarse filter 2.7 – 11.1 4.5 – 16.2 electromechanical Left Calculate
4 Basic unit 4-pipe ISO Coarse filter 5.6 – 16.9 8.4 – 21.9 electromechanical Left Calculate
4 Basic unit with circular duct connecting unit 5 4-pipe ISO Coarse filter 5.6 – 16.9 8.4 – 21.9 electromechanical Left Calculate

1)At CHW 7/12 °C, tL1 = 27 °C, 48% relative humidity

2)At LPHW 75/65 °C, tL1 = 20 °C

Downloads

Declarations/Certificates
TÜV Certificate ISO 9001:2008
PDF (132 kB)
EU Declaration of Conformity Venkon XL fan coils (FCU)
PDF (175 kB)
Cross-product information
Kampmann hotel references
PDF (6.2 MB)
Spezial hotels
PDF (2.8 MB)
Overview products, products international
PDF (4.6 MB)
Spezial retail chains
PDF (3.4 MB)
Spezial office and commercial building
PDF (2.7 MB)
Technical catalogues
Venkon XL fan coils (FCU)
PDF (6.1 MB)
Installation manuals
Venkon XL fan coils (FCU)
PDF (5.6 MB)
