Overview
Do heat pumps only work with underfloor heating? We prove the opposite! The PowerKon LT heat pump-based heater is the ideal choice, especially in homes – in existing and new houses. The wall-mounted unit is operated with low flow temperatures and is also significantly more responsive than underfloor heating.
Heat pumps are efficient when operated with low flow temperatures of around 35 °C. Kampmann’s PowerKon LT heat pump-based heater copes with this magnificently. Unlike conventional radiators! The heat pump is 25% more efficient thanks to the PowerKon LT, saving energy and operating costs.
PowerKon LT units are the easy-to-install solution when switching from an oil or gas heating system to a heat pump: you don’t need to dig up the floors, like you do with underfloor heating. Or, in other words: you can continue to live in the house.

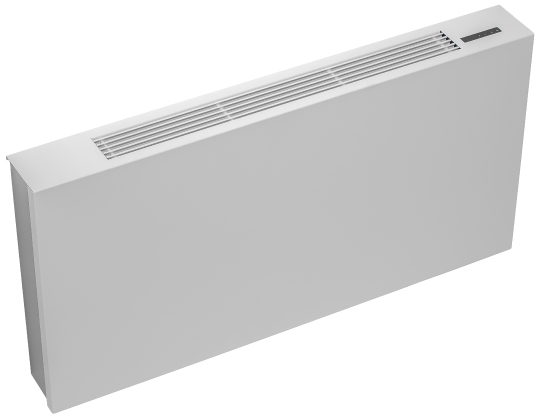

The heat pump-based heater blends perfectly into any space, thanks to its visually contemporary and slimline design. As the air intake opening is located on the underside of the product, the visible side of the PowerKon LT is minimalist and attractive. Its shape also ensures simple inspection and cleaning.
The PowerKon LT uses the heat pump’s cooling function for pleasant and water-based temperature control of the premises. For a pleasant climate of well-being on warm days.
PowerKon LT units heat and cool both comfortably and hygienically. They comply with all all hygiene criteria (construction, components, cleanability and maintenance) and are therefore certified to VDI 6022.
The use of EPP ensures an optimum air flow, resulting in maximum air volumes at low sound pressure levels. EPP is also a sustainable material as it is 100% recyclable.
Heat Pump Ready
This product is suitable for use with a heat pump or other low temperature system. Reduce your energy requirements, operating costs and emissions with our Heat Pump ready range of products. And make you and your customers less dependent on fossil fuels.
We have appropriate heat pump solutions for many applications, from industrial sheds, office buildings, hotels to private homes.
→ Discover more- Optimised for efficient heat pump system temperatures
- Composite copper pipes and aluminium fins for the best possible heat transfer
- Quiet tangential fan for noise-sensitive applications
- Continuously variable fan speed control for on-demand heat supply
- Efficient EC motor with low energy consumption
- Lightweight so easy to install
- Simple and secure fixing by means of the mounting rail supplied
- Includes drilling template for fast and precise positioning
- Easy replacement in existing buildings
- Versatile connection options are possible with the PowerKon LT
- Connection either on the left or right
- The casing of the PowerKon LT enables existing pipes from the wall or floor to be connected for the simple replacement of conventional radiators
- Optional valve kits consisting of thermostatic valve, actuator, return valve and corrugated pipes for flexible and easy connection
- Optionally supplied loose or factory-fitted
- Automatic hydraulic balancing by differential pressure-independent valves
- ISO Coarse class air filter
- Filters the dust from the room air
- Guards against accidental intrusion and ingress of dirt
- Simple to vacuum when installed for effortless cleaning
- Integrated condensate collection pan with free drainage for heat exchangers and valves
- Made of (EPP ) with a specially treated surface for safe drainage of any condensate produced
Choice of three control methods:
- Intuitive touch display with set temperature setting and automatic mode
- Operation with conventional or smart thermostatic head (by others and only heating is possible)
- Control by central I&C technology or room control units
