Fan Coils
KaDeck
Article no.:
326116462111C1
List price
3,821.00 €
plus VAT
Overview
- Either suitable for 600 x 600 or 625 x 625 mm ceiling grid
- RAL 9016 (traffic white) ceiling panel and frame, customised colour on request
- Ceiling panel can be opened without tools, industrial-quality hinges and closures for an extremely long service life
- Internal cleanable ISO Coarse air filter to protect the internal components from dust
- Rigidity and strength, thanks to galvanised steel frame
- Thermal and acoustic isolation by foamed EPP carcass free of heat bridges
- Organic internal forms for ease of cleaning
- Complete with ceiling panel that can be opened without the need for tools and condensate tray
- No additional on-site maintenance access openings are required
- All components can be accessed once the condensate tray has been removed.
- Easy cleaning of all surfaces along which air flows
- Valve installation (adjustable 2-way or differential pressure-independent) within the housing
- Condensate tray can be removed without tools for cleaning and maintenance
- Made of EPP for thermal and acoustic isolation
- Section that carries condensate consists of an ABS plastic tray resistant to disinfectant
- Gradient on all sides for fast and residue-free condensate drainage from the section through which air flows
- Primary air can be introduced throughthe KaDeck
- Two nozzles can be connected on each head side
- Easy removal of the EPP closures, insertion of optional connection spigots for on-site primary air supply
- Primary air is directed through the heat exchanger for temperature control
- Noise-optimised, smooth-running three-wire, continuously variable and energy-saving EC motor
- Tangential roller sitting in CFD aerodynamically optimised EPP/aluminium contour
- Utility model-protected bypass motor cooling to prevent the build-up of heat in heating mode to increase the motor’s service life by 40%
- Ceiling-mounted frame optionally available as an accessory
- For a visually clean view of the unit
- Whether connected from the top or side a wide range of versions available for every application
- No adverse impact on output
- Simple assembly
- Unit design and component selection optimised for ease of assembly and operation
- Total unit weight reduced to 60% compared to a steel sheet design, for ceiling installation gentle on the back
- EPP connection areas, with supply/return, primary air labelled
- The electrical connection is easily accessible on one side; all components are pre-wired
- The cables are firmly inserted via pre-assembled PG screw connections and routed in the KaDeck along predefined cable paths
- Includes the following in the wet cooling configuration scope of delivery
- Compact design, without separate float, prevents possible leaks at connections.
- Extremely smooth-running pump, sound pressure level below 20 dB(A), speed and flow rate adapts to the condensate level in the pump sump
- The condensate level is determined by a capacitive sensor, preventing the float switch from sticking
- Maximum delivery height up to 6 m
- Alarm contact in the event of a malfunction or too high a water level in the condensate tray
Calculate performance data
Sound power octave spectrum
The sound power is determined depending on the use according to DIN EN ISO 3741 (in the echo chamber), according to DIN EN ISO 3744 (in the low-reflective half-space) or according to DIN EN ISO 9614 (intensity method).
Oktave Spektrum
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| Impact Category | A | B | C | D |
|---|---|---|---|---|
| GWP - Fossil | kg CO₂ eq | 1.66E+02 | 1.72E+01 | 3.96E+00 | -4.74E+01 |
| GWP - Biogenic | kg CO₂ eq | 2.94E+00 | 1.40E+00 | 5.64E-02 | -5.14E-01 |
| GWP - Luluc | kg CO₂ eq | 1.04E+00 | 8.00E-02 | 9.62E-05 | -6.11E-02 |
| GWP - Total | kg CO₂ eq | 1.70E+02 | 1.87E+01 | 4.02E+00 | -4.80E+01 |
| ODP | kg CFC-11 eq | 3.43E-06 | 2.36E-07 | 6.11E-09 | -9.45E-07 |
| AP | mol H+ eq | 1.77E+00 | 9.78E-02 | 1.12E-03 | -8.74E-01 |
| EP - Freshwater | kg P eq | 1.47E-01 | 2.50E-02 | 2.11E-05 | -7.75E-02 |
| EP - Marine | kg N eq | 1.99E-01 | 1.52E-02 | 4.51E-04 | -7.01E-02 |
| EP - Terrestrial | mol N eq | 2.13E+00 | 1.33E-01 | 4.75E-03 | -8.42E-01 |
| POCP | kg NMVOC | 7.70E-01 | 4.07E-02 | 1.68E-03 | -2.94E-01 |
| ADPE | kg Sb eq | 1.39E-02 | 7.42E-04 | 5.52E-07 | -9.15E-03 |
| ADPF | MJ | 2.29E+03 | 2.56E+02 | 3.28E+00 | -7.03E+02 |
| WDP | m³ depriv. | 3.42E+01 | 1.84E+00 | 5.13E-02 | -1.54E+01 |
| PM | disease inc. | 1.25E-05 | 4.84E-07 | 2.39E-08 | -3.37E-06 |
| IR | kBq U-235 eq | 1.94E+01 | 3.86E+00 | 7.03E-03 | -1.13E+01 |
| HTP - C | CTUh | 5.96E-07 | 2.25E-08 | 1.04E-08 | -2.17E-07 |
| HTP - NC | CTUh | 1.61E-05 | 8.59E-07 | 6.78E-07 | -9.57E-06 |
| SQP | Pt | 9.42E+02 | 7.03E+01 | 4.40E+00 | -3.19E+02 |
| PERE | MJ | 4.17E+02 | 7.42E+01 | 1.17E-01 | -1.02E+02 |
| PERM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT | MJ | 4.17E+02 | 7.42E+01 | 1.17E-01 | -1.02E+02 |
| PENRE | MJ | 2.29E+03 | 2.56E+02 | 2.34E+00 | -7.03E+02 |
| PENRM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT | MJ | 2.29E+03 | 2.56E+02 | 2.34E+00 | -7.03E+02 |
| SM | kg | 4.36E-01 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW | m³ | 1.89E+00 | 1.36E-01 | 1.87E-02 | -4.03E-01 |
| HWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD | kg | 6.04E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR | kg | 0.00E+00 | 0.00E+00 | 1.68E+01 | 0.00E+00 |
| MER | kg | 0.00E+00 | 0.00E+00 | 1.04E+00 | 0.00E+00 |
| EE (Electrical) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| EE (Thermal) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| *GWP-GHG | kg CO₂ eq | 1.69E+02 | 1.75E+01 | 3.96E+00 | -4.77E+01 |
Accessories
Control accessories KaControl
KaController
with one-button operation, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210001
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210001
List price
222.00 €
plus VAT
KaController
with one-button operation, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9017 traffic black, made of resistant PVC, Type 3210006
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210006
List price
222.00 €
plus VAT
KaController
with side operating keys, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210002
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210002
List price
222.00 €
plus VAT
Room temperature sensor
Wall-mounted, Surface-mounted, Protection class IP 30, Colour similar to RAL 9010 pure white, made of plastic, Type 3250110
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250110
List price
58.00 €
plus VAT
Clip-on pipe sensor
to detect the medium temperature, Protection class IP 67, Temperature setting range -20 - 70 °C, Colour black, Type 3250115
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250115
List price
56.00 €
plus VAT
Serial KNX card
for integration into a KNX/EIB network, interface PCOS00KXN0, Type 3260702
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Article no.:
196003260702
List price
362.00 €
plus VAT
Serial CANbus card
to increase the number of units in a single-circuit system from 7 to a maximum of 30 units, one required per unit, Extension of the cable length from the first to the last unit from 30 m to 500 m, Can only be used with the KaControl -C1 control version!The room temperature cannot be recorded by a room sensor when using CanBus cards., Type 3260301
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003260301
List price
125.00 €
plus VAT
Serial Modbus card
Type 3260101
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Article no.:
196003260101
List price
117.00 €
plus VAT

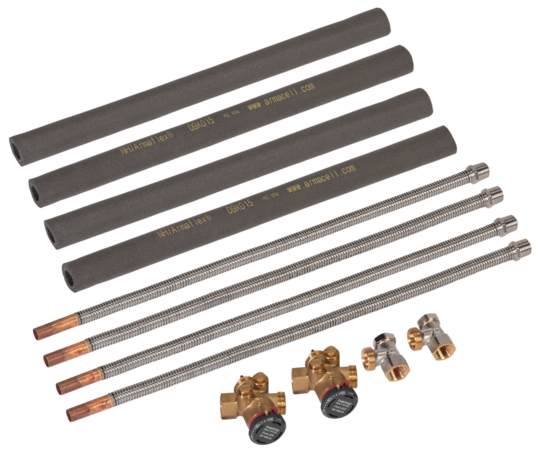

Valve kits
Valve kit
Connection R1/2” male thread Cu-DN12, 4-pipe, Actuator, return shut-off valve and flexible connection, corrugated stainless steel pipe flow and return, 2-way valve, pre-settable, 24 V 2-point actuator, 50 Hz, Protection class IP 54, water with glycol <50%, supplied separately
Suitable for: KaDeck Fan Coils
Suitable for: KaDeck Fan Coils
Article no.:
326007110011
List price
374.00 €
plus VAT
Differential pressure-independent valve kit
Connection R1/2” male thread Cu-DN12, 4-pipe, Actuator, return shut-off valve and flexible connection, corrugated stainless steel pipe flow and return, 24 V 2-point actuator, 50 Hz, Protection class IP 54, water with glycol <50%, supplied separately
Suitable for: KaDeck Fan Coils, Min. Flow volume 35 l/h, max. Flow volume 420 l/h
Suitable for: KaDeck Fan Coils, Min. Flow volume 35 l/h, max. Flow volume 420 l/h
Article no.:
326007110013
List price
514.00 €
plus VAT
Differential pressure-independent valve kit
Connection R1/2” male thread Cu-DN12, 4-pipe, Actuator, return shut-off valve and flexible connection, corrugated stainless steel pipe flow and return, 24 V 2-point actuator, 50 Hz, Protection class IP 54, water with glycol <50%, supplied separately
Suitable for: KaDeck Fan Coils, Min. Flow volume 150 l/h, max. Flow volume 1050 l/h
Suitable for: KaDeck Fan Coils, Min. Flow volume 150 l/h, max. Flow volume 1050 l/h
Article no.:
326007110015
List price
596.00 €
plus VAT
Attachments
Primary air connection spigot
Connection DN 80, for the connection of external primary air
Suitable for: KaDeck Fan Coils
Suitable for: KaDeck Fan Coils
Article no.:
326007010104
List price
56.00 €
plus VAT
Additional colours
surcharge for RAL standard colour
Price per unit.
Suitable for: KaDeck Fan Coils
Suitable for: KaDeck Fan Coils
Article no.:
326007010011
List price
35.00 €
plus VAT
surcharge for RAL colour of your choice
Minimum quantity = 7 units per order and colour, The number of units below the minimum quantity must be requested and calculated separately.
Price per unit.
Suitable for: KaDeck Fan Coils
Price per unit.
Suitable for: KaDeck Fan Coils
Article no.:
326007010021
List price
133.00 €
plus VAT
surcharge for change of colour
of the powder-coating to the colour version quoted., The surcharge includes the conversion and cleaning of the powder-coating to the requested colour and will be charged once per project and call-off order.
Suitable for: KaDeck or KaDeck UC Fan Coils
Suitable for: KaDeck or KaDeck UC Fan Coils
Article no.:
326007010010
List price
415.00 €
plus VAT
