Fan Coils

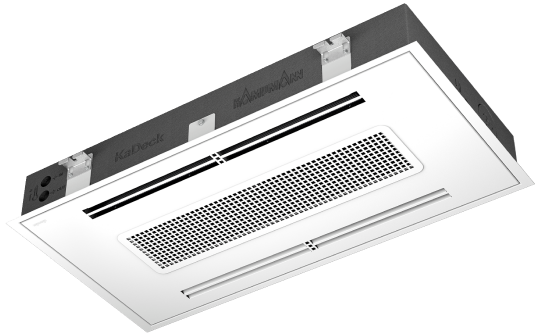

KaDeck
Article no.:
32611621211100
List price
2,654.00 €
plus VAT
Overview
- Either suitable for 600 x 600 or 625 x 625 mm ceiling grid
- RAL 9016 (traffic white) ceiling panel and frame, customised colour on request
- Ceiling panel can be opened without tools, industrial-quality hinges and closures for an extremely long service life
- Internal cleanable ISO Coarse air filter to protect the internal components from dust
- Rigidity and strength, thanks to galvanised steel frame
- Thermal and acoustic isolation by foamed EPP carcass free of heat bridges
- Organic internal forms for ease of cleaning
- Complete with ceiling panel that can be opened without the need for tools and condensate tray
- No additional on-site maintenance access openings are required
- All components can be accessed once the condensate tray has been removed.
- Easy cleaning of all surfaces along which air flows
- Valve installation (adjustable 2-way or differential pressure-independent) within the housing
- Condensate tray can be removed without tools for cleaning and maintenance
- Made of EPP for thermal and acoustic isolation
- Section that carries condensate consists of an ABS plastic tray resistant to disinfectant
- Gradient on all sides for fast and residue-free condensate drainage from the section through which air flows
- Primary air can be introduced throughthe KaDeck
- Two nozzles can be connected on each head side
- Easy removal of the EPP closures, insertion of optional connection spigots for on-site primary air supply
- Primary air is directed through the heat exchanger for temperature control
- Noise-optimised, smooth-running three-wire, continuously variable and energy-saving EC motor
- Tangential roller sitting in CFD aerodynamically optimised EPP/aluminium contour
- Utility model-protected bypass motor cooling to prevent the build-up of heat in heating mode to increase the motor’s service life by 40%
- Ceiling-mounted frame optionally available as an accessory
- For a visually clean view of the unit
- Whether connected from the top or side a wide range of versions available for every application
- No adverse impact on output
- Simple assembly
- Unit design and component selection optimised for ease of assembly and operation
- Total unit weight reduced to 60% compared to a steel sheet design, for ceiling installation gentle on the back
- EPP connection areas, with supply/return, primary air labelled
- The electrical connection is easily accessible on one side; all components are pre-wired
- The cables are firmly inserted via pre-assembled PG screw connections and routed in the KaDeck along predefined cable paths
- Includes the following in the wet cooling configuration scope of delivery
- Compact design, without separate float, prevents possible leaks at connections.
- Extremely smooth-running pump, sound pressure level below 20 dB(A), speed and flow rate adapts to the condensate level in the pump sump
- The condensate level is determined by a capacitive sensor, preventing the float switch from sticking
- Maximum delivery height up to 6 m
- Alarm contact in the event of a malfunction or too high a water level in the condensate tray
Calculate performance data
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| Impact Category | A | B | C | D |
|---|---|---|---|---|
| GWP - Fossil | kg CO₂ eq | 1.64E+02 | 1.86E+01 | 2.92E+00 | -4.74E+01 |
| GWP - Biogenic | kg CO₂ eq | 2.96E+00 | 1.46E+00 | 5.61E-02 | -5.14E-01 |
| GWP - Luluc | kg CO₂ eq | 1.04E+00 | 8.26E-02 | 1.01E-04 | -6.11E-02 |
| GWP - Total | kg CO₂ eq | 1.68E+02 | 2.01E+01 | 2.98E+00 | -4.80E+01 |
| ODP | kg CFC-11 eq | 3.42E-06 | 2.56E-07 | 8.09E-09 | -9.45E-07 |
| AP | mol H+ eq | 1.77E+00 | 1.05E-01 | 1.04E-03 | -8.74E-01 |
| EP - Freshwater | kg P eq | 1.47E-01 | 2.55E-02 | 2.18E-05 | -7.75E-02 |
| EP - Marine | kg N eq | 1.98E-01 | 1.67E-02 | 4.15E-04 | -7.01E-02 |
| EP - Terrestrial | mol N eq | 2.12E+00 | 1.47E-01 | 4.26E-03 | -8.42E-01 |
| POCP | kg NMVOC | 7.65E-01 | 4.54E-02 | 1.53E-03 | -2.94E-01 |
| ADPE | kg Sb eq | 1.39E-02 | 7.48E-04 | 5.69E-07 | -9.15E-03 |
| ADPF | MJ | 2.25E+03 | 2.72E+02 | 3.25E+00 | -7.03E+02 |
| WDP | m³ depriv. | 3.29E+01 | 1.87E+00 | 5.24E-02 | -1.54E+01 |
| PM | disease inc. | 1.25E-05 | 5.85E-07 | 2.28E-08 | -3.37E-06 |
| IR | kBq U-235 eq | 1.93E+01 | 3.96E+00 | 7.38E-03 | -1.13E+01 |
| HTP - C | CTUh | 5.96E-07 | 2.46E-08 | 1.03E-08 | -2.17E-07 |
| HTP - NC | CTUh | 1.61E-05 | 8.82E-07 | 6.77E-07 | -9.57E-06 |
| SQP | Pt | 9.36E+02 | 7.57E+01 | 4.35E+00 | -3.19E+02 |
| PERE | MJ | 4.16E+02 | 7.58E+01 | 1.20E-01 | -1.02E+02 |
| PERM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT | MJ | 4.16E+02 | 7.58E+01 | 1.20E-01 | -1.02E+02 |
| PENRE | MJ | 2.25E+03 | 2.72E+02 | 3.25E+00 | -7.03E+02 |
| PENRM | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT | MJ | 2.25E+03 | 2.72E+02 | 3.25E+00 | -7.03E+02 |
| SM | kg | 4.36E-01 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW | m³ | 1.89E+00 | 1.53E-01 | 2.83E-03 | -4.03E-01 |
| HWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD | kg | 5.90E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU | kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR | kg | 0.00E+00 | 0.00E+00 | 1.68E+01 | 0.00E+00 |
| MER | kg | 0.00E+00 | 0.00E+00 | 1.04E+00 | 0.00E+00 |
| EE (Electrical) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| EE (Thermal) | MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| *GWP-GHG | kg CO₂ eq | 1.68E+02 | 1.89E+01 | 2.92E+00 | -4.77E+01 |
Accessories
Control accessories electromechanical 230 V
Room thermostat
Heating/Cooling, 2- and 4-pipe, 3-stage. Only in conjunction with valves/valve kits with actuator, with OFF/Manual/Automatic fan switchover, 230 V AC, Open/Closed, Surface-mounted, Protection class II, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour similar to RAL 9010 pure white, Type 30155
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
Article no.:
196000030155
List price
262.00 €
plus VAT
Clock thermostat
Heating/Cooling, 2- and 4-pipe, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, 1 W, flush-mounted, Protection class II, Protection class IP 30, Colour similar to RAL 9010 pure white, Type 30256
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
Article no.:
196000030256
List price
416.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, Without Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148941
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148941
List price
433.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, Without Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148942
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148942
List price
433.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148943
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148943
List price
463.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148944
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148944
List price
463.00 €
plus VAT
Valve kits

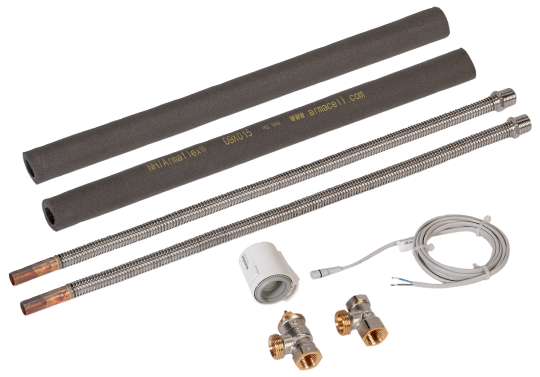

Valve kit
Connection R1/2” male thread Cu-DN12, 2-pipe, Actuator, return shut-off valve and flexible connection, corrugated stainless steel pipe flow and return, 2-way valve, pre-settable, 24 V 2-point actuator, 50 Hz, Protection class IP 54, water with glycol <50%, supplied separately
Suitable for: KaDeck Fan Coils
Suitable for: KaDeck Fan Coils
Article no.:
326007110001
List price
186.00 €
plus VAT

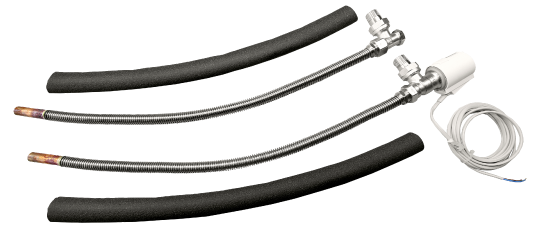

Differential pressure-independent valve kit
Connection R1/2” male thread Cu-DN12, 2-pipe, Actuator, return shut-off valve and flexible connection, corrugated stainless steel pipe flow and return, 24 V 2-point actuator, 50 Hz, Protection class IP 54, water with glycol <50%, supplied separately
Suitable for: KaDeck Fan Coils, min. flow volume 35 l/h, max. flow volume 420 l/h
Suitable for: KaDeck Fan Coils, min. flow volume 35 l/h, max. flow volume 420 l/h
Article no.:
326007110003
List price
257.00 €
plus VAT

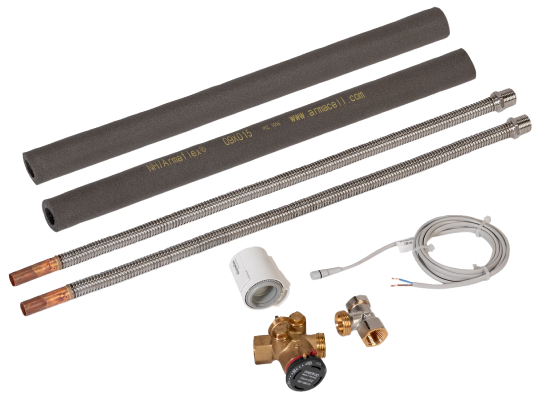

Differential pressure-independent valve kit
Connection R1/2” male thread Cu-DN12, 2-pipe, Actuator, return shut-off valve and flexible connection, corrugated stainless steel pipe flow and return, 24 V 2-point actuator, 50 Hz, Protection class IP 54, water with glycol <50%, supplied separately
Suitable for: KaDeck Fan Coils, min. flow volume 150 l/h, max. flow volume 1050 l/h
Suitable for: KaDeck Fan Coils, min. flow volume 150 l/h, max. flow volume 1050 l/h
Article no.:
326007110005
List price
304.00 €
plus VAT
Attachments

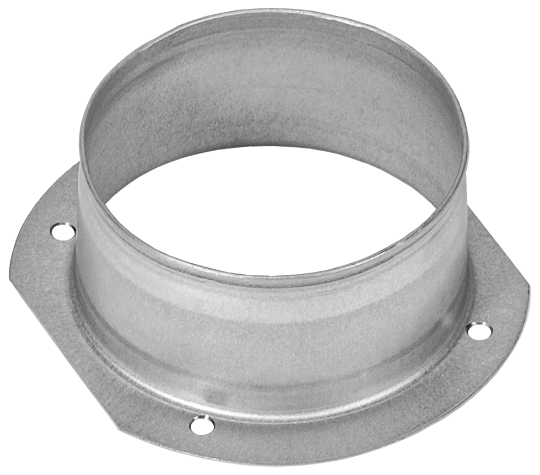

Primary air connection spigot
Connection DN 80, for the connection of external primary air
Suitable for: KaDeck Fan Coils
Suitable for: KaDeck Fan Coils
Article no.:
326007010104
List price
56.00 €
plus VAT
Additional colours
surcharge for RAL standard colour
Price per unit.
Suitable for: KaDeck Fan Coils
Suitable for: KaDeck Fan Coils
Article no.:
326007010011
List price
35.00 €
plus VAT
surcharge for RAL colour of your choice
Minimum quantity = 7 units per order and colour, The number of units below the minimum quantity must be requested and calculated separately.
Price per unit.
Suitable for: KaDeck Fan Coils
Price per unit.
Suitable for: KaDeck Fan Coils
Article no.:
326007010021
List price
133.00 €
plus VAT
surcharge for change of colour
of the powder-coating to the colour version quoted., The surcharge includes the conversion and cleaning of the powder-coating to the requested colour and will be charged once per project and call-off order.
Suitable for: KaDeck or KaDeck UC Fan Coils
Suitable for: KaDeck or KaDeck UC Fan Coils
Article no.:
326007010010
List price
415.00 €
plus VAT
