basic unit
Kampmann KaCool W wall-mounted fan coil with attractive design for the air conditioning of rooms. The flat screen (185 mm) made of a combination of metal and plastic impresses with its simple appearance in RAL 9016 matt (traffic white).
The cover can be attached and removed using two screws. Without the panel, all components are accessible. Adjustable fins ventilate the air into the room in a targeted manner. A regenerable ISO COARSE 30% (G2) air filter is fitted on the upper air extraction system, which can be inserted and removed without the need for tools.

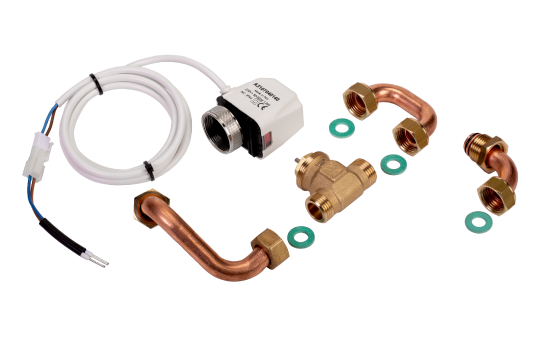

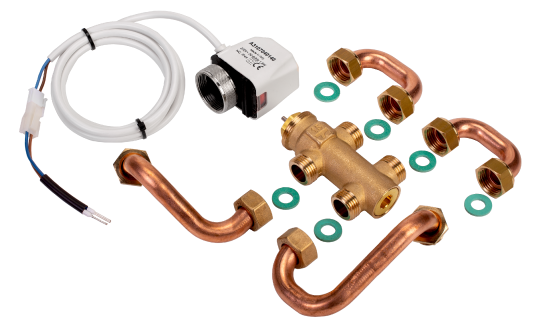

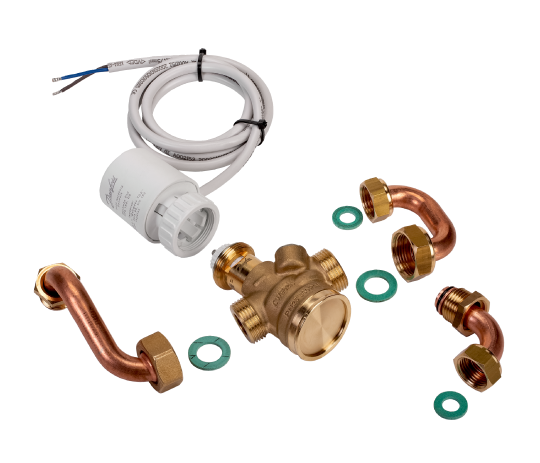

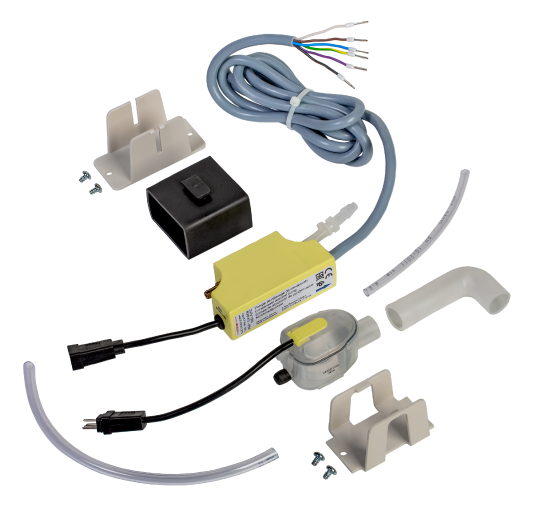

To mount the unit, the basic unit is mounted to the wall without a visible panel using the drilling template supplied. The water and electrical lines are then connected. The user-friendly design of the unit and accessibility to relevant components reduce installation time, maintenance and cleaning. The valve kits or condensate pump, which can be supplied separately as accessories, are located within the unit to maintain the aesthetic of the wall-mounted chilled water unit. Life Cycle Assessment (LCA) data is published in the form of an EPD according to EN 15804 and is available to download from the International EPD System. Registered in the building products platform DGNB Navigator. GWP (phase A1-A3), kg CO2 Äq.6,52E+01. Further calculations possible online.
Heat exchanger
High-output heat exchanger, consisting of round copper tubes with aluminium fins, suitable for use with LPHW.
| System | | 2-pipe |
| Max. operating pressure | bar | 8 |
| Max. entering water temperature | °C | 75 |
| Min. entering water temperature | °C | 6 |
| Max. air inlet temp. | °C | 30 |
| Max. glycol volume | % | 50 |
Condensate tray
condensate tray made of ABS material
Fan
Tangential fan with safety guard. Energy-saving EC fan with 0-10 V input for continuously variable speed control. All rotating parts have low-noise and maintenance-free bearings. Factory-wired. Integral thermal contact. Motor fault: Automatic motor shut-off in the event of a fault.
Control
The power supply, valve control, fan speed specification and condensate fault output are pre-wired to the junction box.
Configuration
| Model size | | 2 |
| Water connections | | left |
| Filter class | | ISO Coarse 30% filter (G2) |
| Width | mm | 185 |
| Height | mm | 333 |
| Length | mm | 930 |
| Weight | kg | 13.9 |
| Connection | | 1/2 inch |
