Fan Coils
KaCool D HY
Article no.:
327008212071C1
List price
3,860.00 €
plus VAT
Overview
- Outlet optimised for maximum comfort through side air outlet and utilisation of the Coanda effect
- Provides easy access to maintenance components
- Hygiene-certified in line with VDI 6022
- Certified by the HyBeta Hygiene Institute
- High-performance copper-aluminium heat exchanger
- With high heat and cooling outputs
- Optimised in terms of air flow
- Continuously variable EC single-phase radial fan
- Excellent efficiency through the use of EC technology
- Compact design due to external rotor motor technology
- Quiet operation due to optimised air flow guidance
Different valve kits are available: 2-way, 3-way and differential pressure-independent valves combined with corrugated pipes and actuators
- For CHW, LPHW and condensate drainage
- Drip tray is supplied with the unit
Accessories
Control accessories KaControl
KaController
with one-button operation, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210001
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210001
List price
222.00 €
plus VAT
KaController
with one-button operation, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9017 traffic black, made of resistant PVC, Type 3210006
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210006
List price
222.00 €
plus VAT
KaController
with side operating keys, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210002
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210002
List price
222.00 €
plus VAT
Serial KNX card
for integration into a KNX/EIB network, interface PCOS00KXN0, Type 3260702
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Article no.:
196003260702
List price
362.00 €
plus VAT
Serial CANbus card
to increase the number of units in a single-circuit system from 7 to a maximum of 30 units, one required per unit, Extension of the cable length from the first to the last unit from 30 m to 500 m, Can only be used with the KaControl -C1 control version!The room temperature cannot be recorded by a room sensor when using CanBus cards., Type 3260301
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003260301
List price
125.00 €
plus VAT
Serial Modbus card
Type 3260101
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Article no.:
196003260101
List price
117.00 €
plus VAT
Valve kits

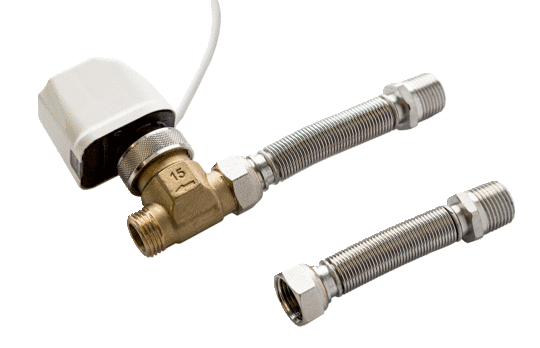

2-way valve kit
2-pipe, 2-way valve, 1 St. 24 V 2-point actuator 24 V Open/Close, thermoelectric, 50 Hz, 1.6 W, Connection 1/2'' with external thread, kvs value 1.7 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
325009012112
List price
164.00 €
plus VAT

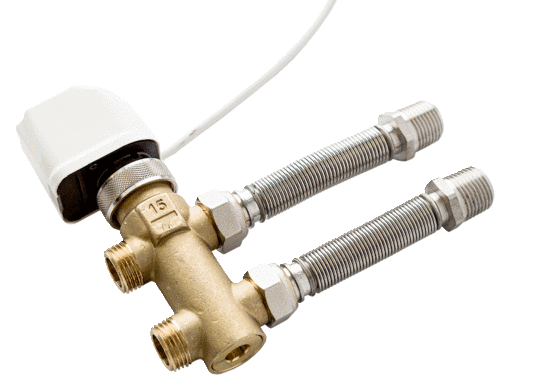

3-way valve kit
2-pipe, 3-way valve, 1 St. 24 V 2-point actuator 24 V Open/Close, thermoelectric, 50 Hz, Connection 1/2'' with external thread, kvs value 1.7 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 1
Suitable for: Model size 1
Article no.:
325009012122
List price
178.00 €
plus VAT
Differential pressure-independent valve kit
2-pipe, 24 V 2-point actuator, 50 Hz, Connection 1/2'' water with glycol <50%, supplied separately
Only in conjunction with a KaControl controller!
Suitable for: Model size 1, Min. Flow volume 150 l/h, max. Flow volume 1050 l/h
Only in conjunction with a KaControl controller!
Suitable for: Model size 1, Min. Flow volume 150 l/h, max. Flow volume 1050 l/h
Article no.:
325009012312
List price
277.00 €
plus VAT
Condensate tray/pump
condensate pump set
condensate pump for cooling below the dew point to discharge any condensate produced, 50 - 60 Hz, consisting of condensate pump, retaining panel, connecting bracket, screws and condensate pump accessories, 12 W, Protection class IP 44, supplied separately
Suitable for: KaCool D HY Fan Coils
Suitable for: KaCool D HY Fan Coils
Article no.:
327007000400
List price
290.00 €
plus VAT
Additional colours
surcharge for RAL colour of your choice
Price per panel.
Suitable for: Model size 1 - 4, RAL 9016 metal panel, KaCool D AF or KaCool D HY Fan Coils
Suitable for: Model size 1 - 4, RAL 9016 metal panel, KaCool D AF or KaCool D HY Fan Coils
Article no.:
325008000101
List price
438.00 €
plus VAT
Downloads
Declarations/Certificates
Certificate ISO 50001:2018
PDF
(194 kB)
Certificate ISO 9001:2008
PDF
(118 kB)
EU Declaration of Conformity KaCool D HY
PDF
(173 kB)
Prüfzertifikat KaCool D HY
PDF
(141 kB)
Cross-product information
Products
PDF
(17.9 MB)
Fan Coil brochure
PDF
(9.6 MB)
Kampmann hotel references
PDF
(6.2 MB)
BIM data (Building Information Modeling)
Kampmann Group BIM data
CAD-Drawings
Fan Coil KaCool D HY, Baugroesse 1 - 4, PDF
PDF
(274 kB)
Fan Coil KaCool D HY, Baugroesse 1 - 4, DWG
DWG
(567 kB)
Manuals
Montageanleitung KaCool D HY
PDF
(16.3 MB)
