Fan Coils

KaCool D AF

Article no.: 32500827400000

Use the dropdown menus to quickly and simply adapt the figures to your requirements.

List price

3,297.00 €

plus VAT

Overview

Outlet optimised for maximum comfort through side air outlets and utilisation of the Coanda effect
IR receiver concealed almost invisibly within the design panel (Models 1-4)

For CHW, LPHW and condensation drain
Including drip tray
Optional valve kit (accessory)

Models 1 – 4 per spigot (max 2) 80m³/h
Models 5 – 7 max 120 m³/h

Continuously variable EC fans
Efficient and low-noise
Integrated thermal contact

Easily accessible
600 mm maximum lifting height
Pump activation by a two-stage float switch

Calculate performance data

Sound power octave spectrum

Oktave Spektrum

Accessories

Control accessories electromechanical 230 V

Room thermostat

Heating/Cooling, 2- and 4-pipe, 3-stage. Only in conjunction with valves/valve kits with actuator, with OFF/Manual/Automatic fan switchover, 230 V AC, Open/Closed, Surface-mounted, Protection class II, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour similar to RAL 9010 pure white, Type 30155
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922

Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils

Article no.: 196000030155

List price

262.00 €

plus VAT

Details

Clock thermostat

Heating/Cooling, 2- and 4-pipe, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, 1 W, flush-mounted, Protection class II, Protection class IP 30, Colour similar to RAL 9010 pure white, Type 30256
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922

Suitable for: EC units electromechanical, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils

Article no.: 196000030256

List price

416.00 €

plus VAT

Details

Climate Controller

Heating/Cooling, 2- and 4-pipe, without Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148941

Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters

Article no.: 196000148941

List price

433.00 €

plus VAT

Details

Climate Controller

Heating/Cooling, 2- and 4-pipe, without Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148942

Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters

Article no.: 196000148942

List price

433.00 €

plus VAT

Details

Climate Controller

Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148943

Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters

Article no.: 196000148943

List price

463.00 €

plus VAT

Details

Climate Controller

Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148944

Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters

Article no.: 196000148944

List price

463.00 €

plus VAT

Details

Valve kits

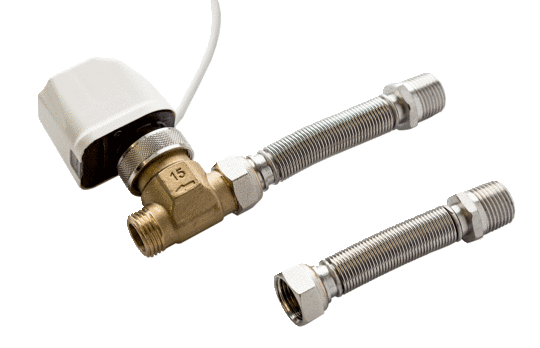

2-way valve kit

4-pipe, 2-way valve, 2 St. 230 V 2-point actuator 230 V Open/Close, thermoelectric, 50 Hz, 1.8 W, Connection 3/4'' with external thread, kvs value 2.8 m³/h, water with glycol <50%, supplied separately

Suitable for: Model size 5 - 7

Article no.: 325009024110

List price

450.00 €

plus VAT

Details

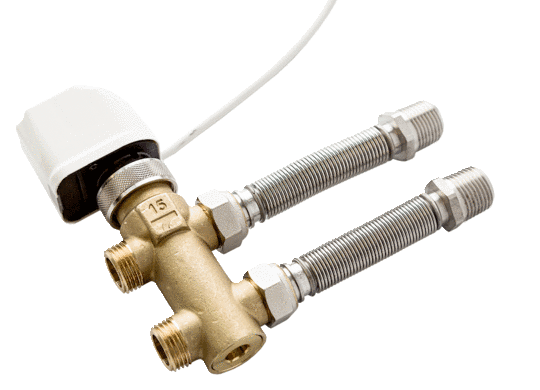

3-way valve kit

4-pipe, 3-way valve, 2 St. 230 V 2-point actuator 230 V Open/Close, thermoelectric, 50 Hz, Connection 3/4'' with external thread, kvs value 2.8 m³/h, water with glycol <50%, supplied separately

Suitable for: Model size 5 - 7

Article no.: 325009024120

List price

496.00 €

plus VAT

Details

Differential pressure-independent valve kit

4-pipe, 230 V 2-point actuator 230 V Open/Close, 50 Hz, Connection 3/4'' water with glycol <50%, supplied separately

Suitable for: Model size 5 - 7, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h

Article no.: 325009034310

List price

831.00 €

plus VAT

Details

Panel/grille

Plastic panel RAL 9016

without IR remote control, Colour RAL 9016 traffic-white

Suitable for: Model size 5 - 7, KaCool D AF

Article no.: 325009020030

List price

439.00 €

plus VAT

Details

RAL 9016 metal panel

without IR remote control, Colour RAL 9016 traffic-white
The ABS design panel is included with ceiling cassettes with article number 325008XXX001XX. To order these units without design panel, replace the 1 in the article number by a 0 and order the metal panel separately.

Suitable for: Model size 5 - 7, KaCool D AF

Article no.: 325009020020

List price

874.00 €

plus VAT

Details

Attachments

Primary air connection spigot

for the connection of external primary air, Connection diameter 80 mm

Suitable for: Model size 5 - 7

Article no.: 325009020300

List price

55.00 €

plus VAT

Details

Additional colours

surcharge for RAL colour of your choice

Price per panel.

Suitable for: Model size 5 - 7, RAL 9016 metal panel, KaCool D AF Fan Coils

Article no.: 325008000102

List price

910.00 €

plus VAT

Details

surcharge for RAL colour of your choice

Price per panel.

Suitable for: Model size 5 - 7, ABS panel, KaCool D AF Fan Coils

Article no.: 325008000104

List price

674.00 €

plus VAT

Details

surcharge for RAL colour of your choice

Price per enclosure.

Suitable for: Model size 5 - 7, enclosure, KaCool D AF Fan Coils

Article no.: 325008000106

List price

505.00 €

plus VAT

Details
