Fan Coils
KaCool D AF
Article no.:
325008264001C1
List price
3,776.00 €
plus VAT
Overview
- Outlet optimised for maximum comfort through side air outlets and utilisation of the Coanda effect
- IR receiver concealed almost invisibly within the design panel (Models 1-4)
- For CHW, LPHW and condensation drain
- Including drip tray
- Optional valve kit (accessory)
- Models 1 – 4 per spigot (max 2) 80m³/h
- Models 5 – 7 max 120 m³/h
- Continuously variable EC fans
- Efficient and low-noise
- Integrated thermal contact
- Easily accessible
- 600 mm maximum lifting height
- Pump activation by a two-stage float switch
Calculate performance data
Sound power octave spectrum
The sound power is determined depending on the use according to DIN EN ISO 3741 (in the echo chamber), according to DIN EN ISO 3744 (in the low-reflective half-space) or according to DIN EN ISO 9614 (intensity method).
Oktave Spektrum
Accessories
Control accessories KaControl
KaController
with one-button operation, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210001
Suitable for: All units with control configuration KaControl C1
Suitable for: All units with control configuration KaControl C1
Article no.:
196003210001
List price
222.00 €
plus VAT
KaController
with one-button operation, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9017 traffic black, made of resistant PVC, Type 3210006
Suitable for: All units with control configuration KaControl C1
Suitable for: All units with control configuration KaControl C1
Article no.:
196003210006
List price
222.00 €
plus VAT
KaController
with side operating keys, 24 V, wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210002
Suitable for: All units with control configuration KaControl C1
Suitable for: All units with control configuration KaControl C1
Article no.:
196003210002
List price
222.00 €
plus VAT
room temperature sensor
Wall-mounted, Surface-mounted, Protection class IP 30, Colour similar to RAL 9010 pure white, made of plastic, Type 3250110
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250110
List price
58.00 €
plus VAT
Clip-on pipe sensor
to detect the medium temperature, Protection class IP 67, Temperature setting range -20 - 70 °C, Colour black, Type 3250115
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250115
List price
56.00 €
plus VAT
KaControl Tableau SEL4.0
with touch terminal, to monitor and control up to 60 Kampmann secondary air units (maximum 25 groups, maximum 6 units per group), 230 V AC, 30 W, Wall-mounted, Protection class IP 54, Colour RAL 7035 grey, Type 3232223
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101
Article no.:
196003232223
List price
2,463.00 €
plus VAT
Serial KNX card
for integration into a KNX/EIB network, interface PCOS00KXN0, Type 3260702
The communication card slots into the free interface on the PCB.
Suitable for: All units with control configuration KaControl C1
The communication card slots into the free interface on the PCB.
Suitable for: All units with control configuration KaControl C1
Article no.:
196003260702
List price
362.00 €
plus VAT
Serial CANbus card
to increase the number of units in a single-circuit system from 7 to a maximum of 30 units, one required per unit, Extension of the cable length from the first to the last unit from 30 m to 500 m, Can only be used with the KaControl -C1 control version!The room temperature cannot be recorded by a room sensor when using CanBus cards., Type 3260301
Suitable for: All units with control configuration KaControl C1
Suitable for: All units with control configuration KaControl C1
Article no.:
196003260301
List price
125.00 €
plus VAT
Serial Modbus card
Type 3260101
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: All units with control configuration KaControl C1
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: All units with control configuration KaControl C1
Article no.:
196003260101
List price
117.00 €
plus VAT
KaControl visualisation
for the central monitoring and control of air handling units, Type 3210701
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101, 100 Units
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101, 100 Units
Article no.:
196003210701
List price
7,896.00 €
plus VAT
KaControl visualisation
for the central monitoring and control of air handling units, Type 3210702
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101, 300 Units
The KaControl visualisation unit is used to monitor and control individual control zones and secondary air units for 4-pipe heating/cooling, 2-pipe heating or 2-pipe cooling.
The central interface for monitoring Kampmann products provides optimum assistance with technical monitoring.
Suitable for: All units with control configuration KaControl C1 in conjunction with Modbus card Typ3260101, 300 Units
Article no.:
196003210702
List price
8,852.00 €
plus VAT
Valve kits

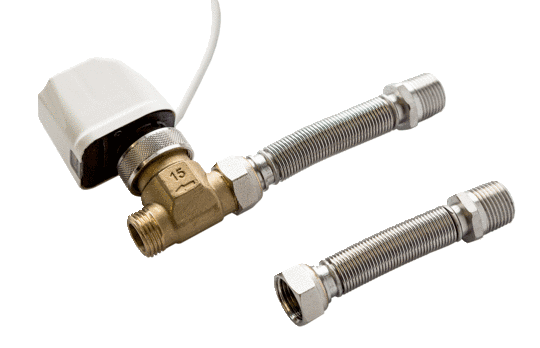

2-way valve kit
4-pipe, 2-way valve, 2 St. 24 V, 2-point actuator 24 V Open/Close, thermoelectric, 50 Hz, 1.6 W, Connection 3/4'', with external thread, kvs value 2.8 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 5 - 7
Suitable for: Model size 5 - 7
Article no.:
325009024112
List price
450.00 €
plus VAT

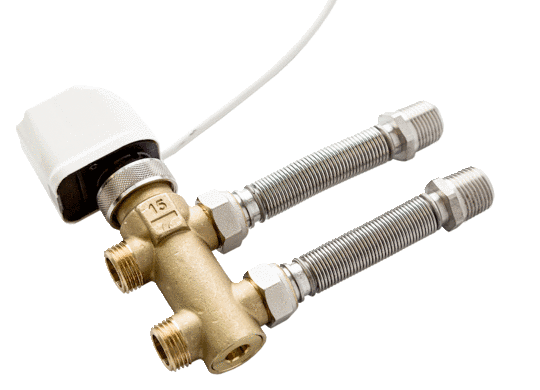

3-way valve kit
4-pipe, 3-way valve, 2 St. 24 V, 2-point actuator 24 V Open/Close, thermoelectric, 50 Hz, Connection 3/4'', with external thread, kvs value 2.8 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 5 - 7
Suitable for: Model size 5 - 7
Article no.:
325009024122
List price
496.00 €
plus VAT
Differential pressure-independent valve kit
4-pipe, 24 V, 2-point actuator, 50 Hz, Connection 3/4'', water with glycol <50%, supplied separately
Only in conjunction with a KaControl controller!
Suitable for: Model size 5 - 7, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20
Only in conjunction with a KaControl controller!
Suitable for: Model size 5 - 7, Min. Flow volume 250 l/h, max. Flow volume 1800 l/h, DN 20
Article no.:
325009034312
List price
831.00 €
plus VAT
Panel/grille
RAL 9016 metal panel
without IR remote control, Colour RAL 9016 traffic-white
The ABS design panel is included with ceiling cassettes with article number 325008XXX001XX. To order these units without design panel, replace the 1 in the article number by a 0 and order the metal panel separately.
Suitable for: Model size 5 - 7, KaCool D AF
The ABS design panel is included with ceiling cassettes with article number 325008XXX001XX. To order these units without design panel, replace the 1 in the article number by a 0 and order the metal panel separately.
Suitable for: Model size 5 - 7, KaCool D AF
Article no.:
325009020020
List price
874.00 €
plus VAT
Attachments
Primary air connection spigot
for the connection of external primary air, Connection diameter 80 mm
Suitable for: Model size 5 - 7
Suitable for: Model size 5 - 7
Article no.:
325009020300
List price
55.00 €
plus VAT
Additional colours
Surcharge for RAL colour of your choice
Price per panel.
Suitable for: Model size 5 - 7, RAL 9016 metal panel, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, RAL 9016 metal panel, KaCool D AF Fan Coils
Article no.:
325008000102
List price
910.00 €
plus VAT
Surcharge for RAL colour of your choice
Price per panel.
Suitable for: Model size 5 - 7, ABS panel, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, ABS panel, KaCool D AF Fan Coils
Article no.:
325008000104
List price
674.00 €
plus VAT
Surcharge for RAL colour of your choice
Price per enclosure.
Suitable for: Model size 5 - 7, enclosure, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, enclosure, KaCool D AF Fan Coils
Article no.:
325008000106
List price
505.00 €
plus VAT
