Fan Coils
KaCool D AF
Article no.:
32500826200000
List price
2,821.00 €
plus VAT
Overview
- Outlet optimised for maximum comfort through side air outlets and utilisation of the Coanda effect
- IR receiver concealed almost invisibly within the design panel (Models 1-4)
- For CHW, LPHW and condensation drain
- Including drip tray
- Optional valve kit (accessory)
- Models 1 – 4 per spigot (max 2) 80m³/h
- Models 5 – 7 max 120 m³/h
- Continuously variable EC fans
- Efficient and low-noise
- Integrated thermal contact
- Easily accessible
- 600 mm maximum lifting height
- Pump activation by a two-stage float switch
Accessories
Control accessories electromechanical 230 V
Room thermostat
Heating/Cooling, 2- and 4-pipe, 3-stage. Only in conjunction with valves/valve kits with actuator, with OFF/Manual/Automatic fan switchover, 230 V AC, Open/Closed, Surface-mounted, Protection class II, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour similar to RAL 9010 pure white, Type 30155
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
Article no.:
196000030155
List price
262.00 €
plus VAT
Clock thermostat
Heating/Cooling, 2- and 4-pipe, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, 1 W, flush-mounted, Protection class II, Protection class IP 30, Colour similar to RAL 9010 pure white, Type 30256
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
Article no.:
196000030256
List price
416.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, Without Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148941
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148941
List price
433.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, Without Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148942
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148942
List price
433.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148943
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148943
List price
463.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148944
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148944
List price
463.00 €
plus VAT
Valve kits

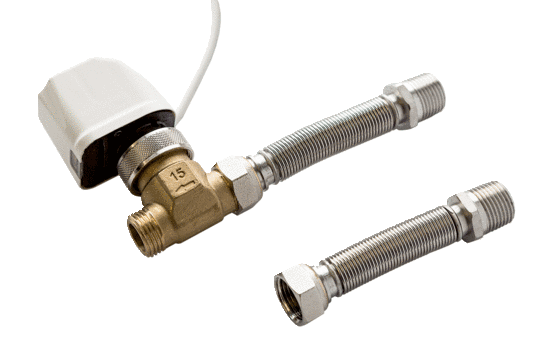

2-way valve kit
2-pipe, 2-way valve, 1 St. 230 V 2-point actuator 230 V Open/Close, thermoelectric, 50 Hz, 1.8 W, Connection 3/4'' with external thread, kvs value 4 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 6 - 7
Suitable for: Model size 6 - 7
Article no.:
325009042110
List price
316.00 €
plus VAT

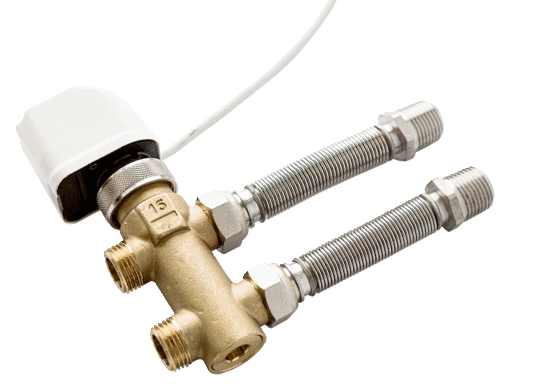

3-way valve kit
2-pipe, 3-way valve, 1 St. 230 V 2-point actuator 230 V Open/Close, thermoelectric, 50 Hz, Connection 3/4'' with external thread, kvs value 4 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 6 - 7
Suitable for: Model size 6 - 7
Article no.:
325009042120
List price
369.00 €
plus VAT
Differential pressure-independent valve kit
2-pipe, 230 V 2-point actuator 230 V Open/Close, 50 Hz, Connection 3/4'' water with glycol <50%, supplied separately
Suitable for: Model size 2 - 7, min. flow volume 150 l/h, max. flow volume 1050 l/h
Suitable for: Model size 2 - 7, min. flow volume 150 l/h, max. flow volume 1050 l/h
Article no.:
325009022310
List price
385.00 €
plus VAT
Differential pressure-independent valve kit
2-pipe, 230 V 2-point actuator 230 V Open/Close, 50 Hz, Connection 3/4'' water with glycol <50%, supplied separately
Suitable for: Model size 2 - 7, min. flow volume 250 l/h, max. flow volume 1800 l/h
Suitable for: Model size 2 - 7, min. flow volume 250 l/h, max. flow volume 1800 l/h
Article no.:
325009032310
List price
419.00 €
plus VAT
2-way valve kit
2-pipe, 2-way valve, 1 St. 24 V Continuous actuator 24 V AC/0-10 V DC, 50 Hz, Connection 3/4'' with external thread, kvs value 4 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 6 - 7
Suitable for: Model size 6 - 7
Article no.:
325009042212
List price
594.00 €
plus VAT
Panel/grille
Plastic panel RAL 9016
without IR remote control, Colour RAL 9016 traffic-white
Suitable for: Model size 5 - 7, KaCool D AF
Suitable for: Model size 5 - 7, KaCool D AF
Article no.:
325009020030
List price
439.00 €
plus VAT
RAL 9016 metal panel
without IR remote control, Colour RAL 9016 traffic-white
The ABS design panel is included with ceiling cassettes with article number 325008XXX001XX. To order these units without design panel, replace the 1 in the article number by a 0 and order the metal panel separately.
Suitable for: Model size 5 - 7, KaCool D AF
The ABS design panel is included with ceiling cassettes with article number 325008XXX001XX. To order these units without design panel, replace the 1 in the article number by a 0 and order the metal panel separately.
Suitable for: Model size 5 - 7, KaCool D AF
Article no.:
325009020020
List price
874.00 €
plus VAT
Attachments
Primary air connection spigot
for the connection of external primary air, Connection diameter 80 mm
Suitable for: Model size 5 - 7
Suitable for: Model size 5 - 7
Article no.:
325009020300
List price
55.00 €
plus VAT

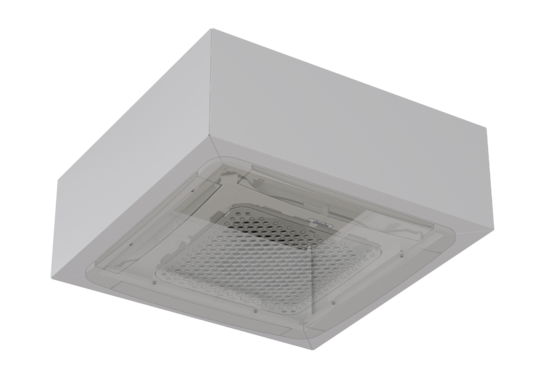

Under-ceiling frame/enclosure
Colour RAL 9016 traffic-white
Suitable for: Model size 5 - 7
Suitable for: Model size 5 - 7
Article no.:
325009020110
List price
669.00 €
plus VAT
Additional colours
surcharge for RAL colour of your choice
Price per panel.
Suitable for: Model size 5 - 7, RAL 9016 metal panel, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, RAL 9016 metal panel, KaCool D AF Fan Coils
Article no.:
325008000102
List price
910.00 €
plus VAT
surcharge for RAL colour of your choice
Price per panel.
Suitable for: Model size 5 - 7, ABS panel, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, ABS panel, KaCool D AF Fan Coils
Article no.:
325008000104
List price
674.00 €
plus VAT
surcharge for RAL colour of your choice
Price per enclosure.
Suitable for: Model size 5 - 7, enclosure, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, enclosure, KaCool D AF Fan Coils
Article no.:
325008000106
List price
505.00 €
plus VAT
