Fan Coils
KaCool D AF
Article no.:
325008252000C1
List price
2,992.00 €
plus VAT
Overview
- Outlet optimised for maximum comfort through side air outlets and utilisation of the Coanda effect
- IR receiver concealed almost invisibly within the design panel (Models 1-4)
- For CHW, LPHW and condensation drain
- Including drip tray
- Optional valve kit (accessory)
- Models 1 – 4 per spigot (max 2) 80m³/h
- Models 5 – 7 max 120 m³/h
- Continuously variable EC fans
- Efficient and low-noise
- Integrated thermal contact
- Easily accessible
- 600 mm maximum lifting height
- Pump activation by a two-stage float switch
Accessories
Control accessories KaControl
KaController
with one-button operation, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210001
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210001
List price
222.00 €
plus VAT
KaController
with one-button operation, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9017 traffic black, made of resistant PVC, Type 3210006
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210006
List price
222.00 €
plus VAT
KaController
with side operating keys, 24 V wall-mounted room control unit, with integral room temperature sensor, Protection class IP 30, Temperature setting range 8 - 35 °C, Colour similar to RAL 9010 pure white, made of resistant PVC, Type 3210002
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003210002
List price
222.00 €
plus VAT
Room temperature sensor
Wall-mounted, Surface-mounted, Protection class IP 30, Colour similar to RAL 9010 pure white, made of plastic, Type 3250110
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is the KaController installation site suitable for a temperature measurement? - If it is not suitable, e.g. behind a curtain, then a KaControl room temperature sensor should be chosen for each group!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250110
List price
58.00 €
plus VAT
Clip-on pipe sensor
to detect the medium temperature, Protection class IP 67, Temperature setting range -20 - 70 °C, Colour black, Type 3250115
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Is there a risk of frost, e.g. due to the ingress of cold air – if so, then a KaControl clip-on pipe sensor should be chosen for each unit!
heating/cooling changeover function only in conjunction with 3-way valve!
Suitable for: all units with KaControl -C1 and climate controller art. no. 19600014894*
Article no.:
196003250115
List price
56.00 €
plus VAT
Serial KNX card
for integration into a KNX/EIB network, interface PCOS00KXN0, Type 3260702
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Article no.:
196003260702
List price
362.00 €
plus VAT
Serial CANbus card
to increase the number of units in a single-circuit system from 7 to a maximum of 30 units, one required per unit, Extension of the cable length from the first to the last unit from 30 m to 500 m, Can only be used with the KaControl -C1 control version!The room temperature cannot be recorded by a room sensor when using CanBus cards., Type 3260301
Suitable for: all units with control option KaControl -C1
Suitable for: all units with control option KaControl -C1
Article no.:
196003260301
List price
125.00 €
plus VAT
Serial Modbus card
Type 3260101
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Required for each device for connection to KaControl panels or on-site Modbus networks.
The communication card slots into the free interface on the PCB.
Suitable for: all units with control option KaControl -C1
Article no.:
196003260101
List price
117.00 €
plus VAT
Valve kits

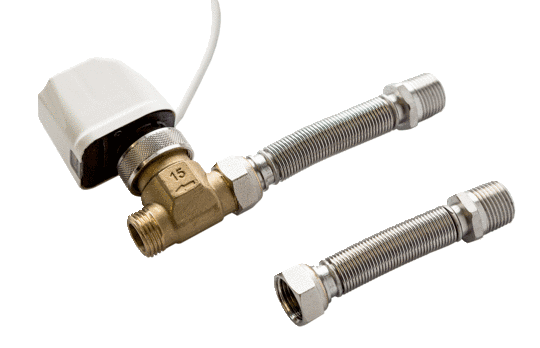

2-way valve kit
2-pipe, 2-way valve, 1 St. 24 V 2-point actuator 24 V Open/Close, thermoelectric, 50 Hz, 1.6 W, Connection 3/4'' with external thread, kvs value 2.8 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 5
Suitable for: Model size 5
Article no.:
325009032112
List price
226.00 €
plus VAT

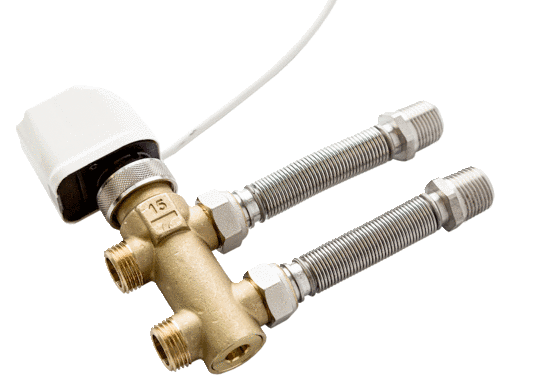

3-way valve kit
2-pipe, 3-way valve, 1 St. 24 V 2-point actuator 24 V Open/Close, thermoelectric, 50 Hz, Connection 3/4'' with external thread, kvs value 2.8 m³/h, water with glycol <50%, supplied separately
Suitable for: Model size 5
Suitable for: Model size 5
Article no.:
325009032122
List price
249.00 €
plus VAT
Differential pressure-independent valve kit
2-pipe, 24 V 2-point actuator, 50 Hz, Connection 3/4'' water with glycol <50%, supplied separately
Only in conjunction with a KaControl controller!
Suitable for: Model size 2 - 7, min. flow volume 150 l/h, max. flow volume 1050 l/h
Only in conjunction with a KaControl controller!
Suitable for: Model size 2 - 7, min. flow volume 150 l/h, max. flow volume 1050 l/h
Article no.:
325009022312
List price
385.00 €
plus VAT
Differential pressure-independent valve kit
2-pipe, 24 V 2-point actuator, 50 Hz, Connection 3/4'' water with glycol <50%, supplied separately
Only in conjunction with a KaControl controller!
Suitable for: Model size 2 - 7, min. flow volume 250 l/h, max. flow volume 1800 l/h
Only in conjunction with a KaControl controller!
Suitable for: Model size 2 - 7, min. flow volume 250 l/h, max. flow volume 1800 l/h
Article no.:
325009032312
List price
419.00 €
plus VAT
Panel/grille
Plastic panel RAL 9016
without IR remote control, Colour RAL 9016 traffic-white
Suitable for: Model size 5 - 7, KaCool D AF
Suitable for: Model size 5 - 7, KaCool D AF
Article no.:
325009020030
List price
439.00 €
plus VAT
RAL 9016 metal panel
without IR remote control, Colour RAL 9016 traffic-white
The ABS design panel is included with ceiling cassettes with article number 325008XXX001XX. To order these units without design panel, replace the 1 in the article number by a 0 and order the metal panel separately.
Suitable for: Model size 5 - 7, KaCool D AF
The ABS design panel is included with ceiling cassettes with article number 325008XXX001XX. To order these units without design panel, replace the 1 in the article number by a 0 and order the metal panel separately.
Suitable for: Model size 5 - 7, KaCool D AF
Article no.:
325009020020
List price
874.00 €
plus VAT
Attachments
Primary air connection spigot
for the connection of external primary air, Connection diameter 80 mm
Suitable for: Model size 5 - 7
Suitable for: Model size 5 - 7
Article no.:
325009020300
List price
55.00 €
plus VAT
Under-ceiling frame/enclosure
Colour RAL 9016 traffic-white
Suitable for: Model size 5 - 7
Suitable for: Model size 5 - 7
Article no.:
325009020110
List price
669.00 €
plus VAT
Additional colours
surcharge for RAL colour of your choice
Price per panel.
Suitable for: Model size 5 - 7, RAL 9016 metal panel, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, RAL 9016 metal panel, KaCool D AF Fan Coils
Article no.:
325008000102
List price
910.00 €
plus VAT
surcharge for RAL colour of your choice
Price per panel.
Suitable for: Model size 5 - 7, ABS panel, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, ABS panel, KaCool D AF Fan Coils
Article no.:
325008000104
List price
674.00 €
plus VAT
surcharge for RAL colour of your choice
Price per enclosure.
Suitable for: Model size 5 - 7, enclosure, KaCool D AF Fan Coils
Suitable for: Model size 5 - 7, enclosure, KaCool D AF Fan Coils
Article no.:
325008000106
List price
505.00 €
plus VAT
