SAL

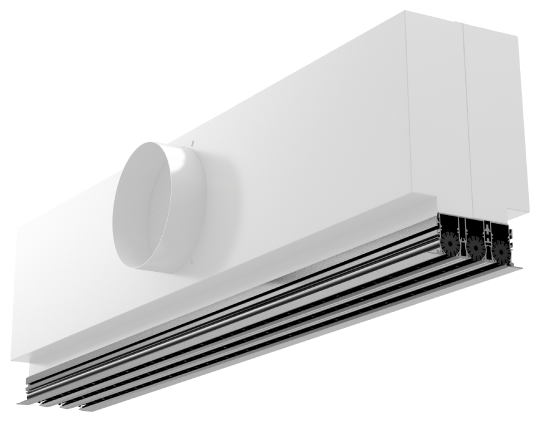

Feed and exhaust air slot diffuser in single or multiple-row version, consisting of aluminium extruded profiles
Overview
The SAL can be fitted with a 12 mm wide support profile (ZB profile). The front profile can be factory-fitted to the plenum box or alternatively using a cross bar. Seamless installation in the ceiling is therefore possible in minimal time.
The optionally available front-operated throttle enables the volume flows to be adjusted once the SAL has been installed. This is done using a screwdriver through the front cover.
Thanks to the many possible coatings and anodised finishes, the SAL can either be discreetly integrated into the room architecture, or deliberately used as a coloured style feature.
The SAL is also available as a motorised version, enabling both heating and cooling to be served by a single slot diffuser. The temperature difference control also provides for automatic switching over between heating and cooling position.
