Diffusers

Whether subtly integrated or intended as a visually impressive design element, our diffusers always meet the most exacting ventilation and acoustic requirements.

SAL35

SAL35

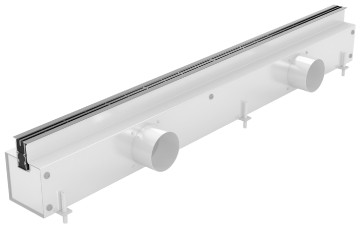

Feed and exhaust air slot diffuser in single or multiple-row version, consisting of aluminium extruded profiles
SAL50

SAL50

Feed and exhaust air slot diffuser in single or multiple-row version, consisting of aluminium extruded profiles
RRA

RRA

Linear pipe diffuser, consisting of a duct piece with circular cross-section, with slot channels mounted in an axial direction
KS

KS

Manually adjustable combined slot diffuser for installation in a ceiling box.
KSH

KSH

Manually adjustable combination diffuser for installation behind lightweight walls, e.g. dry construction.
KSW

KSW

Manually adjustable combination slot diffuser for installation in lightweight walls, e.g. dry construction.
DIA

DIA

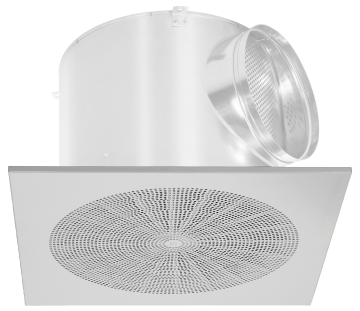

High-induction ceiling impulse diffuser with perforated front plate

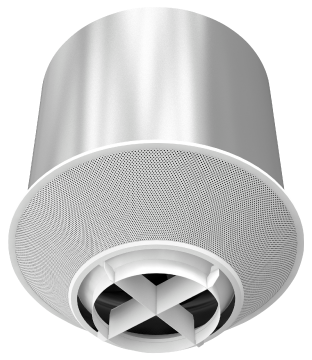

MPC

MPC

Multifunctional ceiling air diffuser with perforated front plate for ceiling installation
MSA

MSA

Multifunctional ceiling air diffuser, with slot profiles arranged parallel to one another, eccentrically mounted and retrospectively adjustable air control rotors made from plastic (ABS) for ceiling installation

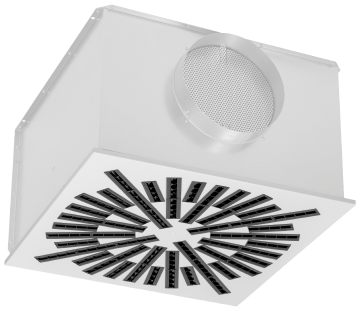

DAL358

DAL358

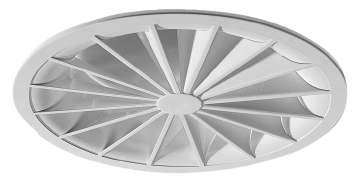

Swirl diffuser with radially arranged slot channels
DAL359

DAL359

Swirl diffuser for swirl-shaped horizontal air feed with high induction
DRS

DRS

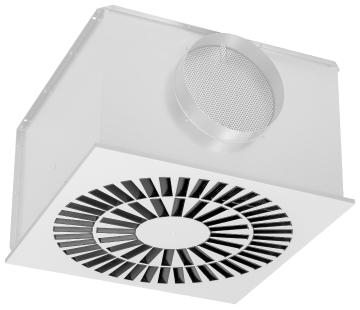

High-induction swirl diffuser with stamped, 45° shaped rigid air control blades and integrated discharge diffuser

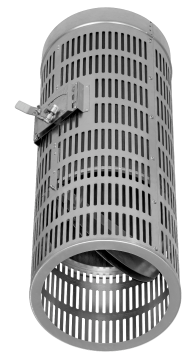

IQA

IQA

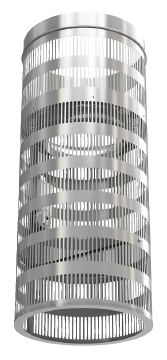

Displacement diffuser for the industrial sector. The air load is distributed evenly through the sleeve surface over the entire height.
IVA

IVA

Displacement diffuser for industrial applications
LDA

LDA

Adjustable displacement air diffuser for a draught-free supply of conditioned feed air to air-conditioned rooms and halls in industrial applications

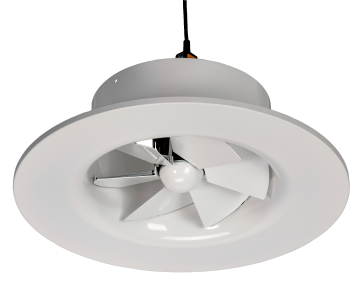

LDI

LDI

Adjustable swirl-vane diffuser for draught-free supply of conditioned feed air to air-conditioned rooms in comfort zones and/or industrial zones
LDI-V

LDI-V

Adjustable swirl-vane diffuser for draught-free supply of conditioned feed air to air-conditioned rooms in comfort zones and/or industrial zones
LUWIRO

LUWIRO

Column displacement flow diffuser for a draught-free supply of conditioned feed air (heating and cooling) to rooms and halls in industrial applications
VLD

VLD

Variable industrial diffuser for turbulent mixed flow (cooling and heating applications)
VLV

VLV

Variable industrial diffuser for low-turbulence displacement flow (cooling and heating applications)
WKD380 R

WKD380 R

Continuously adjustable turbulence chamber swirl diffuser with integrated wide-angle nozzle for turbulent mixed flow (cooling and heating applications)
WKD381-1

WKD381-1

Continuously adjustable turbulence chamber swirl diffuser with integrated wide-angle nozzle for turbulent mixed flow (cooling and heating applications)

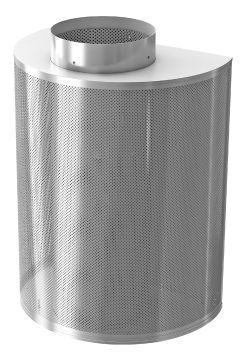

QAL-H

QAL-H

Semicircular displacement flow diffuser (180°, for wall arrangement) for low-turbulence feed air supply at low exit velocitys
QAL-K

QAL-K

Displacement flow diffuser for direct duct installation for low-turbulence feed air supply at low discharge speeds
QAL-L

QAL-L

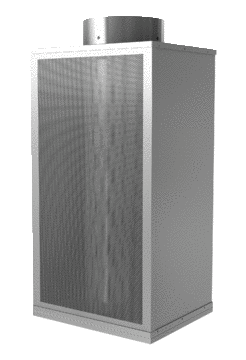

Linear displacement flow diffuser for visibly integrating into or mounting on walls for low-turbulence feed air supply at low discharge speeds
QAL-R

QAL-R

Round displacement flow diffuser (360°, free-standing) for low-turbulence feed air supply at low discharge speeds

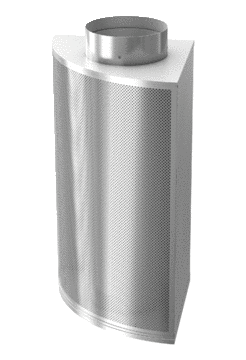

QAL-V

QAL-V

Quarter-circle displacement flow diffuser (90°, for corner installation) for low-turbulence feed air supply at low discharge speeds

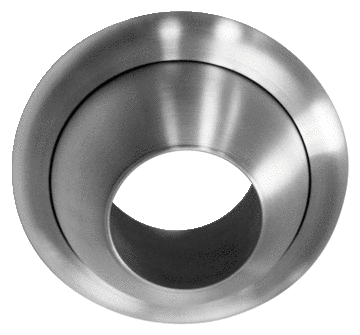

WWD

WWD

Rotating, swivelling wide-angle nozzle with high induction and adjustable flow direction
LBQ

LBQ

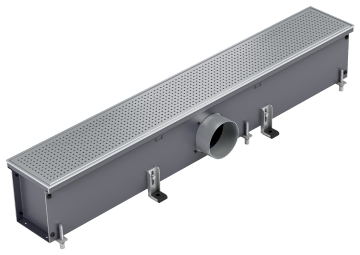

Floor displacement flow diffuser for low-turbulence feed air supply at low discharge speeds for comfort areas

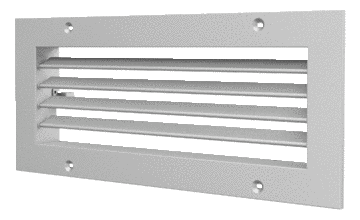

G311

G311

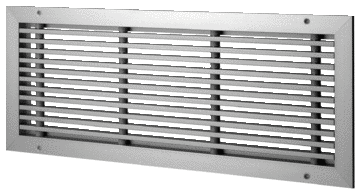

Fan grille for feed and exhaust air
G328

G328

Fan grille for feed and exhaust air

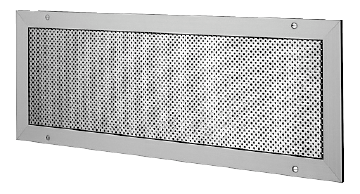

G341

G341

Fan grille for feed and exhaust air in sturdy, impact-resistant version (DIN 18032)
