Electromechanical control

All factory-mounted actuators are wired to the terminal in the electromechanical version. This also includes factory-fitted accessories, such as valve actuators and condensate pumps. Suitable auxiliary terminals are also available for on-site installation. The fan speed of the built-in EC fans can be continuously variably controlled by a 0–10 V DC signal. "Intelligent" motor electronics installed in the fans continuously monitors operation and detects potential motor malfunctions. In the event of a fault, the fan switches off automatically. On-site thermostats or a building management system (BMS) can be used for control of the units. In addition, Kampmann offers an extensive range of controllers as accessories.

Electromechanical room control units

» All basicheating and cooling functions for 2-pipe and 4-pipe applications

» Available in a range of versions, for example with:

Switching input for setback mode using a presence detector or window contact
Modbus RTU interface to automation networks
Integrated timer function
Integration into many popular flush-mounted programs

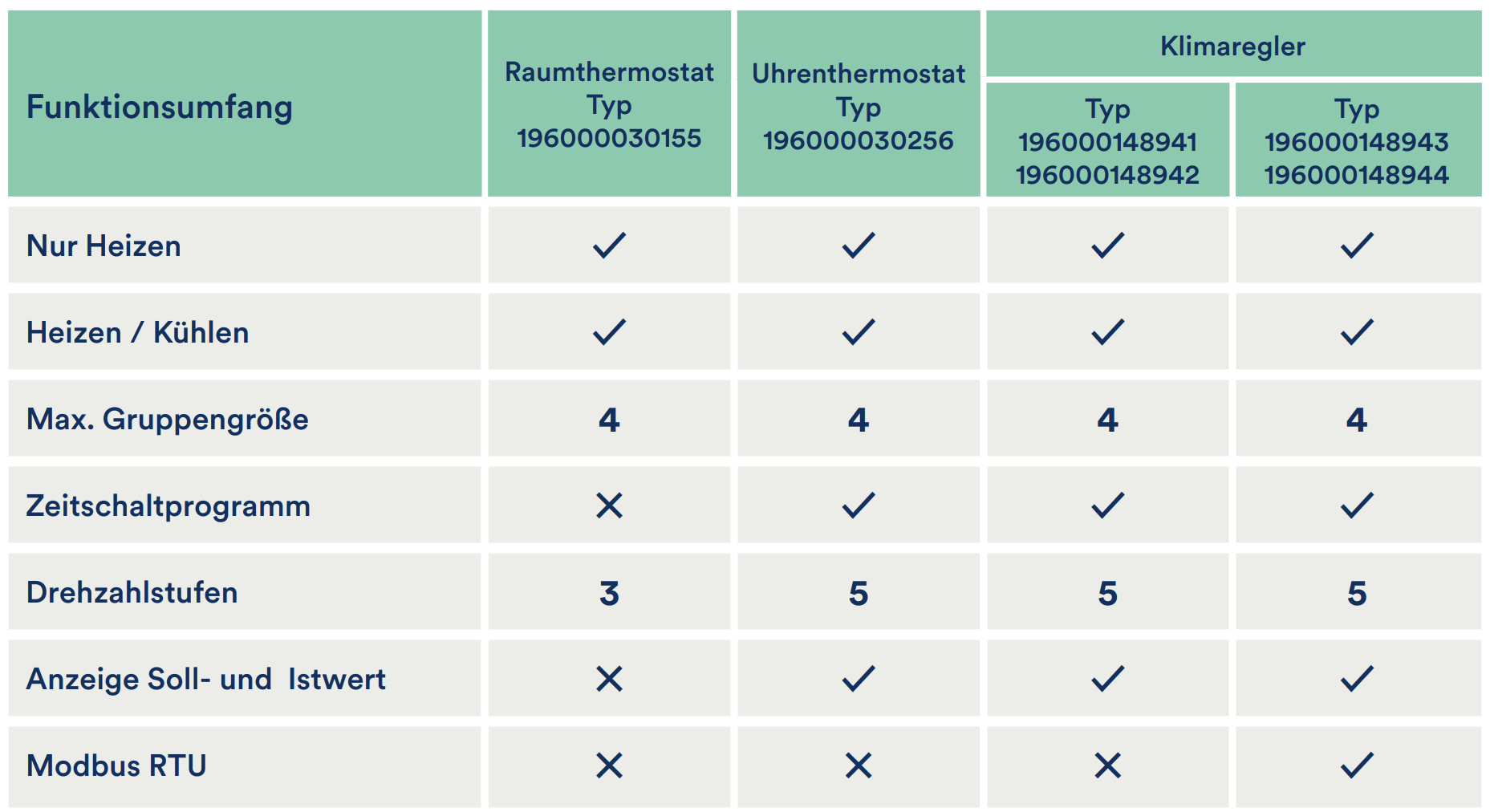

Scope of functions	Room thermostat Typ 196000030155	Clock thermostat Typ 196000030256	Climate controller Typ 196000148941 196000148942	Climate controller Typ 196000148943 196000148944
Heating only	✔	✔	✔	✔
Heating / cooling	✔	✔	✔	✔
Max. group size	4	4	4	4
Timer program	✖	✔	✔	✔
Fan speed stages	3	5	5	5
Display of setpoint and actual value	✖	✔	✔	✔
Modbus RTU	✖	✖	✖	✔

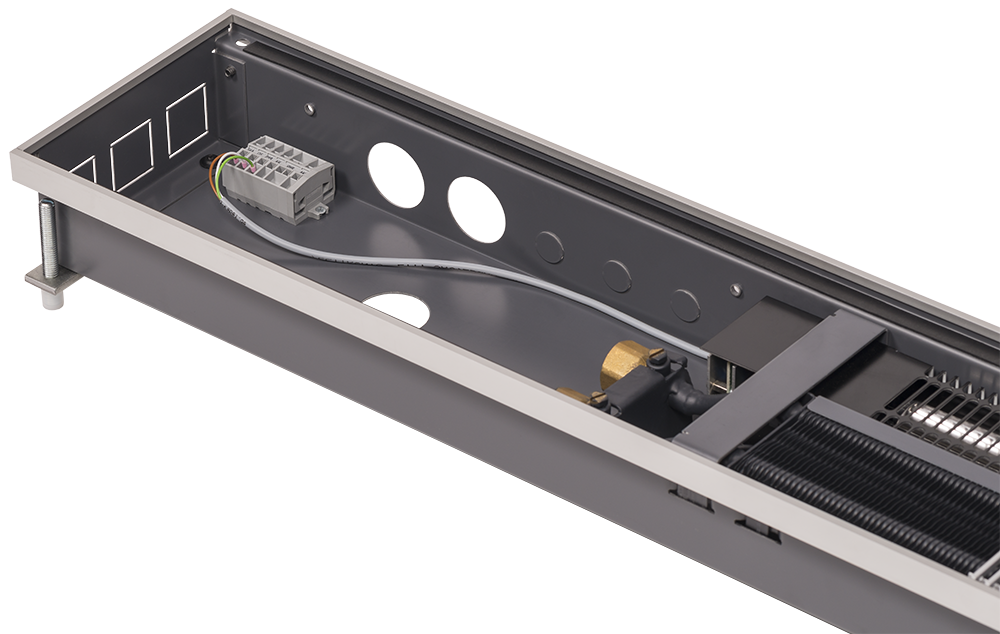

Example of Katherm QK nano electromechanical unit design 24 V

> Supply voltage 24 V DC

> 0-10VDC control

> Valve actuator 24 VDC (Open/Closed)

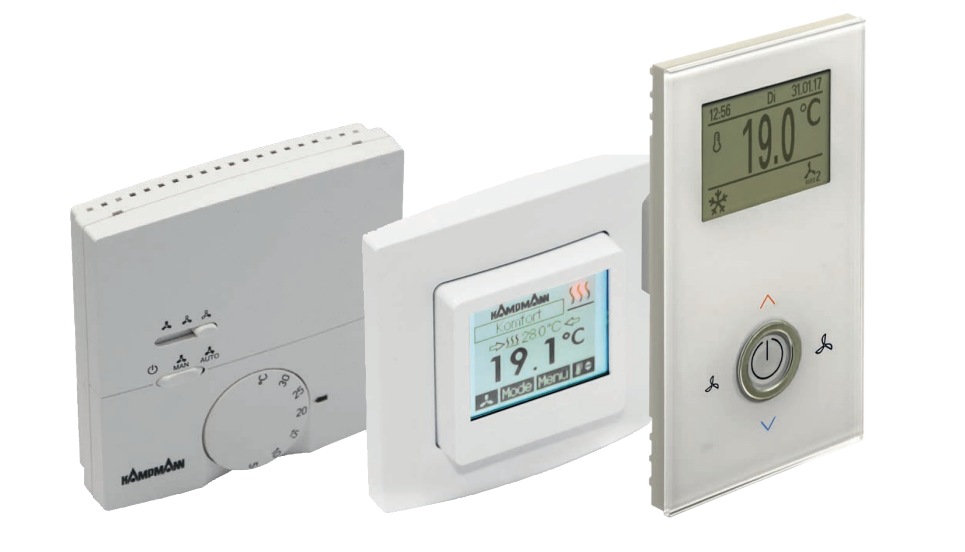

Our controllers at a glance

Electromechanical control and regulation technology

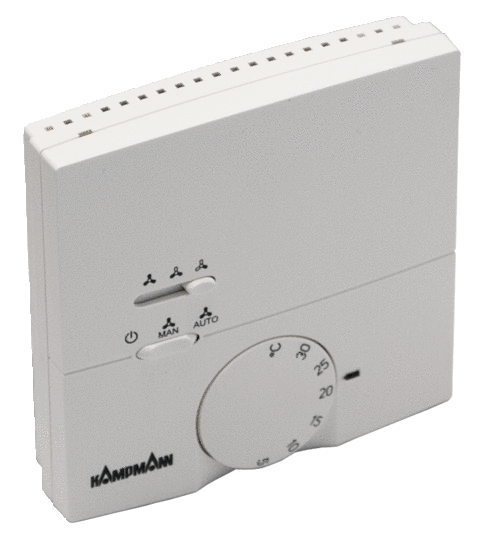

Room Thermostat

Heating/Cooling, 2-pipe and 4-pipe, 3-stage.
Only with valves/valve kits with actuator, 230 V AC, Open/Closed, with OFF/Manual/Automatic fan switchover, surface-mounted, temperature setting range 5 - 30 °C, color similar to RAL 9010 pure white

🠖 Details

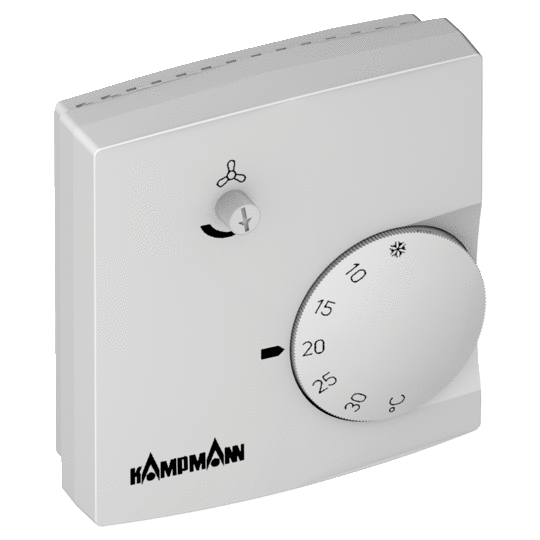

Room Thermostat

With fan speed setting, for continuously variable parallel control, 24 V DC, with thermal feedback, room temperature setting and fan speed pre-setting via rotary knobs, surface-mounted, protection class IP 30, temperature setting range 5 - 30 °C, color white

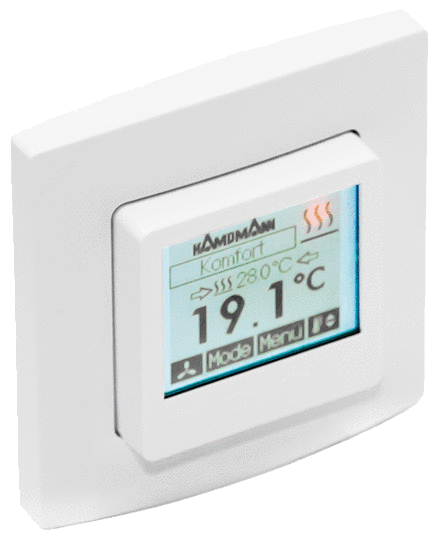

Clock Thermostat

230 V AC, flush-mounted, protection class IP 30, temperature setting range 5 - 30 °C, color white

- Large display with backlight when button is pressed for target and actual value display
- Control panel with four buttons to set daily or weekly programs
- Party function
- Frost protection
- Preset and adjustable time programs with automatic summer/winter time switchover
- Up to nine switching times per day with block formation

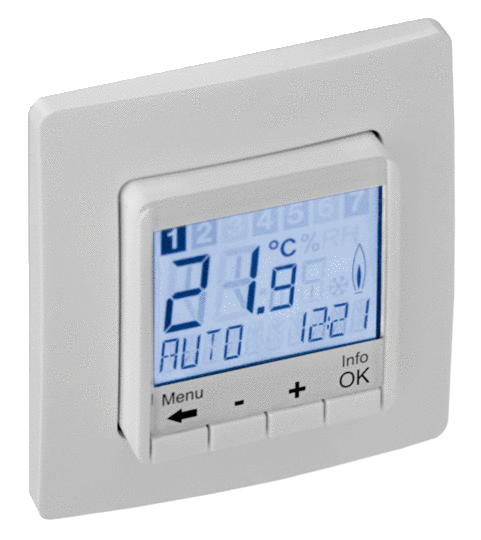

Clock Thermostat

Heating/Cooling, 2-pipe and 4-pipe, 230 V AC, continuously variable, with LCD operating menu and integrated timer program, 1 W, flush-mounted, protection class IP 30, color similar to RAL 9010 pure white

- Digital output 230 V AC, 3(0.5) A
- Analog output 0-10V, 5 mA
- Operating mode Off with room frost protection monitoring
- ECO function
- Internal temperature sensor NTC
- Display with adjustable backlight
- Offset function
- Child-proof

🠖 Details

Clock Thermostat

Heating/Cooling, 2-pipe and 4-pipe, only in conjunction with valves/valve kits, 24 V actuator, Open/Closed, continuously variable, with LCD operating menu and integrated timer program, heating/cooling switchover by external potential-free contact (low voltage), 1 W, flush-mounted, protection class IP 30, color similar to RAL 9010 pure white

- Digital output 24 V AC/DC, 3(0.5) A
- Analog output 0-10V, 5 mA
- ECO function
- Internal temperature sensor NTC
- Display with adjustable backlight
- Offset function
- Child-proof

🠖 Details

Climate Controller

Heating/Cooling, 2-pipe and 4-pipe, without Modbus, only with valves/valve kits, 230 V AC, Open/Closed, continuously variable, with LCD operating menu and integrated timer program, surface-mounted, color similar to RAL 9010 pure white

- 2.5-inch LCD display with automatic backlight
- Integrated room temperature sensor
- Password-protected parameter level
- Optional: automatic fan control or five manually adjustable levels
- Timer program with three time channels and four switching points each
- Without Modbus

🠖 Details

Climate Controller

Heating/Cooling, 2-pipe and 4-pipe, without Modbus, only with valves/valve kits, 230 V AC, Open/Closed, continuously variable, with LCD operating menu and integrated timer program, surface-mounted, color similar to RAL 9004 signal black

- 2.5-inch LCD display with automatic backlight
- Integrated room temperature sensor
- Password-protected parameter level
- Optional: automatic fan control or five manually adjustable levels
- Timer program with three time channels and four switching points each
- Without Modbus

🠖 Details

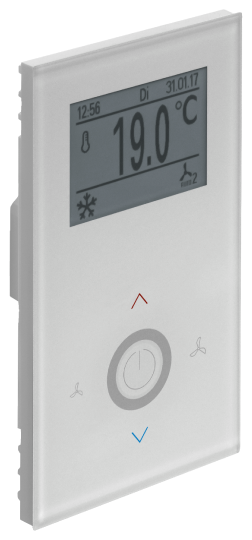

Climate Controller

Heating/Cooling, 2-pipe and 4-pipe, with Modbus, only with valves/valve kits, 230 V AC, Open/Closed, continuously variable, with LCD operating menu and integrated timer program, surface-mounted, color similar to RAL 9010 pure white

- 2.5-inch LCD display with automatic backlight
- Integrated room temperature sensor
- Password-protected parameter level
- Optional: automatic fan control or five manually adjustable levels
- Timer program with three time channels and four switching points each
- With Modbus
- Network connection via serial interface (Modbus RTU, up to 32 devices per network)

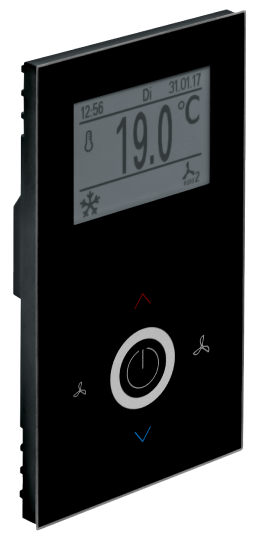

Climate Controller

Heating/Cooling, 2-pipe and 4-pipe, with Modbus, only with valves/valve kits, 230 V AC, Open/Closed, continuously variable, with LCD operating menu and integrated timer program, surface-mounted, color similar to RAL 9004 signal black

- 2.5-inch LCD display with automatic backlight
- Integrated room temperature sensor
- Password-protected parameter level
- Optional: automatic fan control or five manually adjustable levels
- Timer program with three time channels and four switching points each
- With Modbus
- Network connection via serial interface (Modbus RTU, up to 32 devices per network)

🠖 Details
