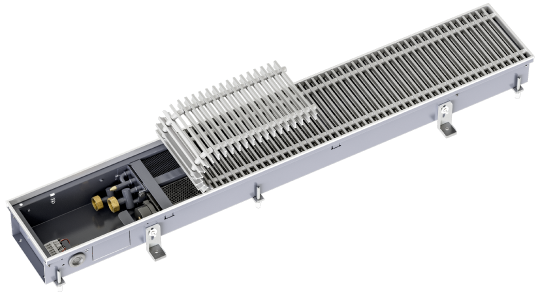

Katherm QK

EC tangential fan-assisted convection with small dimensions.
Katherm QK

Overview

Work on site is far faster with the Eurokonus valve connection. Other standard features, such as height adjustment feet and load-bearing raised floor brackets, reduce installation time and thus also costs.
Design our standard trenches with short delivery times. You can also rely on our help with project solutions to find the respective solution.
The matching frame for every grille - not a problem for the Katherm QX. The icing on the cake for a perfect look.
Your customers get what you appreciate about Kampmann: individual made-to-measure trenches to fit all façades. Regardless of whether you need mitred corners, curved trenches, column recesses etc.
You have the choice of two widths, twelve lengths, three control options and extensive accessories. With guaranteed DIN EN 16430-compliant outputs.
The coordinated interplay of whisper-quiet EC tangential fan and high-output copper-aluminium convector ensures an optimum indoor climate. This produces a high heat output combined with low sound levels.

We have the right grille for every installation situation – even with curves, angled and slopes.

In addition to our metallic optiline grilles made of aluminium, brass and stainless steel, we also have decorative wood grilles.

  • Prevents damage to the convector when screwing in the valves
  • Optional valves (accessories)
  • A proven combination of copper/aluminium
  • Optimised for airflow and heat transfer
  • Coated graphite-grey
  • For uniform convector airflow - resulting in high heat outputs at low sound emissions
  • For fast connection
  • Saves installation time
  • Removable end panel for ease of connection of trenches
  • For quick and safe electrical connection
  • Saves installation time
  • For control options: KaControl, -C1 and 230 V electromechanical --00
  • Including 230/24 V power unit
  • As visual cover and protection against dirt ingress

References

AMERON Alpsee Resort & Spa, Hohenschwangau

AMERON Alpsee Resort & Spa, Hohenschwangau

continue
Schloss Elmau Retreat, Elmau-Klais

Schloss Elmau Retreat, Elmau-Klais

continue
Worms Cultural Centre, Worms

Worms Cultural Centre, Worms

continue
Mall of Berlin, Berlin

Mall of Berlin, Berlin

continue
German Football Museum, Dortmund

German Football Museum, Dortmund

continue

Product Selection

Your selection     Roll-up grille Aluminium, natural anodised 12 KaControl Reset all

Your search resulted in 24 hits

Width

(mm)

Length

(mm)

Heat output1)

(W)

Sound pressure level2)

(dB(A))

Sound power level

(dB(A))

Grille bar spacing

(mm)

Free area, approx.

(%)

 More information Calculation
190 1000 71 – 917 < 20 – 26 < 28 – 34 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 1200 109 – 1419 < 20 – 29 < 28 – 37 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 1400 142 – 1845 < 20 – 31 < 28 – 39 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 1600 181 – 2347 < 20 – 33 < 28 – 41 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 1800 214 – 2773 < 20 – 35 < 28 – 43 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 2000 214 – 2773 < 20 – 35 < 28 – 43 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 2200 269 – 3498 < 20 – 36 < 28 – 44 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 2400 302 – 3925 < 20 – 37 < 28 – 45 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 2600 341 – 4426 20 – 37 28 – 45 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 2800 374 – 4853 21 – 39 29 – 47 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 3000 412 – 5354 22 – 40 30 – 48 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate
190 3200 445 – 5781 22 – 41 30 – 49 12 70

Roll-up grille

Aluminium, natural anodised

KaControl

 Calculate

1)At LPHW 75/65 °C, tL1 = 20 °C

2)The sound pressure levels were calculated with an assumed room insulation of 8 dB(A). This corresponds to a distance of 2 m, a room volume of 100 m3 and a reverberation time of 0.5 s (in accordance with VDI 2081)
