Unit Heaters
TOP C
Article no.:
153001473056M1
List price
4,770.00 €
plus VAT
Overview
- KaControl MC control system for operation via separate touch panel TP 2"
- Room group control of up to ten units via factory-fitted CAN-bus (up to 100 m)
- Demand-led automatic or optional manual fan control
- Freely configurable multifunctional inputs that can be used, for example, to detect temperatures, window contacts, presence detectors, card readers etc.
- Integrated Webserver (Wi-Fi or LAN) for ease of commissioning, parametrisation, trend data analysis etc. on a laptop or mobile device
- Self-priming, fixed to the hose connector for the on-site condensate pressurised line
- Electromagnetically working pump, energy-saving and quiet with a delivery height of up to 8 m
- Fully connected, easily accessible float switch below the condensate tray
- With alarm contact for on-site evaluation
- Copper/aluminium heat exchanger, especially lightweight, with high heat outputs from minimal dimensions
- Suitable for low temperature heating systems and LPHW heating systems
- Steel distributor and collector
- Not suitable for steam and thermal oil
- Hollow copper tubes with aluminium fins, connected by expanded pipes, perfect for lasting heat transfer
- Cannot be used in areas with high levels of dust or oil in which extensive cleaning is needed
- Continuously variable EC single-phase whisper-quiet sickle-blade fan (see Fig.)
- Highly efficient due to the aerodynamic design of the rotor housing
- Motor protection class IP 54
- Balanced according to DIN ISO 21940-11 and according to ISO 14694 for the corresponding fan category, external rotor motor integrated in the fan impeller
- External rotor motor integrated in the fan impeller
- Complies with Directive (EU) 327/2011 (“LOT 11”)
Accessories
Control accessories KaControl MC
Touch Panel TP 2
Touch display with clear visualisations, Black screen border and white case, 24 V, Room control unit for installation in a flush-mounted box with a freely selectable 55x55mm frame, Protection class IP 20, made of Glass and PVC
Suitable for: All units with control configuration KaControl MC1 and MC2
Suitable for: All units with control configuration KaControl MC1 and MC2
Article no.:
196003311101
List price
249.00 €
plus VAT
Touch Panel TP 2 Industrie
KaControl MC TP 2 surface-mounted touch panel, 24 V, 24 V Room control unit, mounted in a wall-mounted housing IP 65 with transparent cover, 0.75 W, Surface-mounted, Protection class IP 65, Colour RAL 7035 grey, made of ABS, polycarbonate, Type 3314101
Suitable for: All units with control configuration KaControl MC1 and MC2
Suitable for: All units with control configuration KaControl MC1 and MC2
Article no.:
196003314101
List price
609.00 €
plus VAT
Modbus TCP licence ex-works
Licence for activation of the Modbus TCP interface ex-works, Hardware for use of the interface is installed and activated
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003361103
List price
125.00 €
plus VAT
Modbus RTU licence ex-works
Licence for activation of the Modbus RTU interface ex-works, Hardware for use of the interface is installed and activated
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003361102
List price
90.00 €
plus VAT
BACnet/IP licence ex-works
Licence for activation of the BACnet/IP interface ex-works, Hardware for use of the interface is installed and activated
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003361104
List price
426.00 €
plus VAT
KNX licence ex-works
Licence for activation of the KNX interface ex-works, Hardware for use of the interface is installed and activated
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003361101
List price
290.00 €
plus VAT
Modbus TCP licence after delivery
Licence for activation of the Modbus TCP interface after delivery, Hardware with all units with KaControl MC is always installed and can be activated
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003361203
List price
125.00 €
plus VAT
Modbus RTU licence after delivery
Licence for activation of the Modbus RTU interface after delivery, Hardware with all units with KaControl MC is always installed and can be activated
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003361202
List price
90.00 €
plus VAT
BACnet/IP licence after delivery
Licence for activation of the BACnet/IP interface after delivery, Hardware with all units with KaControl MC is always installed and can be activated
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003361204
List price
426.00 €
plus VAT
KNX licence after delivery
Licence for activation of the KNX interface after delivery, Hardware with all units with KaControl MC is always installed and can be activated
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003361201
List price
290.00 €
plus VAT

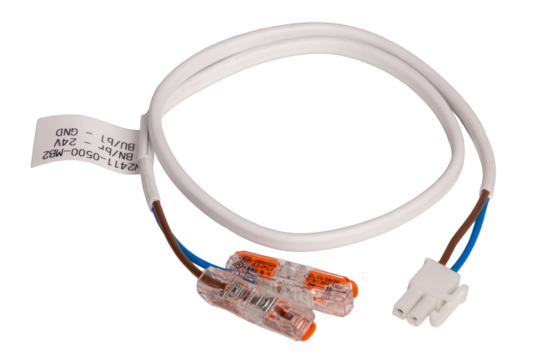

adapter cable
24 V, for the connection of existing 2-point valve actuators, Internal, Protection class IP 20, Cable length 500 mm, Type 3305225
Suitable for: All units with control configuration KaControl MC1
Suitable for: All units with control configuration KaControl MC1
Article no.:
196003305225
List price
36.00 €
plus VAT
Surface-mounted housing
Complete with cover frame, Surface-mounted, Colour RAL 9010 gloss pure white, made of Thermoplastic, Type 3304111
Suitable for: Touch Panel TP 2
Suitable for: Touch Panel TP 2
Article no.:
196003304111
List price
59.00 €
plus VAT
Surface-mounted housing
Complete with cover frame, Surface-mounted, Colour RAL 9005 matt satin deep black, made of Thermoplastic, Type 3304112
Suitable for: Touch Panel TP 2
Suitable for: Touch Panel TP 2
Article no.:
196003304112
List price
79.00 €
plus VAT
room temperature sensor
to detect the room temperature., Surface-mounted, Protection class IP 20, Colour RAL 9010 pure white, made of Polycarbonat, Type 3321111
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003321111
List price
58.00 €
plus VAT
room temperature sensor
to detect the room temperature., Surface-mounted, Protection class IP 65, Colour RAL 9010 pure white, made of Polycarbonat, Type 3321121
Suitable for: all units with control option KaControl MC
Suitable for: all units with control option KaControl MC
Article no.:
196003321121
List price
58.00 €
plus VAT
Valve kits
2-way valve kit
as a straight valve body, Connection 1 1/2'', kvs value 10 m³/h, Type 31913
Suitable for: all unit heaters
Suitable for: all unit heaters
Article no.:
153000031913
List price
260.00 €
plus VAT
Control shut-off valve
with reducer 1 1/4 inch x 1 1/2 inch m/f, for automatic flow and temperature control, kvs value 8.4 m³/h, Type 31952
Suitable for: Model size 6 - 8, TOP and Unit Heaters, Min. Flow volume 600 l/h, max. Flow volume 4800 l/h, DN 32
Suitable for: Model size 6 - 8, TOP and Unit Heaters, Min. Flow volume 600 l/h, max. Flow volume 4800 l/h, DN 32
Article no.:
153000031952
List price
423.00 €
plus VAT
Valve actuators, supplied loose
valve actuator
Drive T, 24 V AC/DC, 2-point, normally closed, 3m connecting line-MB2, PVC, VA10N, 1 W, Protection class III, Protection class IP 54 Cable length 0.12 m, supplied separately, made of Polyamide
Suitable for: All units with control configuration KaControl MC1 in conjunction with 2-way valve or differential pressure-independent valve
Suitable for: All units with control configuration KaControl MC1 in conjunction with 2-way valve or differential pressure-independent valve
Article no.:
1960TS3P24050010B
List price
65.00 €
plus VAT
Valves
Unit heater shut-off set, angled version
Connection 1 1/2'', Max. operating pressure 10 bar, Type 37976
Suitable for: Model size 7
Suitable for: Model size 7
Article no.:
198000037976
List price
446.00 €
plus VAT
Unit heater shut-off set, straight version
Connection 1 1/2'', Max. operating pressure 10 bar, Type 37977
Suitable for: Model size 7
Suitable for: Model size 7
Article no.:
198000037977
List price
403.00 €
plus VAT
Air outlets
calculation-relevant accessory
Louvre
two-row for wall- and ceiling-mounted units
Suitable for: Model size 7
Suitable for: Model size 7
Article no.:
198000037002
List price
276.00 €
plus VAT
Induction air outlet louvre
calculation-relevant accessory
mainly used for wall-mounted units, for ceiling-mounted units with ceiling heights of more than 4.0 m
Suitable for: Model size 7
Suitable for: Model size 7
Article no.:
198000037101
List price
302.00 €
plus VAT
Brackets
Wall brackets
recirculating air only, made of sendzimir galvanised sheet steel for wall mounting, a complete set
TIP and TOP unit heaters can be installed standing and also suspended.
price for 1 complete set
Suitable for: Model size 7
TIP and TOP unit heaters can be installed standing and also suspended.
price for 1 complete set
Suitable for: Model size 7
Article no.:
198000037044
List price
162.00 €
plus VAT
Ceiling-wall brackets
for ceiling or wall mounting, consisting of 2 multi-edged brackets with slotted holes and screws
price for 1 complete set
Suitable for: Model size 7
price for 1 complete set
Suitable for: Model size 7
Article no.:
198000037049
List price
172.00 €
plus VAT
Galvanised steel components
calculation-relevant accessory
Flexible connection
square
Suitable for: Model size 7, Length 120 - 160 mm
Suitable for: Model size 7, Length 120 - 160 mm
Article no.:
198000037013
List price
211.00 €
plus VAT
Filter box
calculation-relevant accessory
sendzimir galvanised, ISO Coarse 90% (G4) filter
Suitable for: Model size 7
Suitable for: Model size 7
Article no.:
198000037010
List price
816.00 €
plus VAT
90-degree air duct
calculation-relevant accessory
Suitable for: Model size 7
Article no.:
198000037021
List price
558.00 €
plus VAT
Air duct
calculation-relevant accessory
square, fixed frame on both sides
Suitable for: Model size 7
Suitable for: Model size 7
Article no.:
198000037015
List price
293.00 €
plus VAT
Air duct T-section
Suitable for: Model size 7
Article no.:
198000037022
List price
558.00 €
plus VAT
