Control accessories KaControl MC

Touch Panel TP 2 Industrie

Article no.: 196003314101

Dimensions (WxHxL): 179 mm x 110 mm x 199 mm

Weight: 0.917 kg

EAN: 4031845571710

List price

635.00 €

plus VAT

Overview

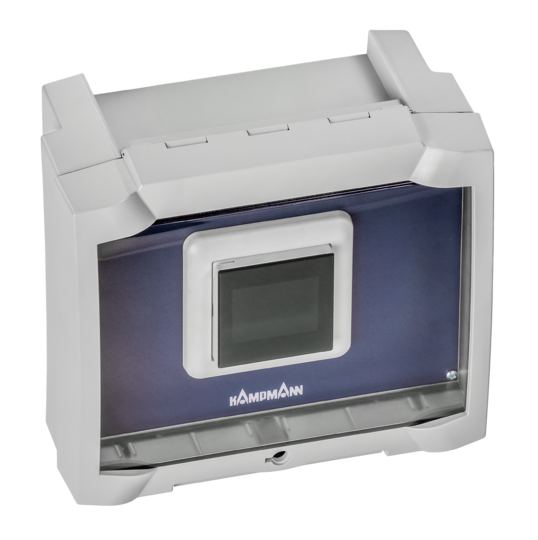

KaControl MC TP 2 surface-mounted touch panel
Room control unit, mounted in a wall-mounted housing IP 65 with transparent cover

Suitable for:

All units with control configuration KaControl MC1 and MC2

In the wall-mounted housing: high-resolution 2-inch colour display for clear visualisation and intuitive operation of all unit and group states (max. 10 units). Unit-specific displays enable simple and transparent operation.
Simple tactile feel borrowing from commercially available touch systems
Configurable display of the current temperatures, operating programs and unit statuses. Operation of relevant parameters, such as the temperature setpoint (absolute/relative), fan stage (up to 5 stages), operating programs (Day/Eco/Off/...) and operating modes (Heating/Cooling/Auto) as well as much more is done through intuitive and clear swiping and touch gestures.
Events, messages and faults from the unit and the entire control group are output via the display. Password-protected access enables full configuration of all units in the group. An automatic standby mode ensures energy-efficient operation.
Display area (WxH):40 mm x 30 mm
Resolution: 480px x 360px
Power consumption: 0.3W (standby)
Dimensions (WxHxD): 212 mm x 200 mm x 110 mm

Declarations/Certificates

Certificate ISO 9001, 14001, 50001
