Control system
We've got it under control
Kampmann products are available with two control configurations. "Electromechanical control" versions are suitable for on-site control as well as for use with simple accessories, such as thermostats and fan speed controllers. The "KaControl MC" version is an advanced and convenient solution for the control of single rooms or for integration into an overall system.
You
make
the
rules.
KaControl MC
The Multi Connect
climate control.
KaControl MC version

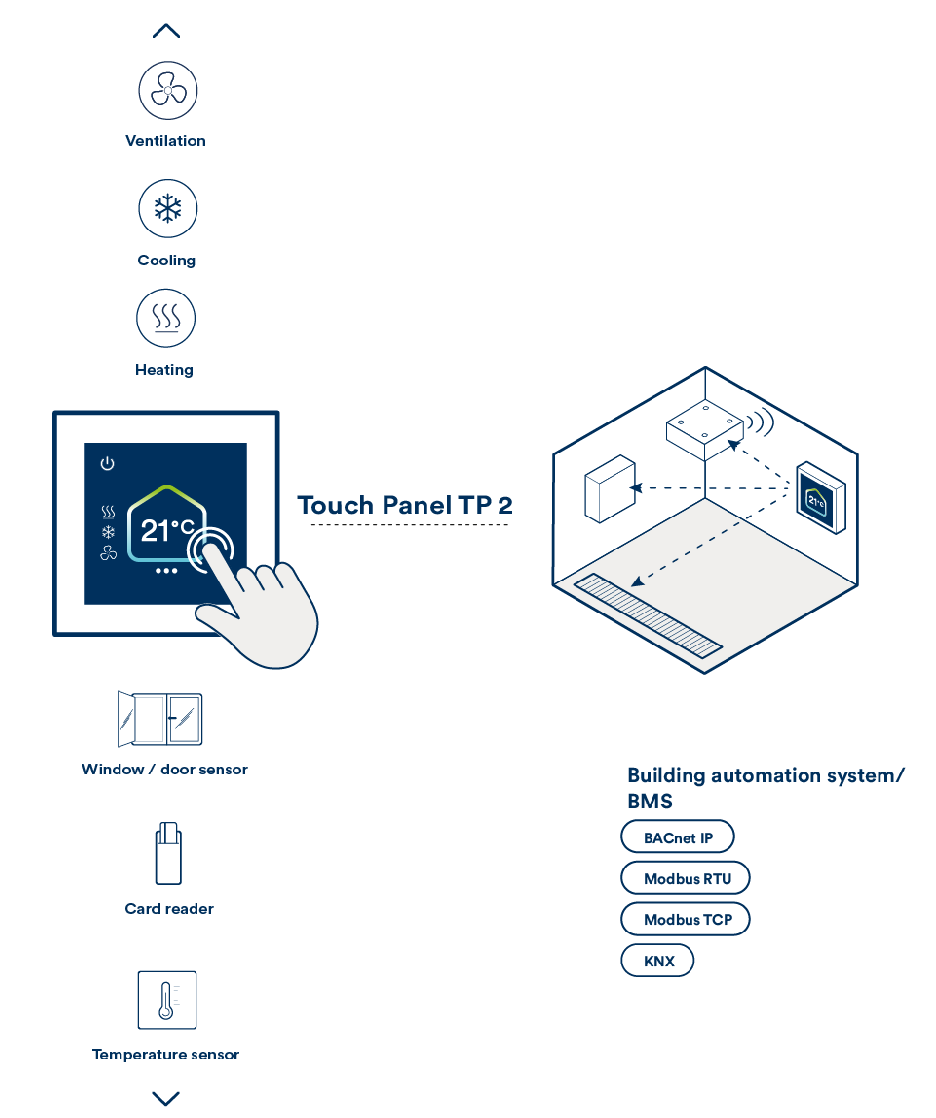

The Kampmann KaControl MC offers a future-proof solution for the control and regulation of heating, cooling and ventilation systems.

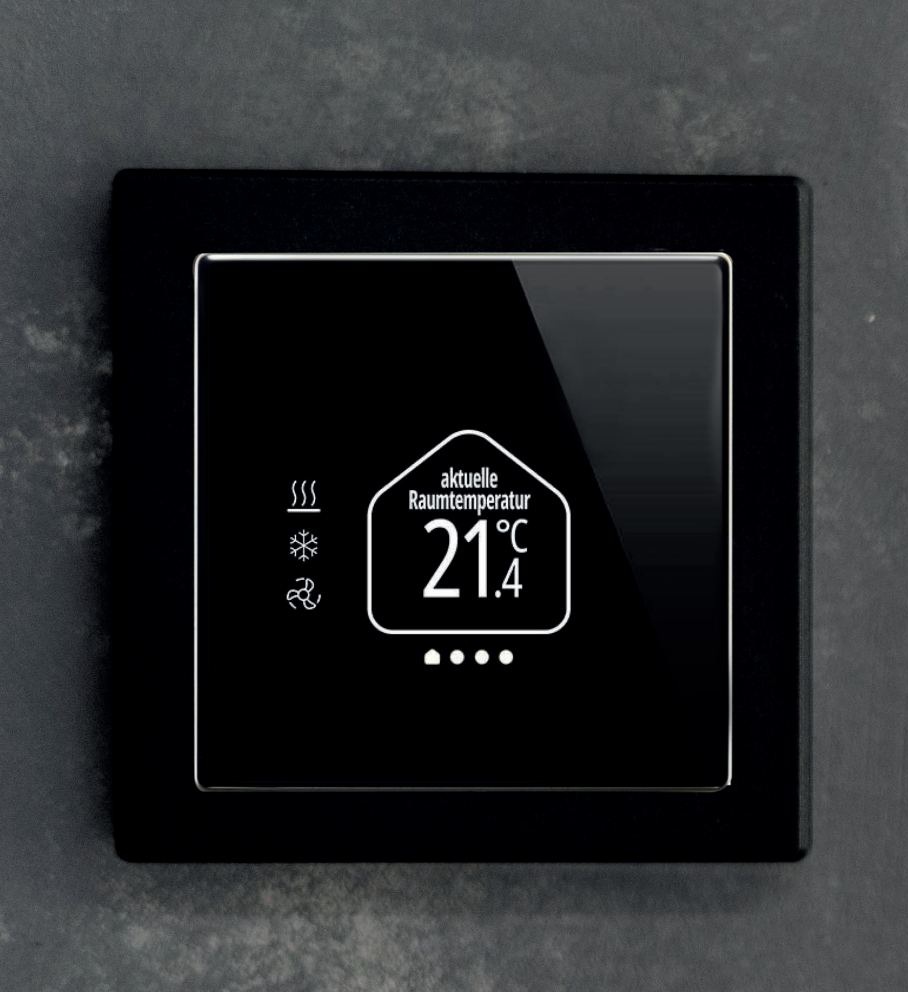

Its modern TP2 Touch Panel provides convenient access to the setting options of the Kampmann units, and its elegant design blends seamlessly into popular switch ranges.
The control system offers preconfigured solutions for easy installation and convenient operation - from single-room control, group control, and management of multiple rooms or zones, to the integration of complex systems with ventilation equipment, as well as heating and cooling generators such as heat pumps.
Users can conveniently access units via a network or Wi-Fi connection by web browser - on a laptop, tablet or smartphone. All common interfaces are available for seamless integration into a building management system, including Modbus RTU, Modbus TCP, BACnet IP and KNX TP.
Electromechanical control
→ read moreIntelligent single-room control
→ read moreSystem control in the building
→ read moreControl help guide

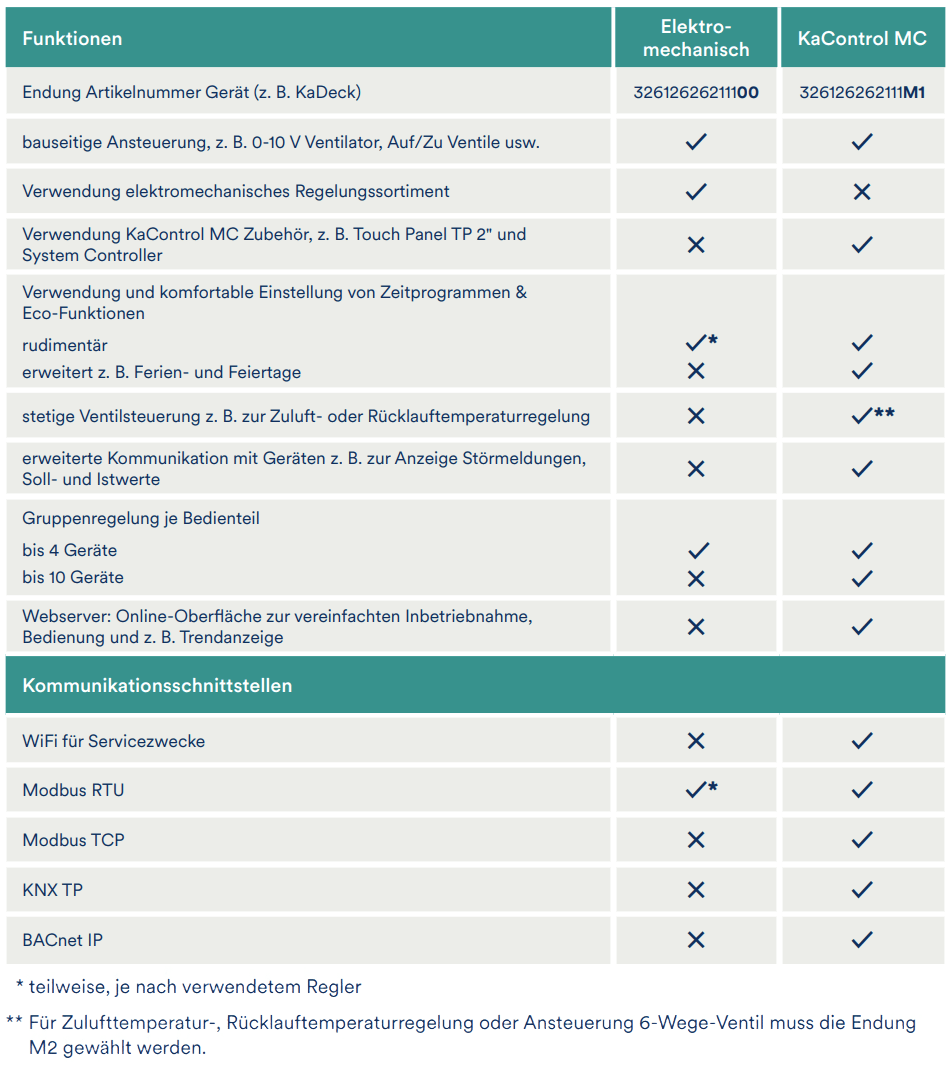

The following table assists with the selection of the appropriate control version based on the required functions. Kampmann recommends the KaControl MC control system as a modern and future-proof solution offering the widest possible range of functions.
| Functions | Electromechanical | KaControl MC |
|---|---|---|
| Unit article number ending (e.g. KaDeck) | 32612626211100 | 326126262111M1 |
| On-site control, e.g. 0-10 V fan, Open/Closed valves etc. | ✓ | ✓ |
| Use of electromechanical controls | ✓ | ✕ |
| Use of KaControl MC accessories, e.g. TP2 Touch Panel and System Controller | ✕ | ✓ |
| Use and convenient setting of timer programs & eco functions | ||
| Basic | ✓* | ✓ |
| Advanced e.g. holidays and public holidays | ✕ | ✓ |
| Continuous valve control, e.g. for supply air or return flow temperature control | ✕ | ✓** |
| Advanced communication with units, e.g. to display fault messages, setpoints and actual values | ✕ | ✓ |
| Group control per operating unit | ||
| up to 4 units | ✓ | ✓ |
| up to 10 units | ✕ | ✓ |
| Webserver: Online interface for simplified commissioning, operation and trend display etc. | ✕ | ✓ |
| Communication interfaces | ||
| Wi-Fi for service purposes | ✕ | ✓ |
| Modbus RTU | ✓* | ✓ |
| Modbus TCP | ✕ | ✓ |
| KNX TP | ✕ | ✓ |
| BACnet IP | ✕ | ✓ |
* Partially, depending on the controller used
** The ending "M2" must be selected for supply air temperature control, return temperature control or 6-way valve control
Our control range
extends from electromechanical room control units, the KaControl MC system for heating and cooling in a room, to the System Controller for system control in a space.
We've got it under control
Our ICA technical team is available to assist with the following issues:
- Support for the integration of products into established automation standards
- Advice on the selection of various control and automation systems
- Support in deciding on the scope of automation based on objective evaluation criteria
- Operator and user-orientated advice based on efficiency criteria (cost/benefits)
- Support for the integration or connection of our systems into existing building automation systems
- Direct consultation with building services/ICA companies to clarify interfaces to our systems
- Integral control concepts for a functional combination of Kampmann and NOVA units
