Trench Technology

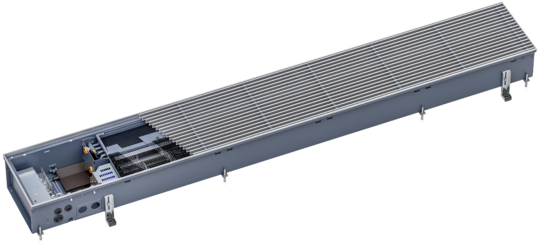

Katherm HK
Article no.:
14349261112700
List price
2,865.00 €
plus VAT
Overview
The new modular parametric design of the Katherm HK comprises three parts: connection, power and expansion module. Around 12,000 different versions are available for optimum adaptation to the space available along the facade and to maximum output, thanks to the new parametric approach 100 mm incremental dimensions of the power module.
The connection module contains the electrical junction and control box, the continuously variable EC fan motor, the water-side heat exchanger connection and the waste water-side condensate connection with optional condensate pump. Valve kits for 2-pipe and 4-pipe connection are also available on request. All electrical components are arranged and wired in the junction box The connection module thus combines all interfaces to the electrics, heating and waste water systems on one connection side and thus ensures straightforward and time-saving wiring and connection.
The new power module significantly increases the performance of the heat exchanger. A single high-performance drive motor drives a continuous string of tangential fans via a newly developed and innovative coupling system. This cascading prevents power losses due to empty spaces and ensures a uniform flow along the entire length of the convector. The use of fewer, but more powerful motors, reduces resource consumption, as well as energy costs and the susceptibility to errors in projects. Thus, the system offers a sustainable and powerful alternative to conventional solutions with several individual fans.
The newly designed Katherm HK maximises output with minimal noise by optimising the use of space within the floor. Depending on the model, the components are arranged efficiently: with 4-pipe models, the right-hand area of the trench is used for the additional heating mode valve connection, while with 2-pipe models, this area is reduced to a minimum. This flexible design enables the units to be tailor-made to conditions on site and ensures optimum use of every centimetre of the trench system.
The heat exchanger has a connecting internal thread and is secured with an anti-torsion device, which also acts as a splash guard during venting. We offer a wide range of pre-settable Open/Close valve kits and also differential pressure-independent valve kits for smaller or larger water flow rates with corrugated pipes. All models can be factory pre-equipped to save time, in which case only press-fit connections at the copper end piece of the corrugated pipe are required on site.
Each Katherm HK features an integrated condensate tray for safe condensate drainage in cooling mode. Condensate is either drained along a natural gradient of using an optional condensate pump, which can be supplied separately or factory-fitted. There are significantly fewer individual components of the new condensate pump. In the new Katherm HK, the float switch and condensate motor are accommodated in a compact housing. The unit is supplied with a newly designed connection bend to the condensate tray. This saves assembly time and makes it easier to install waste water and electrical systems. The condensate pump continuously adapts to the required power requirements and is extremely quiet. A plug-in power supply and error message for ease of maintenance are pre-installed.
The ready-wired junction and control box is design for fast and safe electrical wiring. A built-in cable duct ensures clean and safe cabling.
Calculate performance data
Sound power octave spectrum
The sound power is determined depending on the use according to DIN EN ISO 3741 (in the echo chamber), according to DIN EN ISO 3744 (in the low-reflective half-space) or according to DIN EN ISO 9614 (intensity method).
Oktave Spektrum
EPD data
Item number-specific LCA data based on verified EPD according to EN 15804, which is available for download at The International EPD System. Separate subdivision of life cycle modules available online via button "EPD data sheet". The environmental impacts of module B refer to 1 year of operation. A: Product and construction process stage - B: Use stage - C: End of life stage - D: Benefits and loads beyond the system boundary
| A | B | C | D | |
|---|---|---|---|---|
| GWP - Total kg CO2 eq | 1.37E+02 | 1.05E+01 | 5.36E+00 | -6.17E+01 |
| GWP - fossil kg CO2 eq | 1.40E+02 | 9.34E+00 | 5.36E+00 | -6.10E+01 |
| GWP - Biogenic kg CO2 eq | -4.06E+00 | 1.09E+00 | 2.11E-03 | -2.97E-02 |
| GWP - Luluc kg CO2 eq | 1.40E+00 | 3.60E-02 | 2.63E-04 | -4.43E-01 |
| ODP kg CFC-11 eq | 1.14E-05 | 6.30E-07 | 1.05E-07 | -4.11E-06 |
| AP mol H+ eq | 1.53E+00 | 7.57E-02 | 2.18E-03 | -8.94E-01 |
| EP - fresh water kg P eq | 1.34E-01 | 6.43E-03 | 6.91E-05 | -7.42E-02 |
| EP - marine kg P eq | 1.61E-01 | 8.85E-03 | 7.38E-04 | -7.63E-02 |
| EP - country mol N eq | 1.74E+00 | 1.05E-01 | 8.48E-03 | -8.86E-01 |
| POCP kg NMVOC | 5.08E-01 | 2.62E-02 | 1.86E-03 | -2.56E-01 |
| ADPE kg Sb eq | 2.13E-02 | 2.14E-03 | 1.66E-06 | -1.70E-02 |
| ADPF MJ | 1.89E+03 | 2.31E+02 | 5.46E+00 | -7.52E+02 |
| WDP m³ depriv. | 3.63E+01 | 1.49E+00 | 1.67E-01 | -1.32E+01 |
| GWP-GHG kg CO2 eq | 1.37E+02 | 9.27E+00 | 5.36E+00 | -5.93E+01 |
| PM disease inc. | 1.02E-05 | 2.73E-07 | 3.32E-08 | -4.64E-06 |
| IR kBq U-235 eq | 2.11E+01 | 7.63E+00 | 3.18E-02 | -6.51E+00 |
| ETP - FW CTUe | 9.78E+03 | 5.08E+02 | 2.23E+01 | -6.54E+03 |
| HTP - C CTUh | 6.84E-07 | 1.78E-08 | 7.07E-10 | -3.48E-07 |
| HTP - NC CTUh | 1.55E-05 | 7.37E-07 | 1.14E-08 | -1.02E-05 |
| SQP - | 1.09E+03 | 1.02E+02 | 7.77E+00 | -3.58E+02 |
| PERE MJ | 5.19E+02 | 4.28E+01 | 1.78E-01 | -1.44E+02 |
| PERM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PERT MJ | 5.19E+02 | 4.28E+01 | 1.78E-01 | -1.44E+02 |
| PENRE MJ | 1.89E+03 | 2.31E+02 | 5.46E+00 | -7.52E+02 |
| PENRM MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| PENRT MJ | 1.89E+03 | 2.31E+02 | 5.46E+00 | -7.52E+02 |
| SM kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NRSF MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| FW m³ | 8.93E-01 | 9.33E-02 | 6.87E-03 | -4.18E-01 |
| HWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| NHWD kg | 7.48E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| RWD kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| CRU kg | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| MFR kg | 0.00E+00 | 0.00E+00 | 2.27E+01 | 0.00E+00 |
| MER kg | 0.00E+00 | 0.00E+00 | 1.79E+00 | 0.00E+00 |
| EE (Electrical) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
| EE (Thermal) MJ | 0.00E+00 | 0.00E+00 | 0.00E+00 | 0.00E+00 |
Accessories
Surcharges for grille versions
Surcharge for aluminium grille version (€/m)
Bar depth 5 mm, Bar height 18 mm, Bar spacing 12 mm, Free area, approx. 70 %
Suitable for: Aluminium, anodised in a colour (brass, bronze, black, bronze finish, painted DB 703), Katherm HK
Suitable for: Aluminium, anodised in a colour (brass, bronze, black, bronze finish, painted DB 703), Katherm HK
Article no.:
143014311049
List price
51.00 €
plus VAT
Surcharge for natural brass grille version (€/m)
Bar depth 5 mm, Bar height 18 mm, Bar spacing 12 mm, Free area, approx. 70 %
Suitable for: Brass, natural, Katherm HK
Suitable for: Brass, natural, Katherm HK
Article no.:
143014313349
List price
523.00 €
plus VAT
Control accessories electromechanical 230 V
Room thermostat
Heating/Cooling, 2- and 4-pipe, 3-stage. Only in conjunction with valves/valve kits with actuator, with OFF/Manual/Automatic fan switchover, 230 V, AC, Open/Closed, Surface-mounted, Protection class II, Protection class IP 30, Temperature setting range 5 - 30 °C, Colour similar to RAL 9010 pure white, Type 30155
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
optional connectible, remote sensor art. no. 196000148921
can optionally be connected, clip-on sensor art. no. 196000148922
Suitable for: EC units electromechanical, 5 Katherm HK Trench Technology, 5 TOP, Ultra or Ultra Allround Unit Heaters, 5 Venkon or PowerKon LT Fan Coils, 5 KaCool D AF, KaCool W or KaDeck Fan Coils
Article no.:
196000030155
List price
262.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, without Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V, AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148941
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148941
List price
433.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, without Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V, AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148942
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148942
List price
433.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V, AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148943
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148943
List price
463.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits Open/Closed, continuous fan control, with LCD operating menu and integrated timer program, 230 V, AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148944
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148944
List price
463.00 €
plus VAT
Valve kits

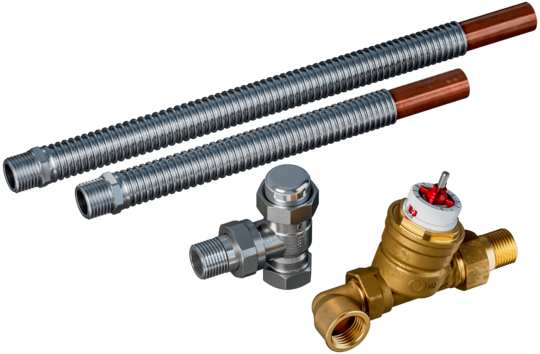

Differential pressure-independent valve kit
2-pipe, includes 1 differential pressure-independent straight valve, 1 shut-off valve, angled, 2 flexible stainless steel corrugated pipes, 1 elbow, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm HK, Min. Flow volume 105 l/h, max. Flow volume 1050 l/h, DN 15
Suitable for: Katherm HK, Min. Flow volume 105 l/h, max. Flow volume 1050 l/h, DN 15
Article no.:
194001433920
List price
188.00 €
plus VAT
Differential pressure-independent valve kit
2-pipe, includes 1 differential pressure-independent axial valve, 1 return shut-off valve, angled, 2 flexible stainless steel corrugated pipes, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm HK, Min. Flow volume 35 l/h, max. Flow volume 420 l/h, DN 15
Suitable for: Katherm HK, Min. Flow volume 35 l/h, max. Flow volume 420 l/h, DN 15
Article no.:
194001433520
List price
151.00 €
plus VAT
Pre-settable valve kit
2-pipe, includes 1 pre-settable axial valve, 1 return shut-off valve, angled, 2 flexible stainless steel corrugated pipes, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm HK, max. Flow volume 920 l/h, DN 15
Suitable for: Katherm HK, max. Flow volume 920 l/h, DN 15
Article no.:
194001433720
List price
135.00 €
plus VAT
Pre-settable valve kit
2-pipe, includes 1 pre-settable axial valve, 1 return shut-off valve, angled, 2 flexible stainless steel corrugated pipes, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm HK, max. Flow volume 260 l/h, DN 15
Suitable for: Katherm HK, max. Flow volume 260 l/h, DN 15
Article no.:
194001433120
List price
102.00 €
plus VAT
Valve actuators, supplied loose
valve actuator
Drive T, 24 V AC/DC, 2-point, normally closed, 0.5m connecting line-MB2, PVC, VA10N, 1 W, Protection class III, Protection class IP 54 Cable length 0.12 m, supplied separately, made of Polyamide
Suitable for: All units with electro-mechanical control configuration KaControl MC1, KaControl C1 in conjunction with 2-way valve or differential pressure-independent valve
Suitable for: All units with electro-mechanical control configuration KaControl MC1, KaControl C1 in conjunction with 2-way valve or differential pressure-independent valve
Article no.:
196TS0P240500AB
List price
65.00 €
plus VAT
valve actuator
Drive T, 230 V AC, 2-point, normally closed, 0.5m connecting line-MB2, PVC, VA10N, 1 W, Protection class II, Protection class IP 54 Cable length 0.12 m, supplied separately, made of Polyamide
Suitable for: All units with electro-mechanical control configuration in conjunction with 2-way valve or differential pressure-independent valve
Suitable for: All units with electro-mechanical control configuration in conjunction with 2-way valve or differential pressure-independent valve
Article no.:
196TS0P220500AB
List price
65.00 €
plus VAT
Valves and return shut-off valves
Pre-settable thermostatic valve
Axial, pre-settable, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 260 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 260 l/h, DN 15
Article no.:
194000346911
List price
39.00 €
plus VAT
Pre-settable thermostatic valve
Axial, pre-settable, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 920 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 920 l/h, DN 15
Article no.:
194000346914
List price
51.00 €
plus VAT
Pre-settable thermostatic valve
straight, pre-settable, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 260 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 260 l/h, DN 15
Article no.:
194000346909
List price
39.00 €
plus VAT
Pre-setting key
Once per project necessary.
Suitable for: pre-settable valve bodies, valve kits and convector connection kit
Suitable for: pre-settable valve bodies, valve kits and convector connection kit
Article no.:
194000346915
List price
7.00 €
plus VAT
Pre-setting set
Once per project necessary.
Suitable for: pre-settable valve bodies and valve kits with higher flow from 250 l/h
Suitable for: pre-settable valve bodies and valve kits with higher flow from 250 l/h
Article no.:
194000346916
List price
38.00 €
plus VAT
Return shut-off valve
2- and 4-pipe, Straight, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 610 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 610 l/h, DN 15
Article no.:
194000145952
List price
21.00 €
plus VAT
Return shut-off valve
2- and 4-pipe, angled, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 610 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 610 l/h, DN 15
Article no.:
194000145953
List price
21.00 €
plus VAT
Return shut-off valve
2- and 4-pipe, Straight, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 920 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 920 l/h, DN 15
Article no.:
194000145954
List price
34.00 €
plus VAT
Return shut-off valve
2- and 4-pipe, angled, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 920 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 920 l/h, DN 15
Article no.:
194000145955
List price
31.00 €
plus VAT

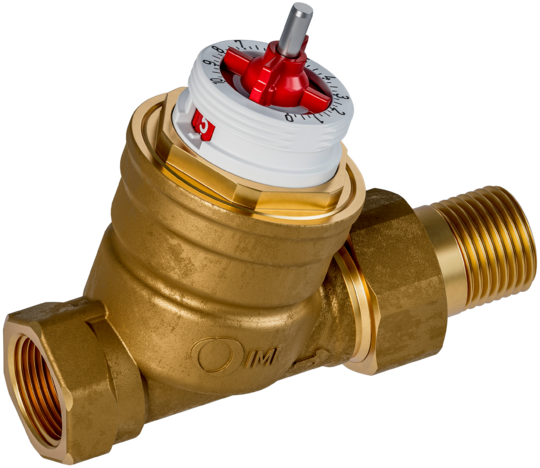

Differential pressure-independent thermostatic valve
Axial shape, differential pressure-dependent, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, Min. Flow volume 35 l/h, max. Flow volume 420 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, Min. Flow volume 35 l/h, max. Flow volume 420 l/h, DN 15
Article no.:
194000347914
List price
88.00 €
plus VAT
Differential pressure-independent thermostatic valve
Straight, differential pressure-independent, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, Min. Flow volume 35 l/h, max. Flow volume 420 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, Min. Flow volume 35 l/h, max. Flow volume 420 l/h, DN 15
Article no.:
194000347913
List price
88.00 €
plus VAT
Differential pressure-independent thermostatic valve
Straight, differential pressure-independent, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, Min. Flow volume 105 l/h, max. Flow volume 1050 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, Min. Flow volume 105 l/h, max. Flow volume 1050 l/h, DN 15
Article no.:
194000347915
List price
96.00 €
plus VAT
Pre-settable thermostatic valve
straight, pre-settable, Connection 1/2 inch, Max. operating pressure 10 bar, supplied separately
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 920 l/h, DN 15
Suitable for: Katherm NK, Katherm QK or Katherm HK, max. Flow volume 920 l/h, DN 15
Article no.:
194000346918
List price
41.00 €
plus VAT
Filter
Filter for air inlet
2- and 4-pipe, Replacement filter without frame, ISO Coarse 30% filter (G2)
Suitable for: Katherm HK 290 or Katherm HK 310 P, Length 1340 - 2180 mm
Suitable for: Katherm HK 290 or Katherm HK 310 P, Length 1340 - 2180 mm
Article no.:
143014349012
List price
28.00 €
plus VAT
Condensate tray/pump
fitting kit for natural condensate drain
supplied separately
Suitable for: Katherm HK
Suitable for: Katherm HK
Article no.:
194000143817
List price
31.00 €
plus VAT
fitting kit for natural condensate drain
factory-fitted
Suitable for: Katherm HK
Suitable for: Katherm HK
Article no.:
194000143818
List price
58.00 €
plus VAT
Connection kit for condensation pump
100 - 240 V AC, 6 W, Protection class IP 44, supplied separately
Suitable for: Katherm HK or Katherm HK P, Width 290 mm and 310 mm
Suitable for: Katherm HK or Katherm HK P, Width 290 mm and 310 mm
Article no.:
194000143840
List price
262.00 €
plus VAT
Connection kit for condensation pump
100 - 240 V AC, 6 W, Protection class IP 44, factory-fitted
Suitable for: Katherm HK or Katherm HK P, Width 290 mm and 310 mm
Suitable for: Katherm HK or Katherm HK P, Width 290 mm and 310 mm
Article no.:
194000143841
List price
376.00 €
plus VAT
Installation covers
Installation cover
to protect trench during installation, factory-fitted, grilles are packed separately
price per m
Suitable for: Katherm HK 290
price per m
Suitable for: Katherm HK 290
Article no.:
194000100290
List price
21.00 €
plus VAT
Downloads
Declarations/Certificates
Certificate ISO 9001, 14001, 50001
PDF
(116 kB)
EU Declaration of Conformity Katherm trench heating
PDF
(457 kB)
Digital EPD database Katherm HK E
Digital EPD database Katherm HK
EPD Katherm HK E
PDF
(1.6 MB)
EPD Katherm HK
PDF
(2.5 MB)
further product information
Products
PDF
(10.3 MB)
Trench Technology – For a comfortable room climate
PDF
(3.1 MB)
Convection and Radiation
PDF
(1.2 MB)
Kampmann hotel references
PDF
(6.2 MB)
Information sheet DIN EN 16430 for trench heaters
PDF
(683 kB)
Overview Katherm supply air versions
PDF
(4 MB)
Manuals
KaControl MC - Multi Connect
PDF
(1.3 MB)
Katherm HK 160/290, quick guide
PDF
(3.8 MB)
Katherm HK trench heating
PDF
(7.7 MB)
Katherm HK trench heating
PDF
(7.6 MB)
Katherm HK, brief instructions
PDF
(3.2 MB)
Technical catalogues
Katherm HK trench heating
PDF
(18 MB)
KaControl MC - Multi Connect
PDF
(2.2 MB)
Katherm HK trench heating
PDF
(17.3 MB)
BIM data (Building Information Modeling)
Kampmann Group BIM data
CAD-Drawings
Katherm HK, Kanalbreite 290 mm, Kanalhöhe 160 mm, 2-Leiter, Rostart Roll-Rost, Abmessungen [Inch], PDF
PDF
(445 kB)
Katherm HK, Kanalbreite 290 mm, Kanalhöhe 160 mm, 2-Leiter, Rostart Roll-Rost, Abmessungen [mm], PDF
PDF
(445 kB)
Katherm HK, Kanalbreite 290 mm, Kanalhöhe 160 mm, 2-Leiter, Rostart Roll-Rost, Abmessungen [mm], DWG
DWG
(1016 kB)
Katherm HK, Kanalbreite 290 mm, Kanalhöhe 160 mm, 2-Leiter, Rostart Roll-Rost, Abmessungen [Inch], DWG
DWG
(1020 kB)
