Diffusers

KSH

Article no.: 1KSH02Z1000E6C0SC00

Use the dropdown menus to quickly and simply adapt the figures to your requirements.

List price

153.00 €

plus VAT

Overview

The front of the KSH is easy to detach from the plenum box. The acoustic baffles can be simply removed through the neck of the plenum box without the need for tools. This means that the unit can be cleaned and maintained as far as the supply air and extract air spigots.

The front profiles of the KSH models are fitted with patented eccentric rollers. Eccentric rollers look attractive but also permit continuous adjustment between a horizontal and vertical air flow. All eccentric rollers are factory-adjusted. Subsequent correction is also possible with ease.

In the office itself, the ceiling does not need to be suspended. The offices are centrally fed with supply air from the suspended ceiling in the corridor, and extract air is extracted from them.

Depending on individual requirements, the KSH is available with two or three rows of slots.

The KSH features a high level of transmission losses, thereby minimising cross-talk acoustic transmission. This is one of the key influencing factors in ventilation planning, particularly in office buildings.

Sound power octave spectrum

The sound power is determined depending on the use according to DIN EN ISO 3741 (in the echo chamber), according to DIN EN ISO 3744 (in the low-reflective half-space) or according to DIN EN ISO 9614 (intensity method).

Oktave Spektrum

Accessories

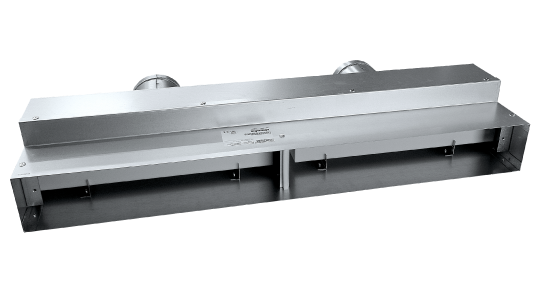

plenum box

Plenum box with construction depth 200mm

Supply air, Silencer, material classification B1, made of steel galvanised

Suitable for: Number of connecting pieces 2 piece(s)

Article no.: 1AKKSH02Z100010012520004209800

List price

212.00 €

plus VAT

Details

Plenum box with construction depth 225mm

Supply air, Silencer, material classification B1, made of steel galvanised

Suitable for: Number of connecting pieces 2 piece(s)

Article no.: 1AKKSH02Z100010012522504209800

List price

212.00 €

plus VAT

Details

Downloads

Declarations/Certificates

Certificate ISO 9001, 14001, 50001

PDF (116 kB)

Manuals

KSH combination diffuser

PDF (1.4 MB)

BIM data (Building Information Modeling)

Revit data set for combined air diffuser KSH 3 slots

RFA (420 kB)

Revit data set for combined air diffuser KSH 2 slots

RFA (416 kB)
