Control accessories KaControl

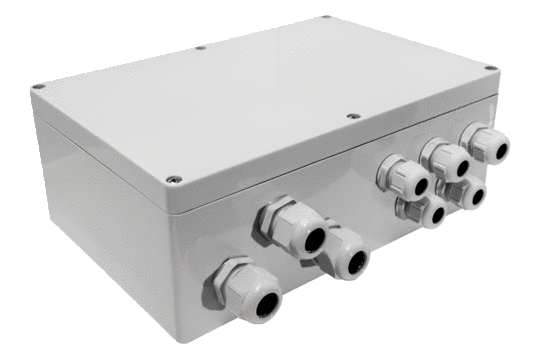

KaControl control electronics
Article no.:
196003231160
Dimensions:
240 mm x 190 mm x 90 mm
Weight:
0.669 kg
EAN:
4031845433513
supply voltage:
AC
List price
875.00 €
plus VAT
Overview
Recirculating air EC, in a wall-mounted housing
Suitable for: | all ProtecTor air curtains EC, 2 Units |
- Automatic control of up to 2 continuously variable EC-ProtecTor
- Control to room temperature
- Unit shut-down in the event of a fault with message via the control unit
- Sensor correction for room sensors and contact sensors
- Test process to check inputs and outputs
- RS485 (Modbus, CANbus, BACnet MS/TP)
- TLAN interface for 1 master and +5 slave broadcast networks
- Slot for optional interface cards
- Ethernet (BACnet IP) for integration into BMS or DDC systems
- Parameter programming key interface
- Digital inputs
- Digital output for the control of an actuator for heating 24 V DC Open/Close
- Digital output for the control of an actuator for cooling 24 V DC Open/Close
- Multifunctional inputs for the connection of temperature sensors and external potential-free
