Fan Coils
KaCool D HC
Article no.:
525112713100
List price
6,795.00 €
plus VAT
Overview
- Continuously variable EC single-phase radial fan
- Excellent efficiency through the use of GreenTech EC technology
- Motor protection class IP 54
- Compact construction and simple and compliant to clean
- Quiet operation thanks to optimised airflow guidance
- High-output copper/aluminium heat exchanger
- With high heat and cooling outputs
- Optimised in terms of air flow
- Visible from all sides and easy to clean
- Electrical connection freely accessible outside of the unit through the revision opening or suspended ceiling
- Including built-in differential pressure switches for filter monitoring
- Hygiene-compliant with DIN 1946-4 and VDI 6022
- Unit can be cleaned practically and simply without the need for a tool
- Disinfectant-resistant throughout
- Filter can be removed and replaced along magnetic rails
- The panel is foldable and fully coated in RAL 9016
- The exterior of condensate tray is fully vapour-diffusion-tight insulated
- A pre-assembled and wired condensate pump is fitted to the unit as standard
- Tray with gradient for continuous condensate discharge
- The wall-mounted Climate controllers feature a high-quality glass finish and capacitive buttons.
- A room temperature sensor is also permanently built in.
- If required, multiple messages on, for example, condensate, filter quality or error messages, can be evaluated via a modbus interface.
- A connection to the building management system for filter messages is also possible with many types.
Accessories
Control accessories electromechanical 230 V
Climate Controller
Heating/Cooling, 2- and 4-pipe, Without Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148941
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148941
List price
433.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, Without Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148942
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148942
List price
433.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9010 pure white, Type 148943
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148943
List price
463.00 €
plus VAT
Climate Controller
Heating/Cooling, 2- and 4-pipe, with Modbus, only with valves/valve kits, continuously variable, with LCD operating menu and integrated timer program, 230 V AC, Open/Closed, Surface-mounted, Protection class IP 30, Temperature setting range 0 - 50 °C, Colour similar to RAL 9004 signal black, Type 148944
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Suitable for: EC units electromechanical, 4 Katherm HK Trench Technology, 4 KaCool D AF, KaCool W, Venkon or KaDeck Fan Coils, 4 Ultra Allround Unit Heaters
Article no.:
196000148944
List price
463.00 €
plus VAT
Valve kits
2-way valve kit
2-pipe, with lockable return shut-off valve, 2-way valve, pre-settable, factory pressure-tested and fitted to the basic unit
Valve kit for Kampmann KaCool D HC cassette units, factory-fitted.
Suitable for: Water connections left, DN 15
Valve kit for Kampmann KaCool D HC cassette units, factory-fitted.
Suitable for: Water connections left, DN 15
Article no.:
525122002000
List price
146.00 €
plus VAT
Differential pressure-independent valve kit
2-pipe, for high flow rates, factory pressure-tested and fitted to the basic unit
Valve kit for Kampmann KaCool D HC cassette units, factory-fitted.
Suitable for: Water connections left, min. flow volume 150 l/h, max. flow volume 1050 l/h, DN 15
Valve kit for Kampmann KaCool D HC cassette units, factory-fitted.
Suitable for: Water connections left, min. flow volume 150 l/h, max. flow volume 1050 l/h, DN 15
Article no.:
525122001000
List price
312.00 €
plus VAT
Valve actuators
Thermoelectric actuator
2-pipe, 1x actuator Open/Close, 230 V 50 Hz, factory-fitted and wired to the basic unit
Suitable for: KaCool D HC ceiling cassettes, Fan Coils
Suitable for: KaCool D HC ceiling cassettes, Fan Coils
Article no.:
525142002300
List price
78.00 €
plus VAT
Filter

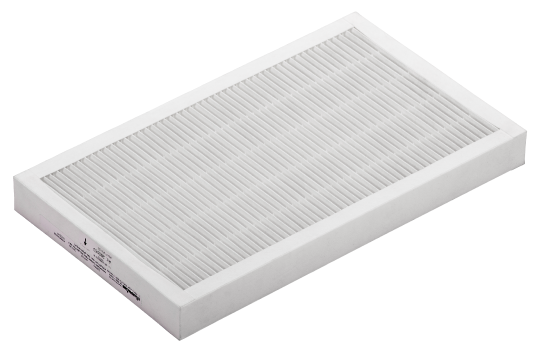

Filter
cassette filter as a replacement filter, for air inlet, Filter ePM1>50% (F7), 1 set = 1 piece(s)
Suitable for: Fan Coils
Suitable for: Fan Coils
Article no.:
525150700010
List price
75.00 €
plus VAT

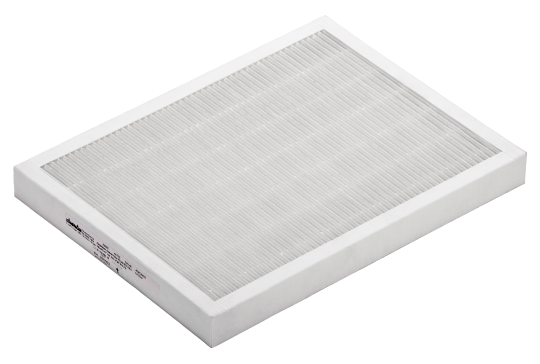

Filter
Cassette filter (particulate filter) as a replacement filter for KaCool D HC units. Hepa 14 class. Removes 99.995 % of all aerosols, germs, viruses and bacteria from the air., for air outlet, filter class H14, 1 set = 1 piece(s)
Suitable for: Fan Coils
Suitable for: Fan Coils
Article no.:
525150013020
List price
185.00 €
plus VAT
Additional colours
surcharge for RAL standard colour
Price per unit.
Suitable for: KaCool D HC Fan Coils
Suitable for: KaCool D HC Fan Coils
Article no.:
525007010011
List price
31.00 €
plus VAT
surcharge for RAL colour of your choice
Minimum quantity = 7 units per order and colour, The number of units below the minimum quantity must be requested and calculated separately.
Price per unit.
Suitable for: KaCool D HC Fan Coils
Price per unit.
Suitable for: KaCool D HC Fan Coils
Article no.:
525007010021
List price
125.00 €
plus VAT
surcharge for change of colour
of the powder-coating to the colour version quoted., The surcharge includes the conversion and cleaning of the powder-coating to the requested colour and will be charged once per project and call-off order.
Suitable for: KaCool D HC Fan Coils
Suitable for: KaCool D HC Fan Coils
Article no.:
525007010010
List price
415.00 €
plus VAT
